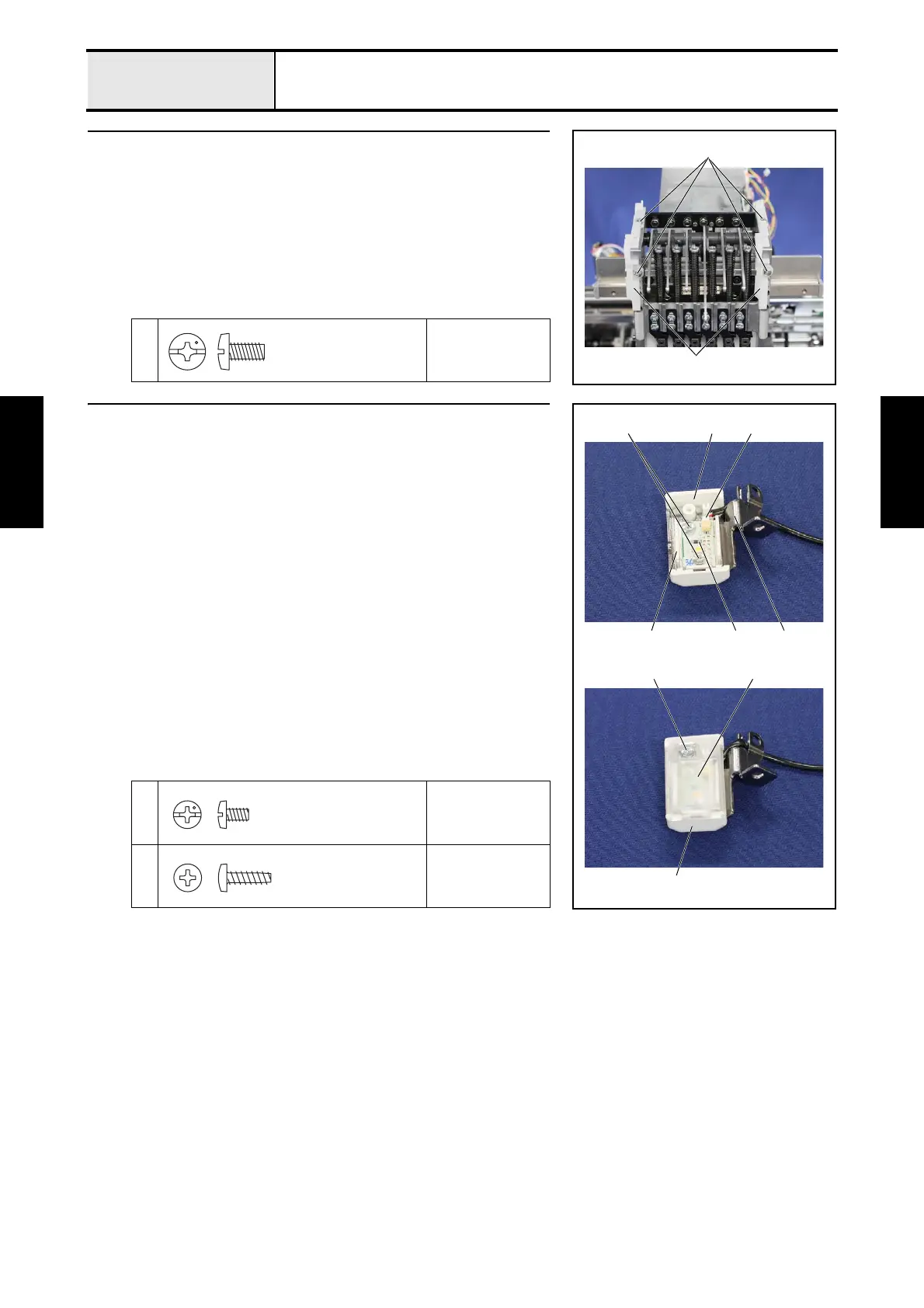

Brother PR655 - LED Cord Guide Attachment

3 - 59
Needle bar unit
Main unit
Assembly Assembly
13 LED cord guide attachment
1. Attach the 2 LED cord guides 1 with the 4 screws 1.
1
Torque
0.78 — 1.18 N-m
1
1
Screw, Bind
M4X8
14 LED unit right assy assembly
1. Set the LED base plate right 1, the LED light base 2 and the LED PCB
supply assy 3 to the LED upper cover 4, and then secure them with the 2
screws 1.
2. Connect the connector of the LED wire assy LED 5 to the LED PCB
supply assy 3.
3. Attach the LED lower cover right 6 to the LED upper cover 4 with the
screw 2.
1
Torque
0.59 — 0.78 N-m
2
Torque
0.59 — 0.78 N-m
2
4
6
1
1
5
32
4
Screw, Bind
M3X5
Taptite, Bind B
M3X10
