Brother PR655 Service Manual

3 - 55
Main unit
Needle bar unit
Assembly Assembly
8 Thread take-up lever assembly

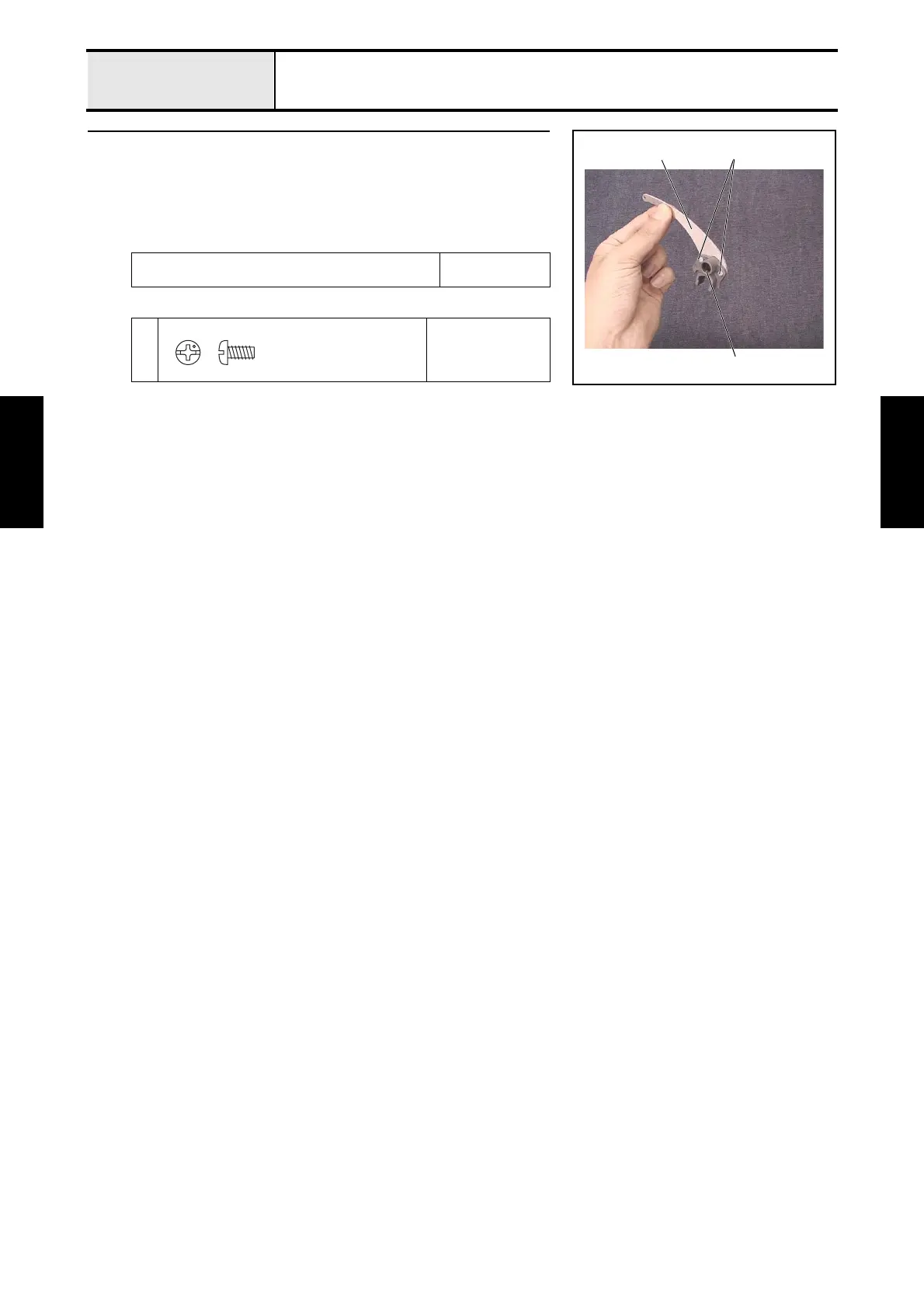

1. Attach the thread take-up boss 1 to the thread take-up lever 2 with the 2
screws 1. (6 sets)
*Key point
• Apply ThreeBond 1401 to the screw 1 and then tighten it.
Apply ThreeBond 1401.
Size of a grain of
rice
1
Torque
0.59 — 0.78 N-m
2 1
1
Screw, Pan
M3X6
