Brother PR655 Service Manual

3 - 15
Thread tension unit
Main unit
Assembly Assembly

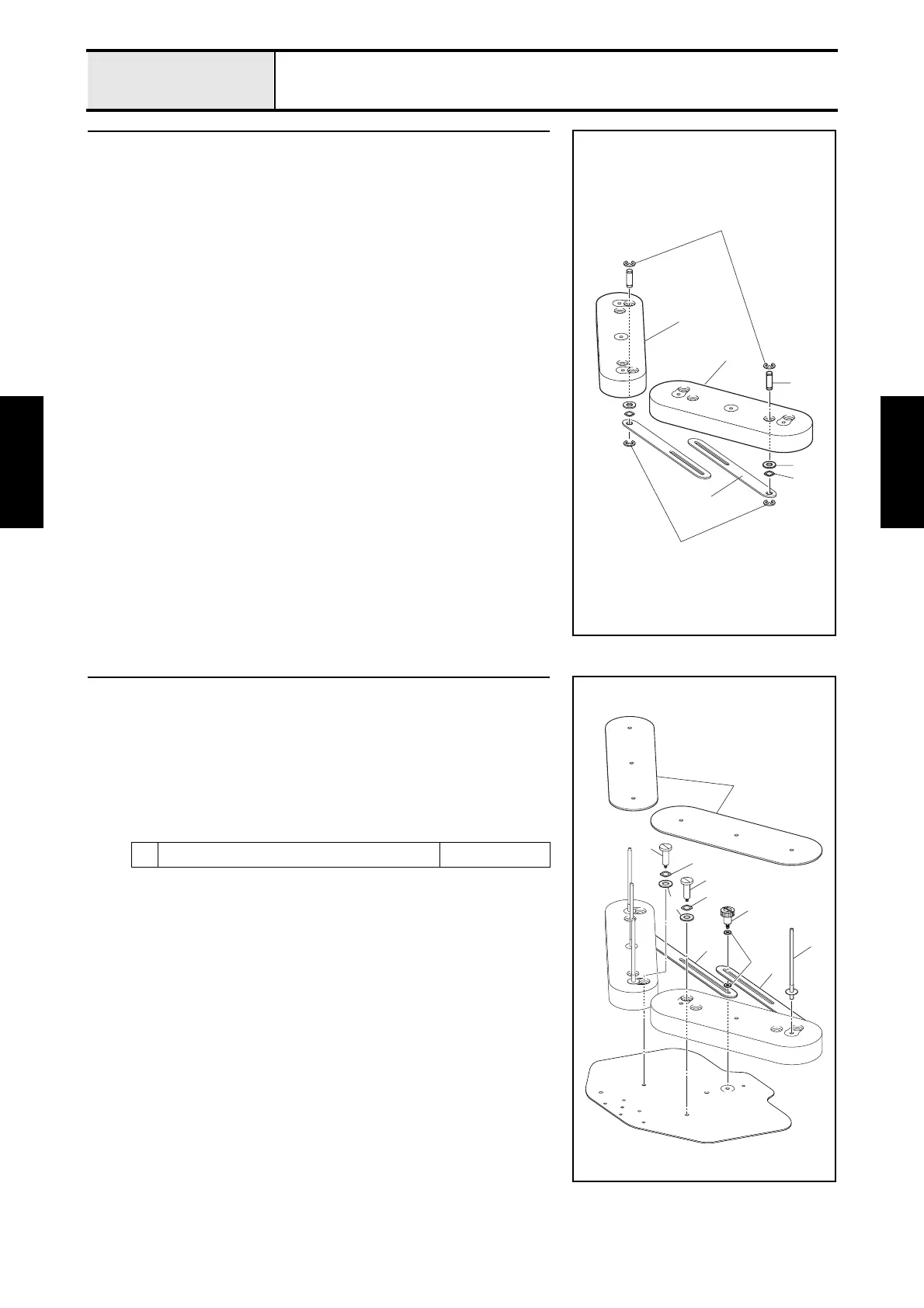

4 Spool stand frame assembly (Step 1)
1. Attach the retaining ring E8 to the spool stand stud 1. (2 sets)
2. Attach the spool stand stud 1 to spool stand frame R 2, attach the plain
washer (S10) 3, spring washer 4, and spool stand link 5 to the tip of the
spool stand stud 1, and then attach the retaining ring E8.
3. Attach the spool stand stud 1 to spool stand frame L 6, attach the plain
washer (S10) 3, spring washer 4, and spool stand link 5 to the tip of the
spool stand stud 1, and then attach the retaining ring E8.
6
2
1
3
4
5
Retaining ring E8
Retaining ring E8
5 Spool stand frame assembly (Step 2)
1. Attach spool stand frames L and R to the spool stand base with the 2 stud
screws 1, 2 spring washers 2, and 2 plain washers (S10) 3.
2. Put spool stand link R 4, the washer 5, spool stand link L 6, and the
other washer 5 together, and then attach them to the spool stand base with
the thumb bolt (M4L) 7.
3. Attach the 6 spool pins 8 and the 2 sponges 9 to spool stand frames R
and L.
1
Tightening torque of stud screw 1.18 - 1.57 N-m
9
3
2
2
1
1
5
4
8
7
6
