Brother PR655 - LED Unit Left Assy Assembly

3 - 60
Needle bar unit
Main unit
Assembly Assembly
15 LED unit left assy assembly

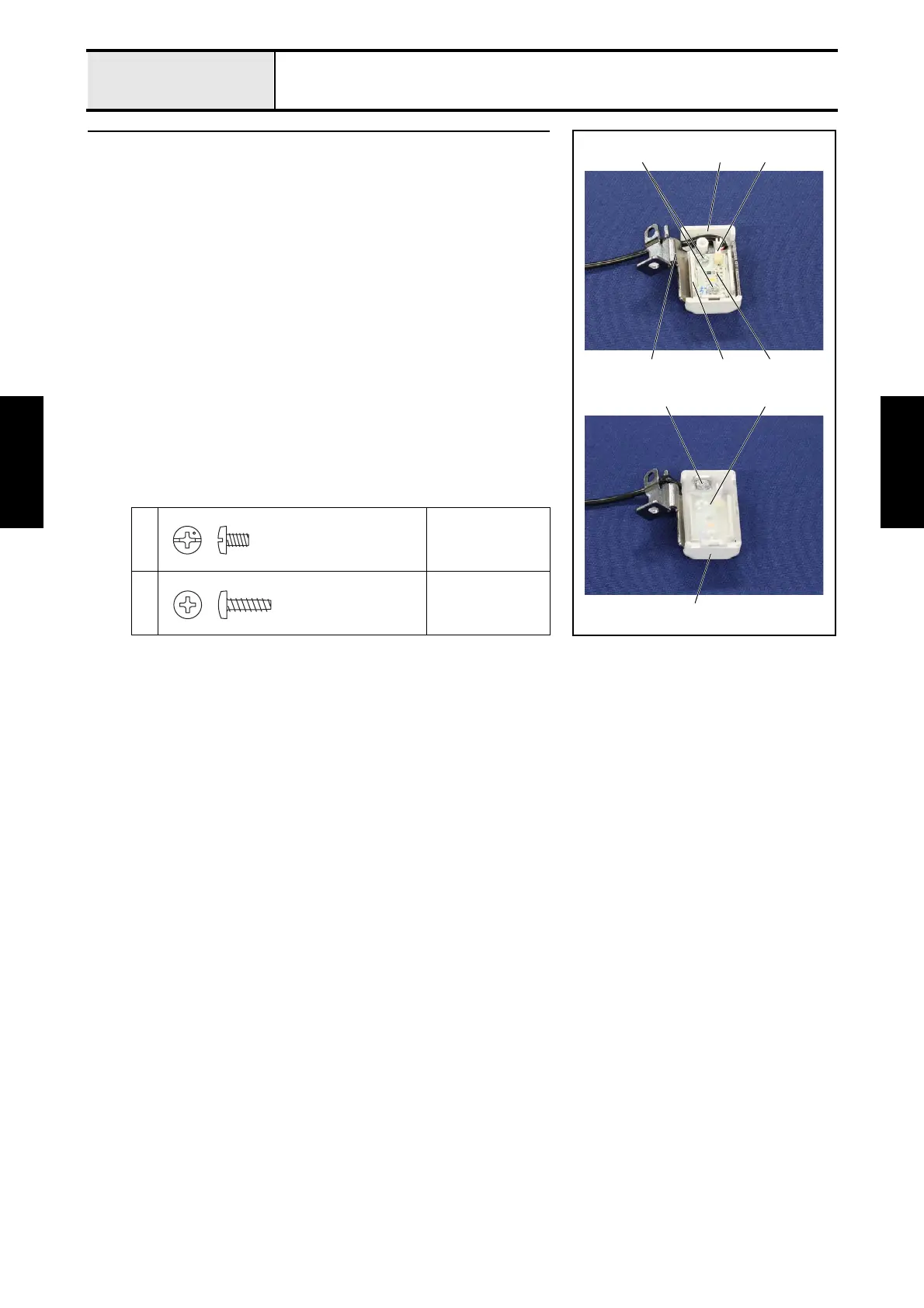

1. Set the LED base plate left 1, the LED light base 2 and the LED PCB
supply assy 3 to the LED upper cover 4, and then secure them with the 2
screws 1.
2. Connect the connector of the LED wire assy LED 5 to the LED PCB
supply assy 3.
3. Attach the LED lower cover left 6 to the LED upper cover 4 with the
screw 2.
1
Torque
0.59 — 0.78 N-m
2
Torque
0.59 — 0.78 N-m
2 6
3
1
5
21
4
4
Screw, Bind
M3X5
Taptite, Bind B
M3X10
