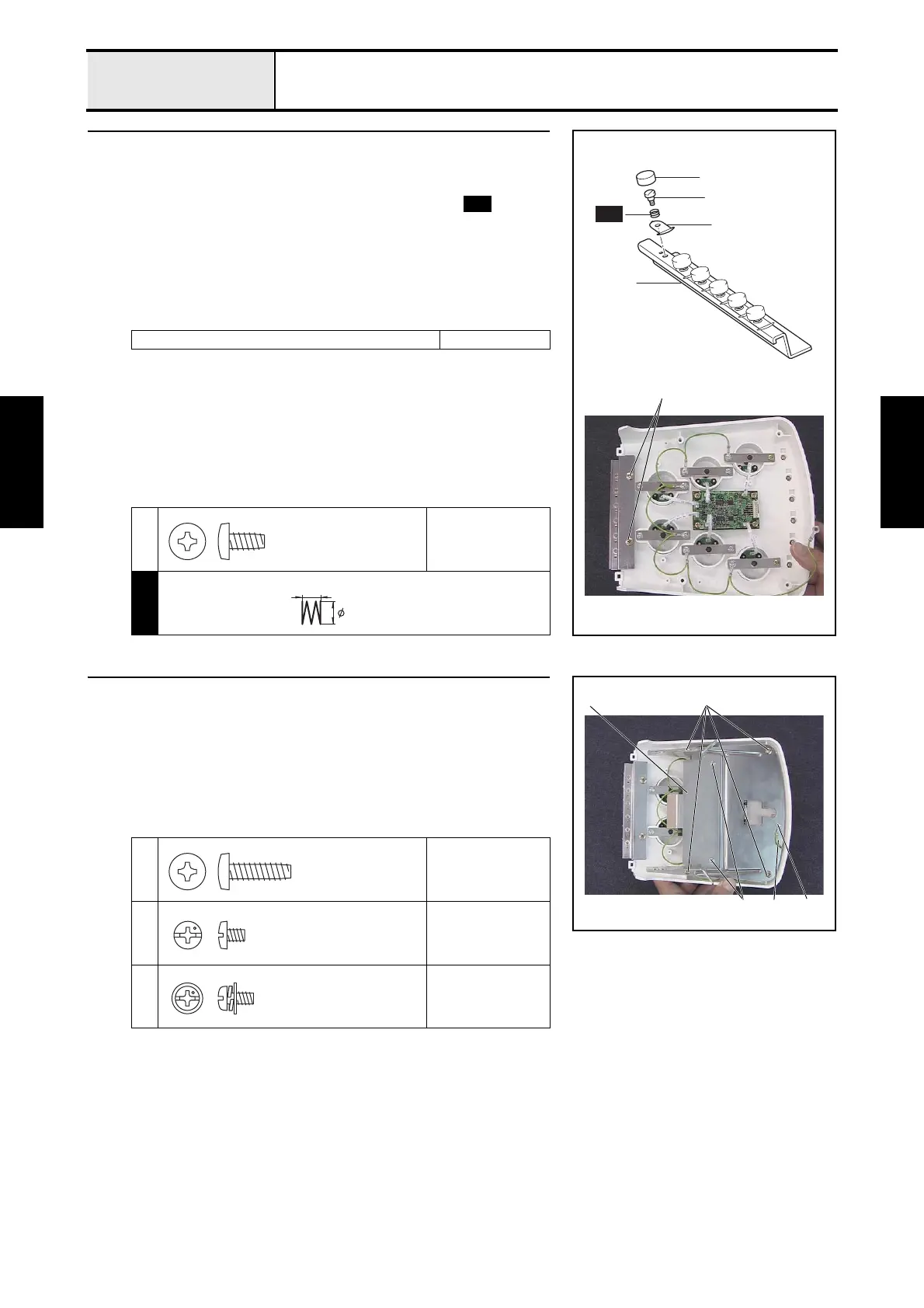

Brother PR655 Service Manual

3 - 19
Thread tension unit
Main unit
Assembly Assembly
11 Inner thread eyelet base attachment
1. Attach the thread guide tension plate 2 to the inner thread eyelet base 1.
(6 locations)
2. Thread the thread guide tension axis 3 through the spring , and then
secure the thread guide tension axis 3 to the inner thread eyelet base 1
with the screw. (6 locations)
3. Attach the tension axis cap 4 to the thread guide tension axis 3. (6
locations)
4. Attach the inner thread eyelet base assembly from the tension base
assembly with the 2 screws 1.
Tightening torque of thread guide tension axis 0.59 - 0.78 N-m
1
Torque
0.39 — 0.78 N-m
S52
4
3
2
1
S52
1
S52
Taptite, Bind B
M4X8
BOBBIN WINDER GUIDE COMPRESSION
X56456***
5
4.3
12 Tension base bracket attachment
1. Attach the tension base bracket to the tension base assembly with the 4
screws 1.
2. Attach the bracket cover 1 to the tension base bracket with the 2 screws
2.
3. Attach the head grounding wire 2 to the tension base assembly with the
screw 3.
1
Torque
0.78 — 1.18 N-m
2
Torque
0.78 — 1.18 N-m
3
Torque
0.78 — 1.18 N-m
2
1
1
32
Taptite, Bind B
M4X14
Screw, Bind
M3X4
Screw, Pan (S/P washer)
M3X6

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
