Brother PR655 Service Manual

2 - 39
Main unit
Thread wiper unit
Disassembly Disassembly

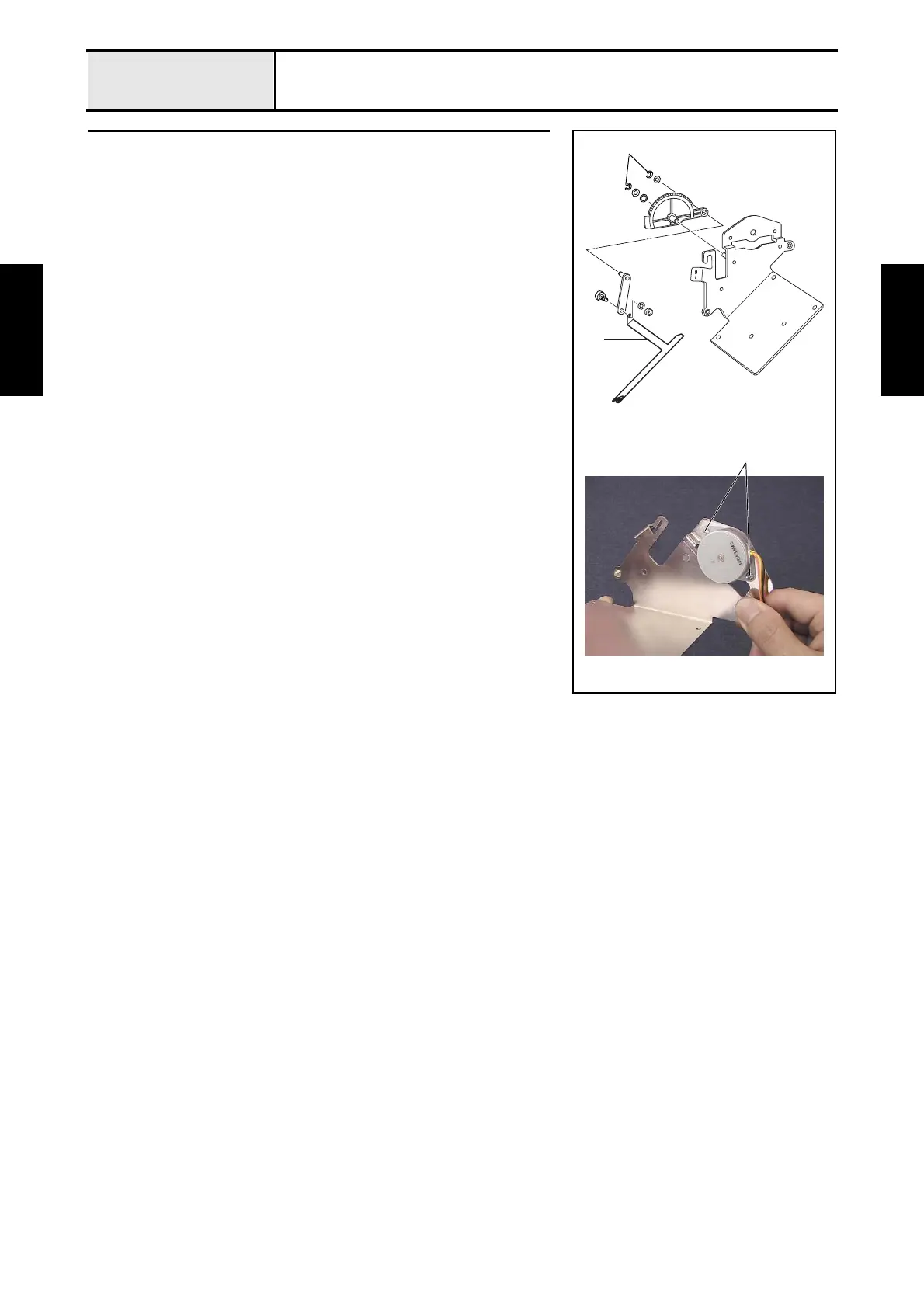

7 Wiper set disassembly
1. Remove the nut (3, M4), spring washer (2-4), and wiper shoulder screw,
and then remove the wiper hook 1.
2. Remove the retaining ring E4, plain washer (M6), and washer, and then
remove the wiper lever assembly.
3. Remove the retaining ring E4 and plain washer (M5), and then remove the
wiper link assembly from the wiper lever.
4. Remove the 2 screws 1, and then remove the wiper motor assembly.
1
1
Retaining rings E4

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
