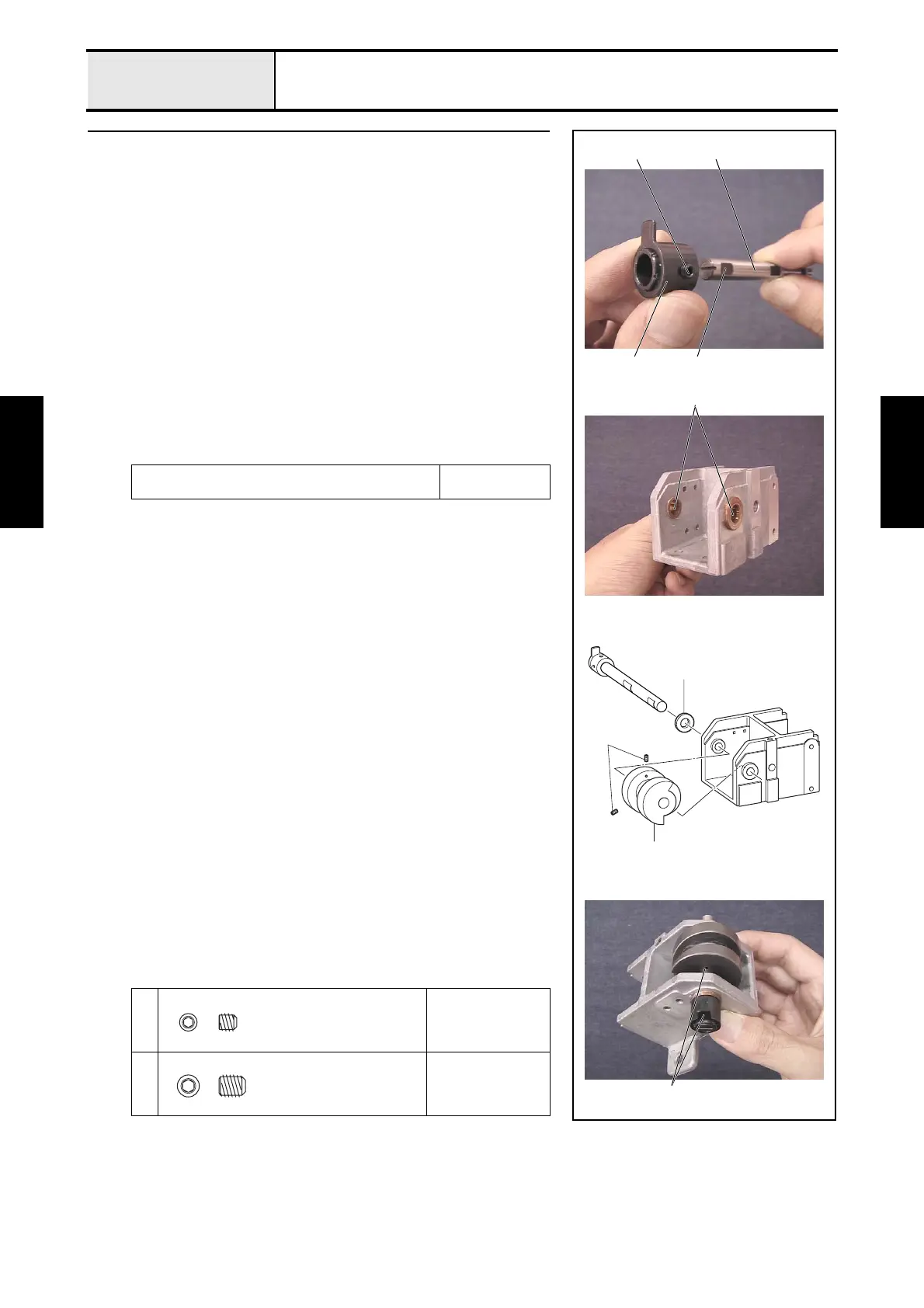

Brother PR655 Service Manual

3 - 67
Main unit
Needle bar change unit
Assembly Assembly
1 Change box assembly (Step 1)
1. Attach the C stop position dog 1 to the change camshaft 2 with the 2
screws 1.
*Key point
• Align the change camshaft's end face (grooved) with the C
stop position dog's end face.
• Align the D-cut face 3 on the change camshaft with the screw
hole positioned 90-degrees to the right when the C stop
position dog is at the top.
2. Apply MOLYKOTE EM-30L to the 2 shaft holes 4 on the change box
assembly.
3. Attach the change camshaft assembly, thrust washer 5, and change cam
6 to the change box assembly, and then secure the change cam with the 2
screws 2.
*Key point
• Align the C stop position dog with the mark 7 on the change
cam.
Apply MOLYKOTE EM-30L to the shaft holes on the
change box assembly.
Size of a grain of
rice
1
Torque
0.78 — 1.18 N-m
2
Torque
1.18 — 1.57 N-m
5
6
2
7
1
4
2
1 3
Set Screw, Socket (CP
)
M4X4
Set Screw, Socket (CP
)
M5X6

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
