Brother PR655 Service Manual

3 - 28
Power unit
Main unit
Assembly Assembly

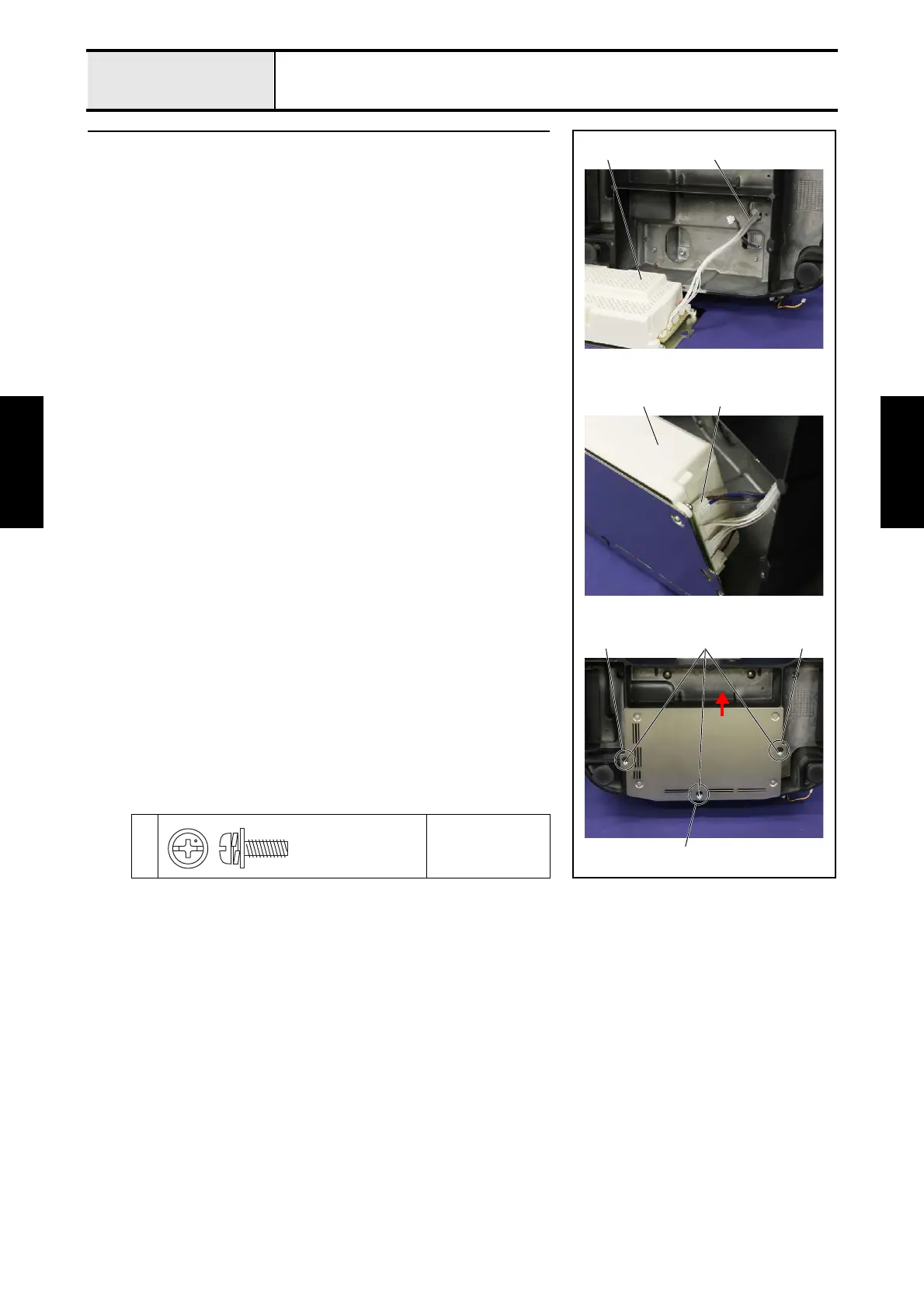

2 Power supply unit attachment
1. Tighten the 3 screws 1 temporarily.
2. Insert the lead wire 1 of the power supply unit 2 into the hole of the arm
bed.
3. Connect the connector of the power switch assy 3 to the power supply
PCB assy.
4. Align the attachment parts 4, 5 and 6 into the 3 screws 1, and then
slide the power supply unit 2 to the direction of the arrow.
5. Fully tighten the 3 screws 1.
1
Torque
1.18 — 1.57 N-m
2 1
2 3
1
6
4 5
Screw, Pan (S/P washer)
M4X10
