Brother PR655 Service Manual

3 - 23
Main unit
Thread cut unit
Assembly Assembly

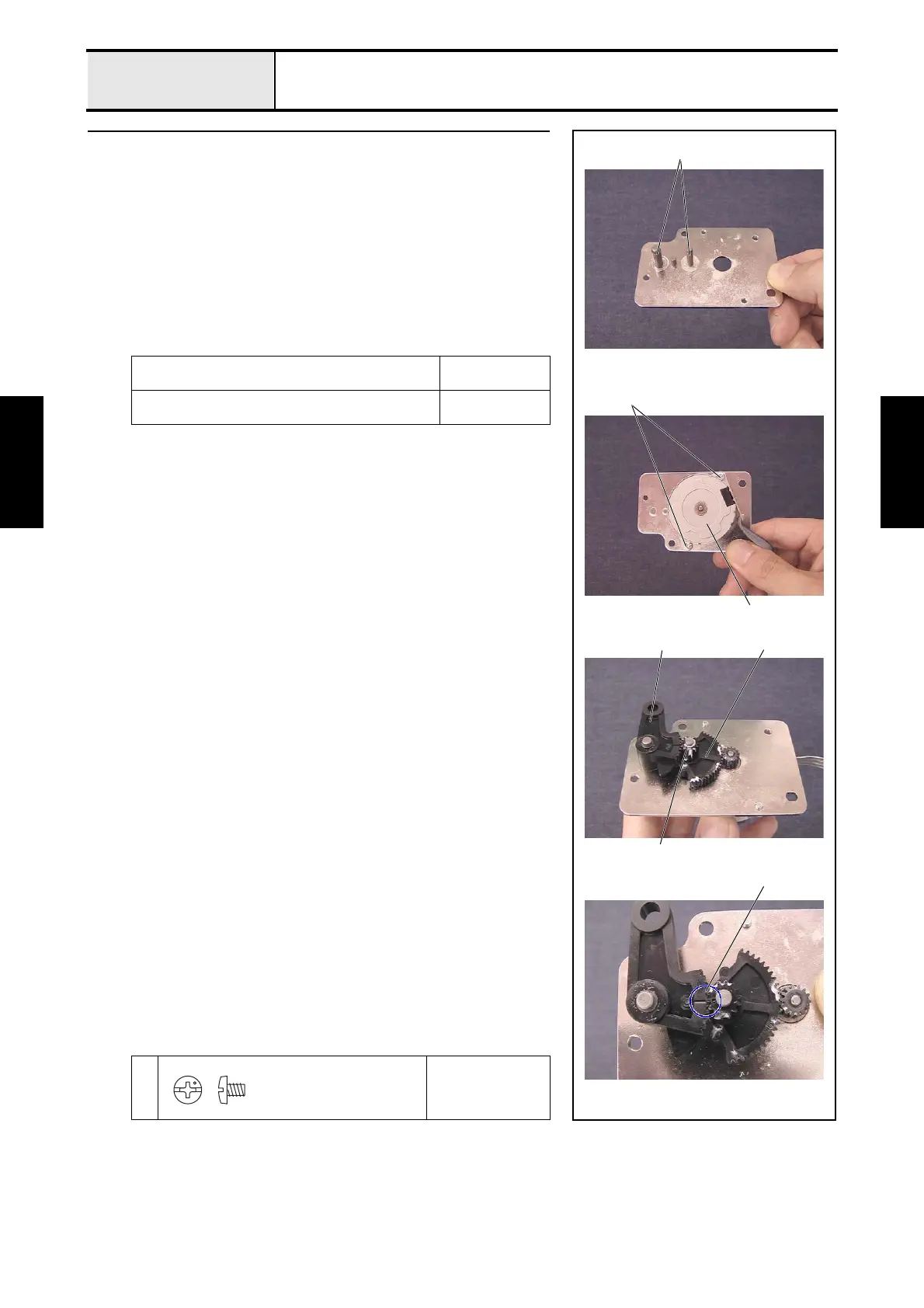

1 Cutter unit assembly (Step 1)
1. Apply MOLYKOTE EM-30L to the CT motor bracket assembly's shaft 1.
2. Attach the thread cutter motor assembly 2 to the CT motor bracket
assembly with the 2 screws 1.
3. Attach the initial gear 3 to the motor bracket assembly's shaft, and then
attach the retaining ring E2.
4. Attach the lever gear 4 to the motor bracket assembly's shaft, and then
apply MOLYKOTE EM-30L to the gear.
*Key point
• Align the marking 5 on the lever gear with the marking on the
initial gear.
Apply MOLYKOTE EM-30L to the CT motor bracket
assembly's shaft.
Size of a grain of
rice
Apply MOLYKOTE EM-30L to the lever gear.
Size of a grain of
rice
1
Torque
0.78 — 1.18 N-m
1
2
43
Retaining ring E2
1
5
Screw, Bind
M3X4

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
