Brother PR655 Service Manual

2 - 42

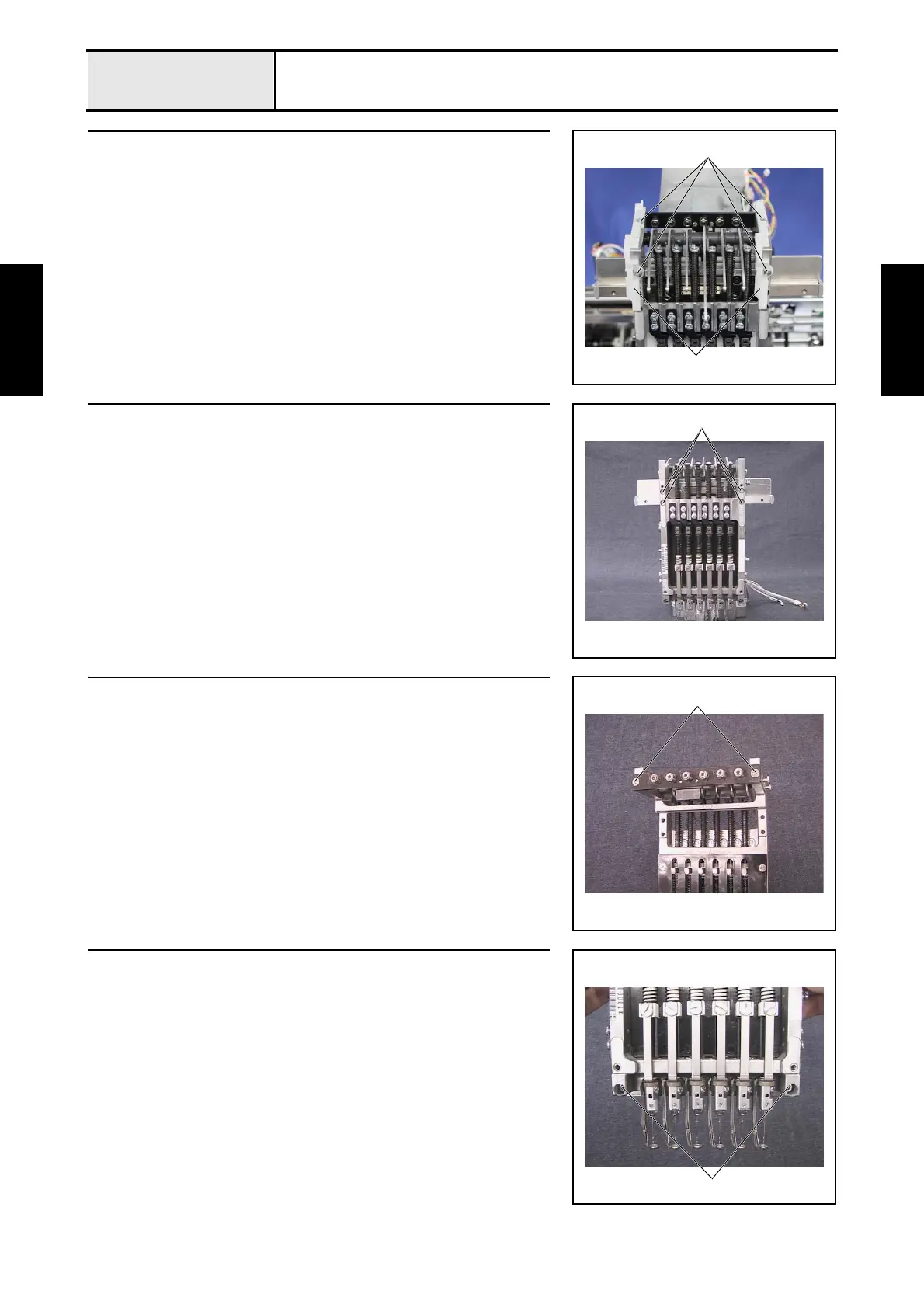

Needle bar unit
Main unit
Disassembly Disassembly
3 LED cord guide removal
1. Remove the 4 screws 1, and then remove the 2 LED cord guides 1.
1
1
4 Needle bar case final assembly removal
1. Remove the 4 screws 1, and then remove the needle bar case assembly.
1
5 Change roller base assembly removal
1. Remove the 2 screws 1, and then remove the change roller base assembly.
1
6 Case guide D removal
1. Remove the 2 screws 1, and then remove the case guide D.
1

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
