Brother PR655 Service Manual

3 - 16
Thread tension unit
Main unit
Assembly Assembly

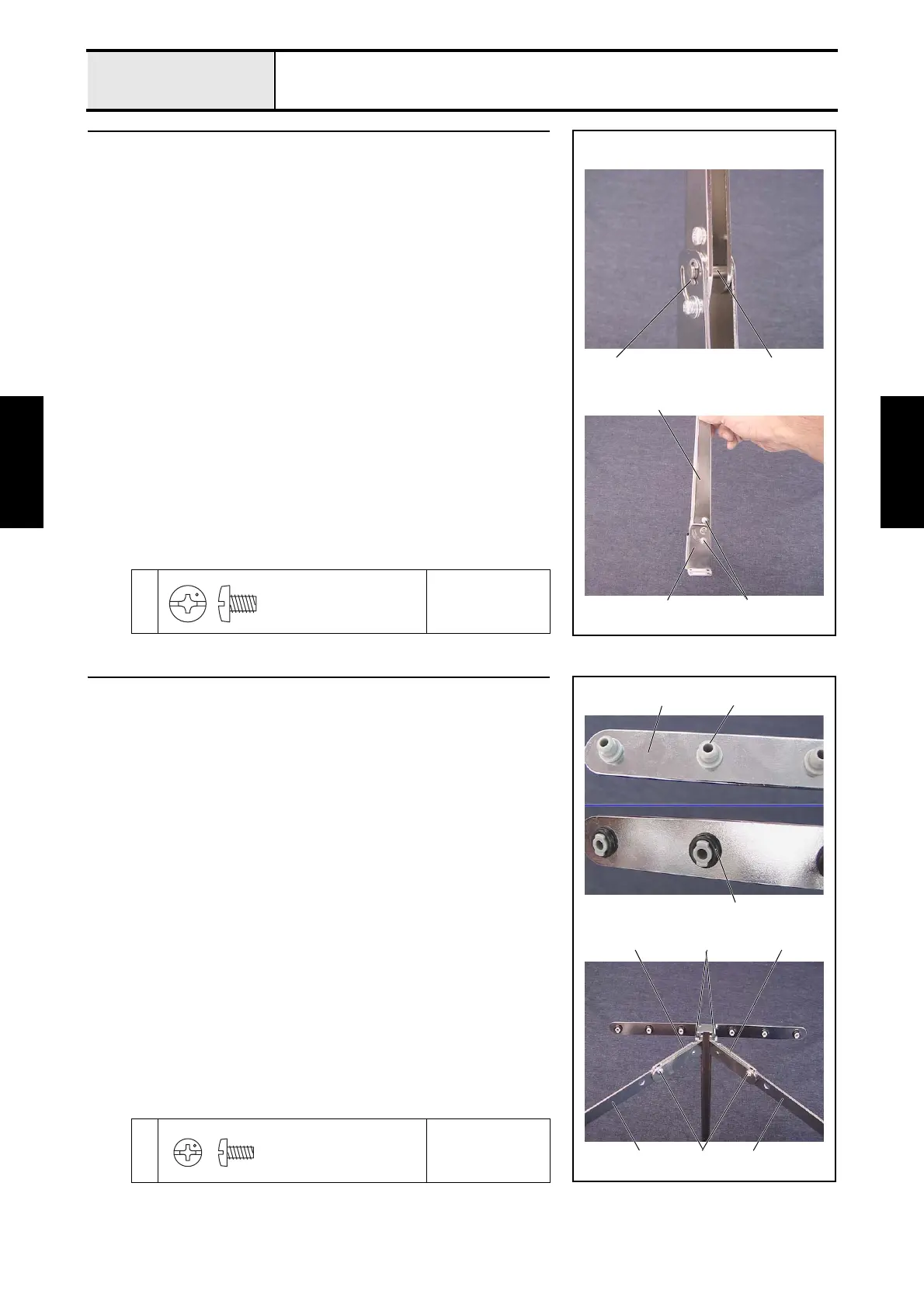

6 Antenna assembly (Step 1)
1. Attach the retaining ring E5 to the antenna shaft 1.
2. Attach the antenna C assembly 3 to antenna D 2, thread the antenna shaft
assembly through them, and then attach the retaining ring E5.
3. Secure the antenna C assembly 3 with the screws 1.
1
Torque
1.18 — 1.57 N-m
Retaining ring E5 1
1
3
2
Screw, Bind
M4X6
7 Antenna assembly (Step 2)
1. Attach pipe bush A 2 to antenna E 1, and then attach the O-ring (P5) 3
to the tip of pipe bush A. (6 locations)
*Key point
• Turn pipe bush A 90 degrees after it has been attached to
antenna E.
2. Attach the 2 antennas A 4, 2 antennas B 5, and the antenna E assembly
to the antenna C assembly with the 4 screws 1.
*Key point
• Tighten the antenna E assembly together with antenna A.
1
Torque
0.78 — 1.18 N-m
1 2
3
1
1
5 5
4 4
Screw, Bind
M3X6

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
