Brother PR655 Service Manual

3 - 58
Needle bar unit
Main unit
Assembly Assembly

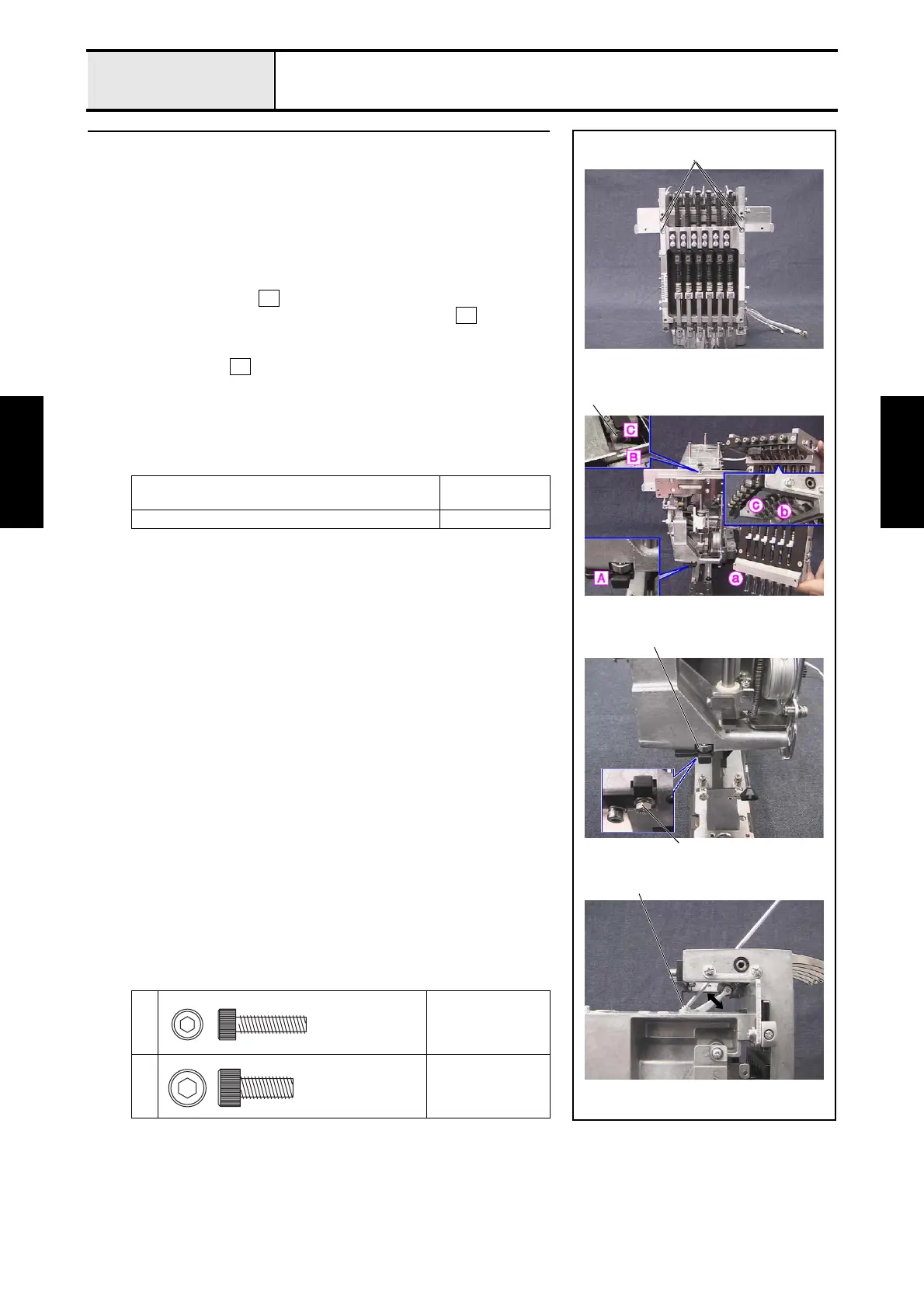

12 Needle bar case final assembly attachment
1. Rotate the pulley until the base line on the pulley is at the top.
2. Apply MOLYKOTE EM-30L to the roller 1 of the thread take-up
differential lever.
3. Attach the needle bar case final assembly to the case bracket assembly with
the 4 screws 1.
*Key point
• Align the thread take-up boss b on the thread take-up lever
assembly with on the case guide UL assembly, and then
align the thread take-up boss c with the roller on the
thread take-up differential lever.
• Align the case guide D a with the case positioning plate
assembly
4. Move the case positioning shaft assy 2 on the case positioning plate
assembly toward you, and firmly tighten the nut (2, M4) 3.
5. Adjust the vertical position of the thread take-up differential lever so that
the needle bar case final assembly lightly moves right and left. Firmly
tighten the screw 2.
Apply MOLYKOTE EM-30L to the roller of the thread
take-up differential lever.
Size of a grain of
rice
Tightening torque of nut (2, M4): 1.18 - 1.57 N-m
1
Torque
1.18 — 1.57 N-m
2
Torque
2.94 — 3.43 N-m
1
1
2
3
2
B
C
A
Bolt, Socket
M4X16
Bolt, Socket
M5X12

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
