Brother PR655 - Bed Cover Attachment

3 - 105
Main unit
Main unit
Assembly Assembly

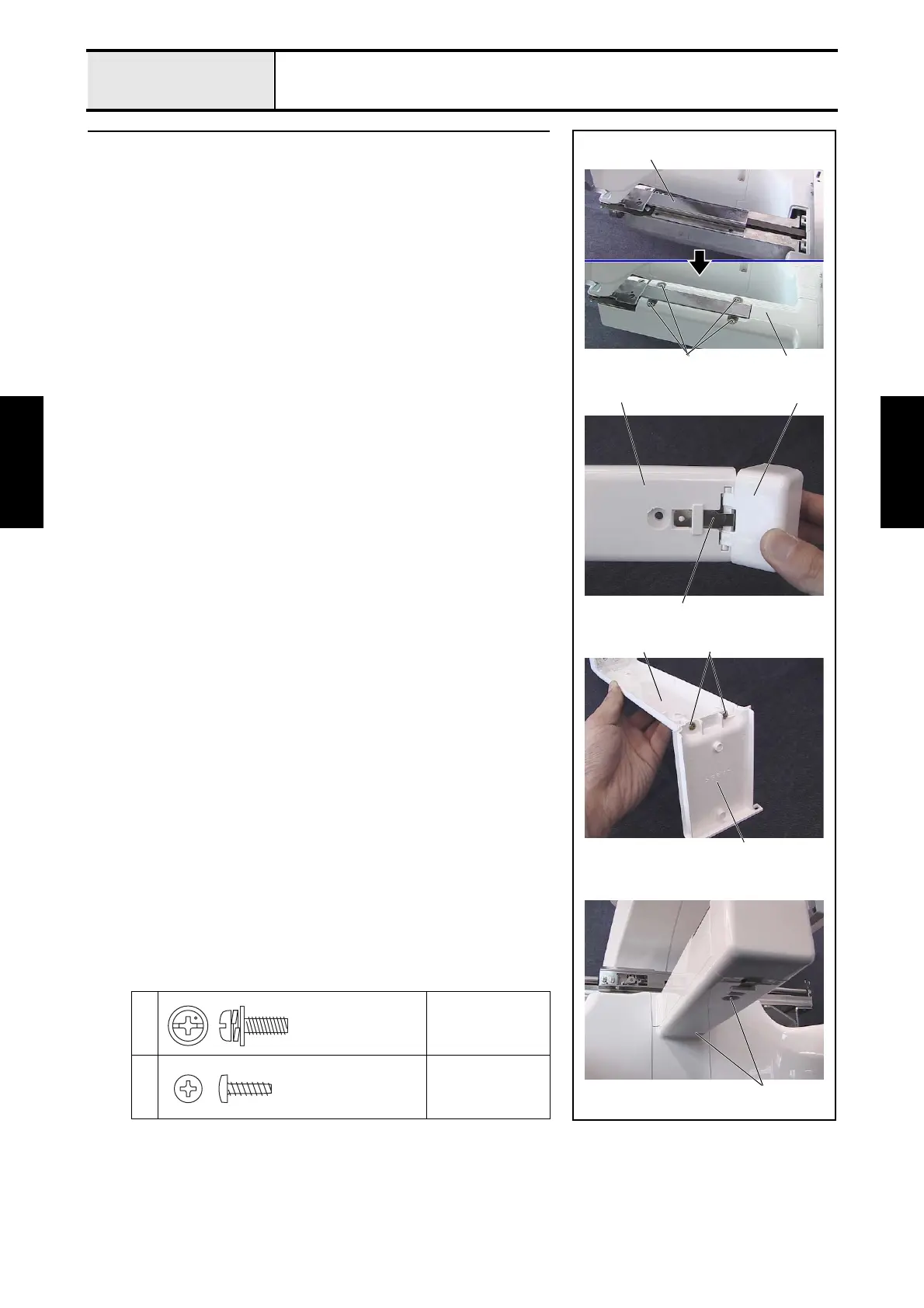

19 Bed cover attachment
1. Attach the bed cover 1 and the bed cover top 2 to the arm bed with the 4
screws 1.
2. Attach the spring 4 and the rotary hook cover 5 to the bed cover bottom
assembly 3.
3. Attach the bed cover lid 6 to the bed cover bottom assembly 3 with the 2
screws 2.
4. Attach the bed cover bottom assembly 3 to the arm bed with the 2 screws
3.
1
3
Torque
0.78 — 1.18 N-m
2
Torque
0.39 — 0.78 N-m
2
4
1
1
35
6
3
2
3
Screw, Pan (S/P washer)
M4X10
Taptite, Bind B
M3X10
