Brother PR655 Service Manual

3 - 8

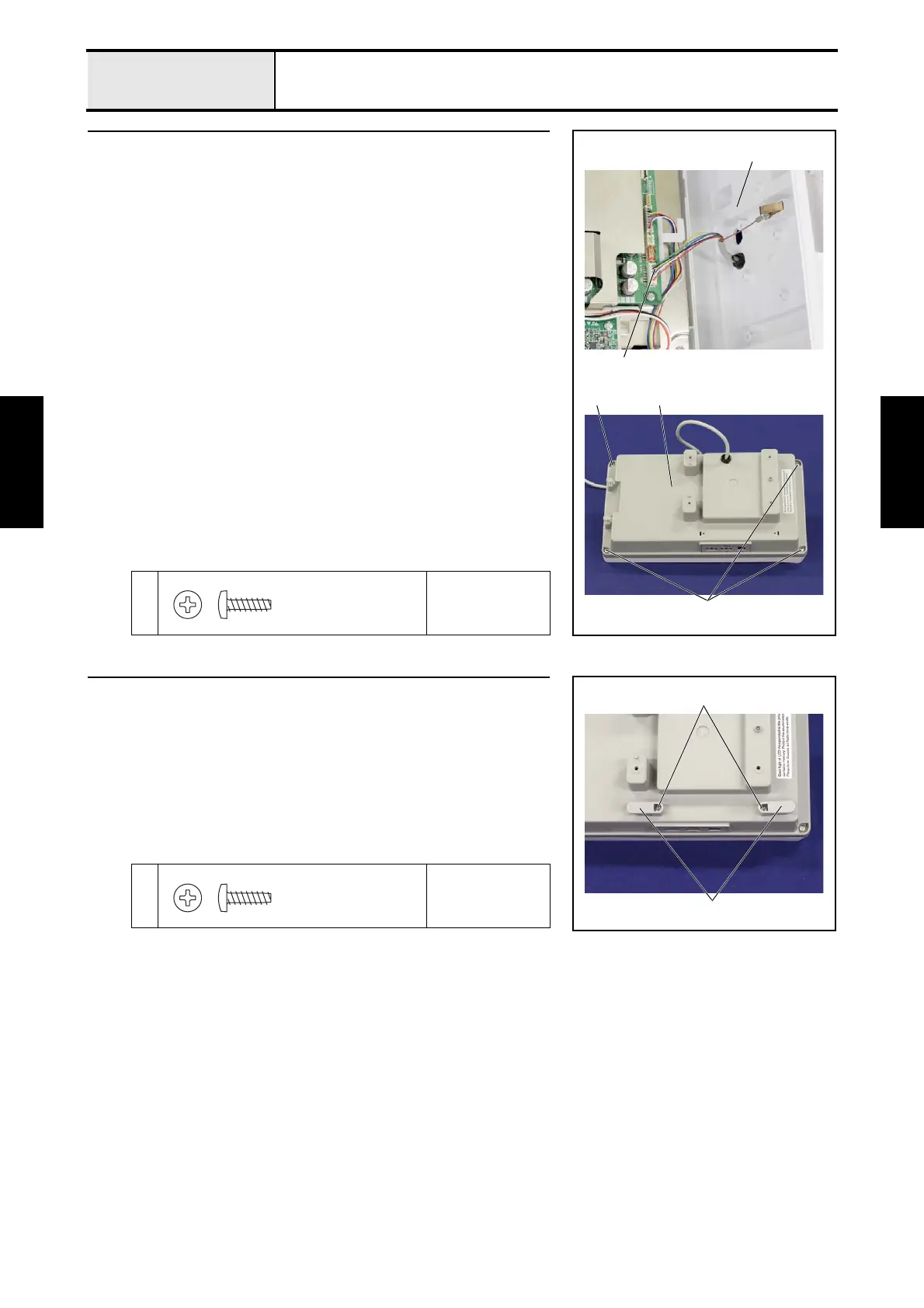

Operation panel
Main unit
Assembly Assembly
13 Panel rear cover attachment
1. Connect the connector of the lead wire assy com-panel 1 to the panel PCB
supply assy.
2. Attach the panel rear cover 2 to the panel front cover with the 4 screws
1.
1
Torque
0.59 — 0.78 N-m
2
1
2
1
1
Taptite, Bind B
M3X10
14 USB cord holder attachment
1. Attach the 2 USB cord holders 1 to the panel rear cover with the 2 screws
1.
*Key point
• Insert the lug on the USB cord holder 1 into the positioning
hole on the panel rear cover.
1
Torque
0.59 — 0.78 N-m
1
1
Taptite, Bind B
M3X10
