Brother PR655 Service Manual

2 - 75
Main unit
Thread tension unit
Disassembly Disassembly
11 Thread take-up lever cover disassembly (Step 2)

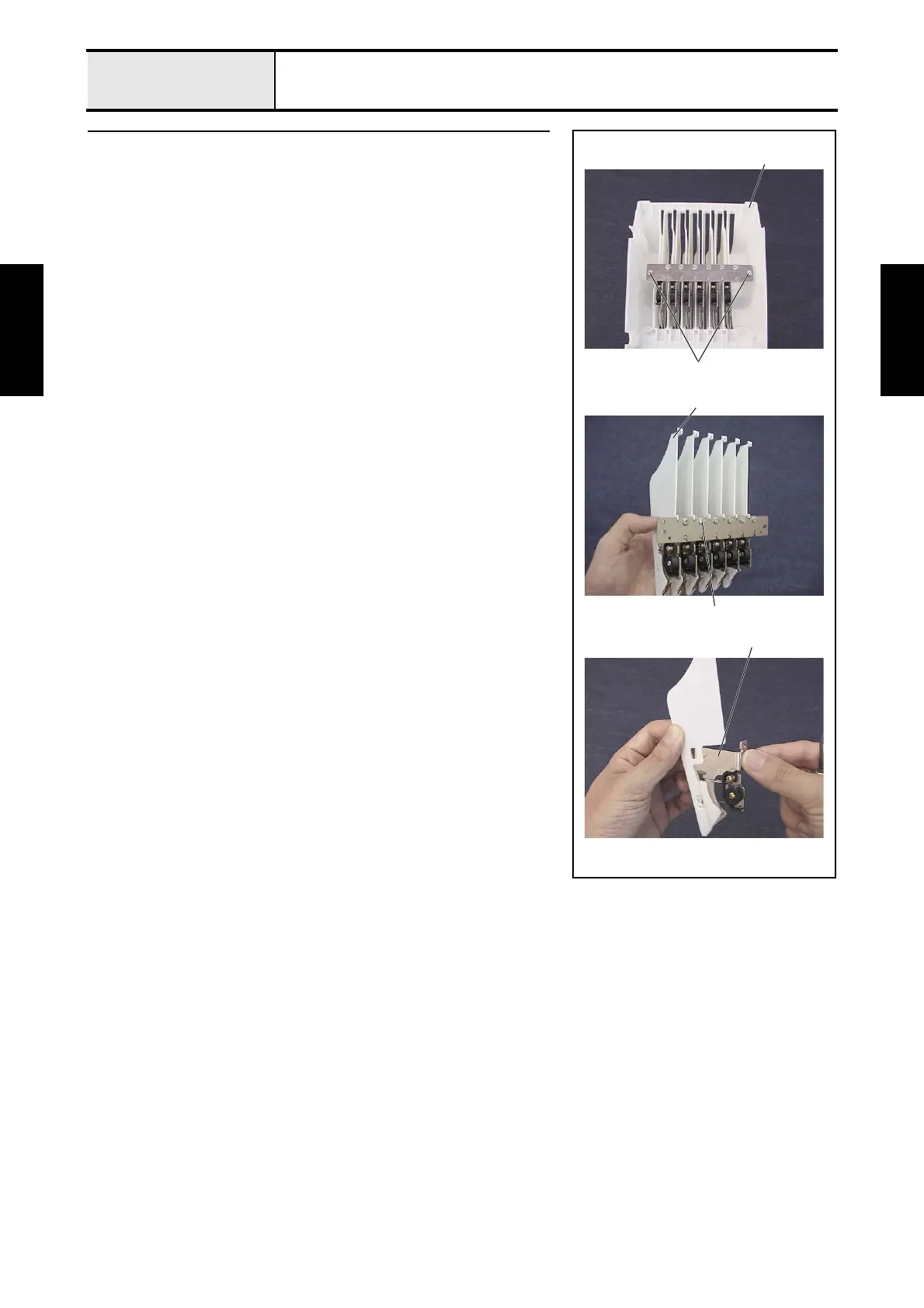

1. Remove the 2 screws 1, and then remove the thread tension bracket base.
2. Remove the 6 screws 2, and then remove the thread tension bracket base.
3. Remove the 6 thread guide cover assemblies 2 from the thread take-up
lever cover 1.
4. Remove the thread take-up bracket assembly 3 from the thread guide
cover assembly. (6 sets)
1
3
2
1
2
