Brother PR655 Service Manual

3 - 97
Main unit
Main unit
Assembly Assembly

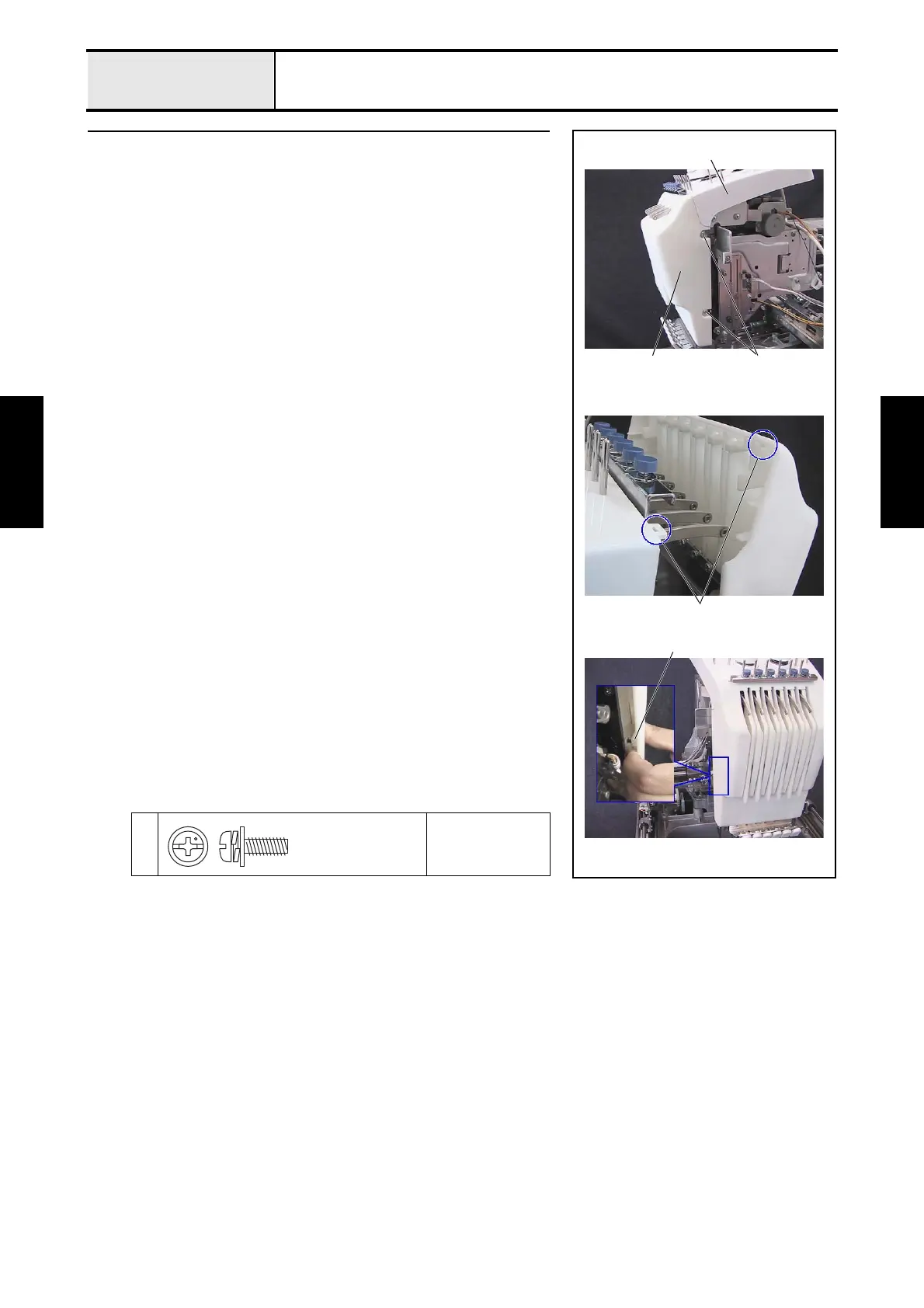

9 Thread take-up lever cover attachment
1. Attach the thread take-up lever cover 1 to the tension base assembly 2
with the 2 screws 1.
*Key point
• Place the 2 tabs on the upper section of the thread take-up
lever cover 1 over the 2 holes 3 on the operator's side of the
tension base assembly 2, and then align the pin on the left
side of the needle bar case final assembly with the groove 4
on the inner left side of the thread take-up lever cover 1.
1
Torque
1.18 — 1.57 N-m
4
3
2
11
Screw, Pan (S/P washer)
M4X10

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
