Brother PR655 Service Manual

3 - 99
Main unit
Main unit
Assembly Assembly
12 Board holder U/D attachment

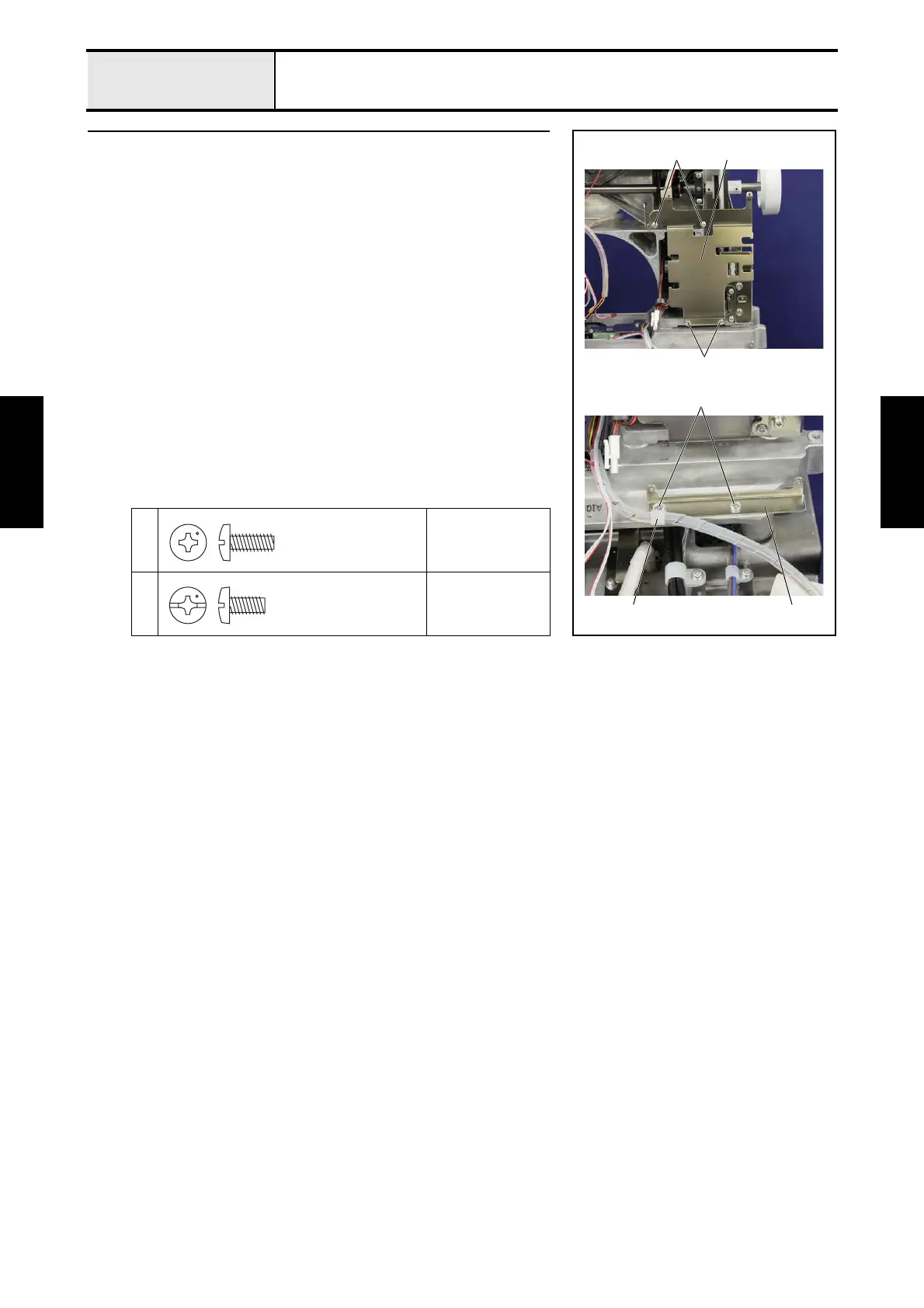

1. Attach the board holder U 1 to the arm bed with the 4 screws 1.
2. Set the cord clamp 2 to the spiral tube.
3. Attach the board holder D 3 and the cord clamp 2 to the arm bed with the
2 screws 2.
*Key point
• Refer to “Special Instructions of Wiring”.
1
Torque
1.47 — 1.96 N-m
2
Torque
1.18 — 1.57 N-m
1 1
1
2
2 3
Taptite, Bind S
M4X10
Screw, Bind
M4X8

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
