Brother PR655 Service Manual

2 - 54
Upper shaft unit
Main unit
Disassembly Disassembly

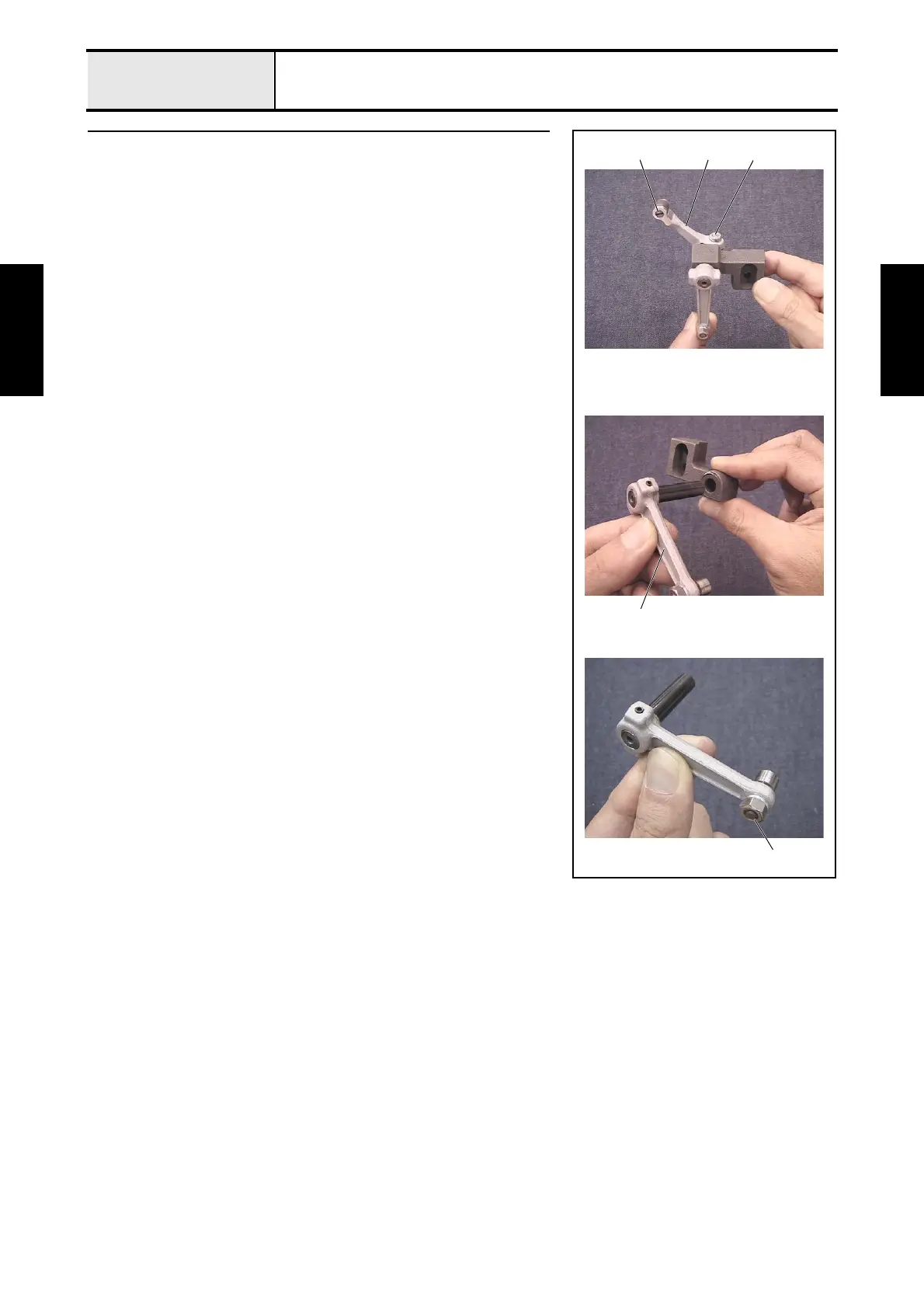

9 Thread take-up driving lever disassembly
1. Remove the screw 1, and then remove the thread take-up differential lever
1 and the spacer.
2. Remove the thread take-up roller pin 2 from the thread take-up
differential lever assembly, and then remove the roller.
3. Remove the thread take-up driving lever assembly 3 from the thread take-
up bearing.
4. Remove the nut (1, M5) 4 and the spring washer (2-5), and then remove
the roller shaft assembly from the thread take-up driving lever assembly.
2 1
3
4
1

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
