Brother PR655 Service Manual

3 - 100
Main unit
Main unit
Assembly Assembly

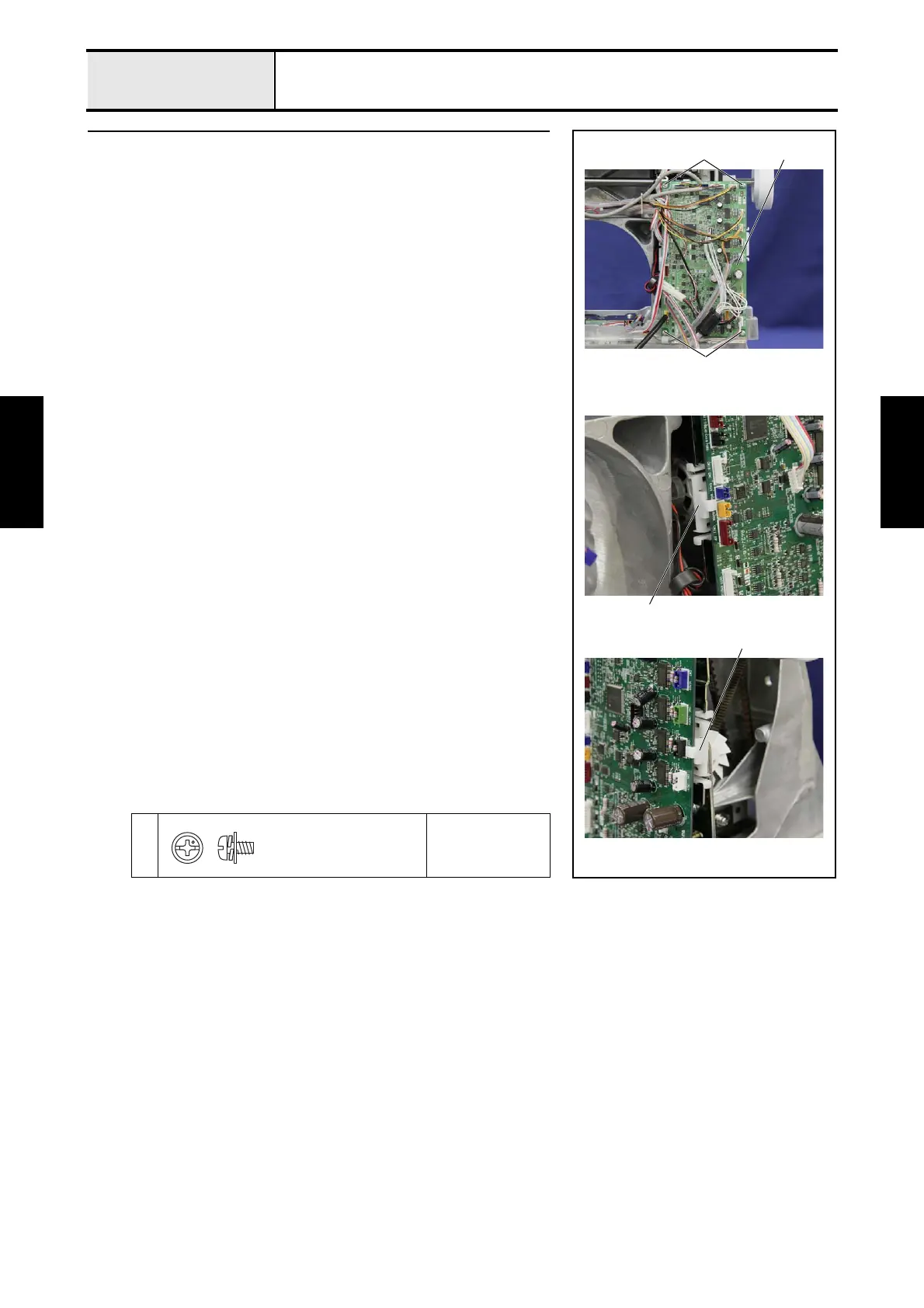

13 Main PCB assembly attachment
1. Attach the main PCB assembly 1 to the board holder U and the board
holder D with the 4 screws 1.
2. Attach the 2 PCB supporters 2 to the main PCB assembly 1 and the
board holder U.
3. Connect the connector of the motor assy to the connector of the lead wire
assy: power motor.
*Key point
• Refer to “Special Instructions of Wiring”.
4
Torque
0.59 — 0.78 N-m
1 1
1
2
2
Screw, Pan (S/P washer)
M3X6
