Brother PR655 Service Manual

4 - 25
Inspection and
Adjustment
Inspection and
Adjustment
Adjustment Presser foot height
[Standard]
The clearance between the section surrounding the needle plate hole and the bottom face of the presser foot should be
0.8 to 1.4 mm.
[Adjustment]
1. Attach the needle plate and turn the pulley by hand to move the needle bar to its lowest position.
2. Loosen the screw 1 of the needle bar clamp.
3. Adjust the presser foot height.
4. Tighten the screw 1 of the needle bar clamp to secure the presser foot.
5. Repeat the same steps to adjust the presser foot height for the other needle bars.

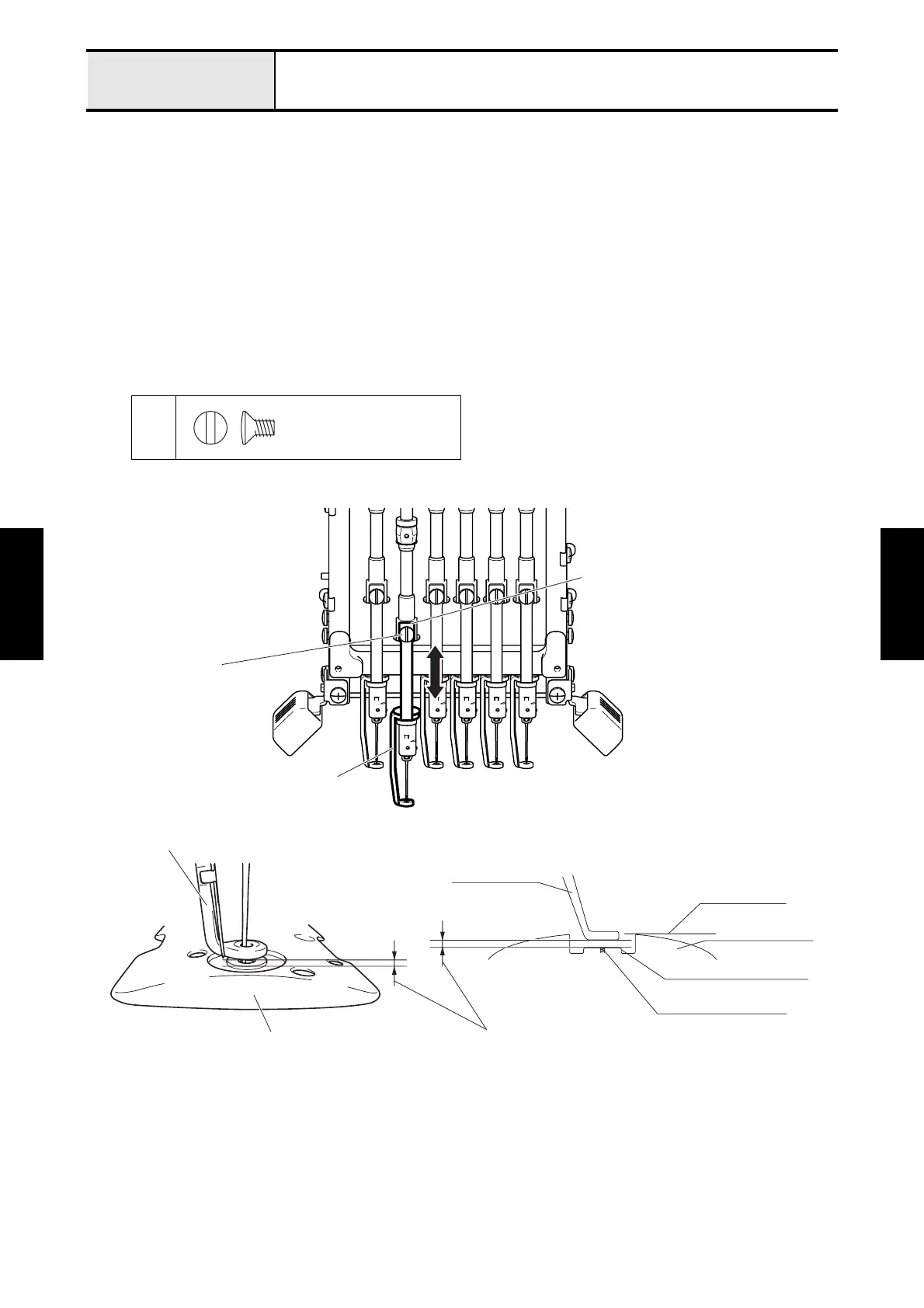

1
Screw Flat
M4
Presser foot
1
Needle bar clamp
0.8
- 1.4 mm
Top face of
needle plate
Presser foot
Needle plate
Section surrounding
Needle plate hole
Presser foot
Needle plate
Presser foot height

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
