Brother PR655 Service Manual

3 - 86
Main unit
Feed unit
Assembly Assembly

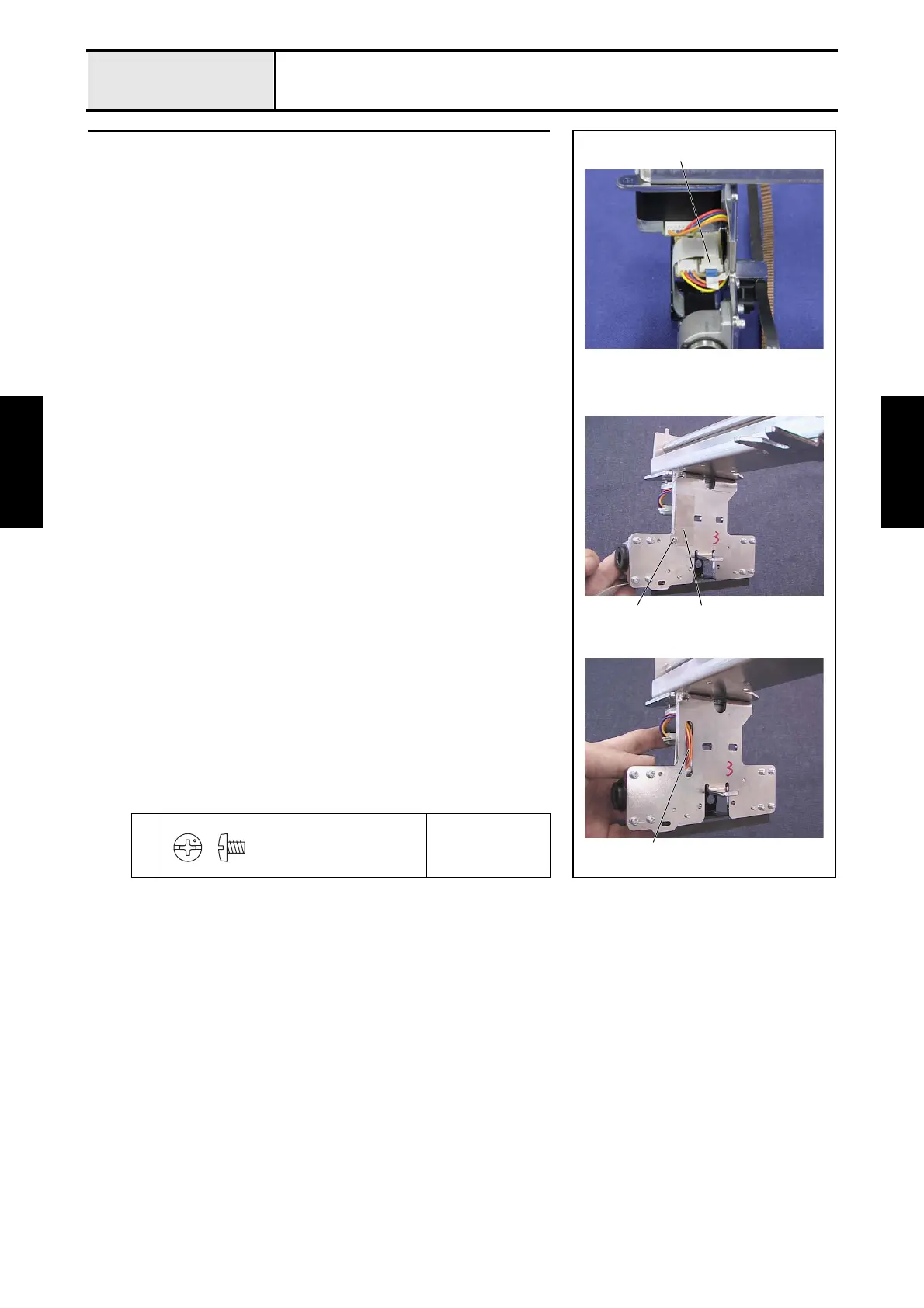

13 Cord grip attachment
1. Connect the FFC (SML2CD-C) 1 to the connect PCB, and lock the
connector.
2. Connect the X-feed motor's lead wire to the connect PCB.
3. Bind the X-feed motor's lead wire and the FFC (SML2CD-C) 1 with the
cord grip 2, and then tighten the screw 1.
*Key point
• Insert the X-feed motor's lead wire into the groove 3 on Y-
carriage L.
1
Torque
0.59 — 0.78 N-m
1
3
1 2
Screw, Bind
M3X4

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
