Brother PR655 Service Manual

2 - 52
Upper shaft unit
Main unit
Disassembly Disassembly

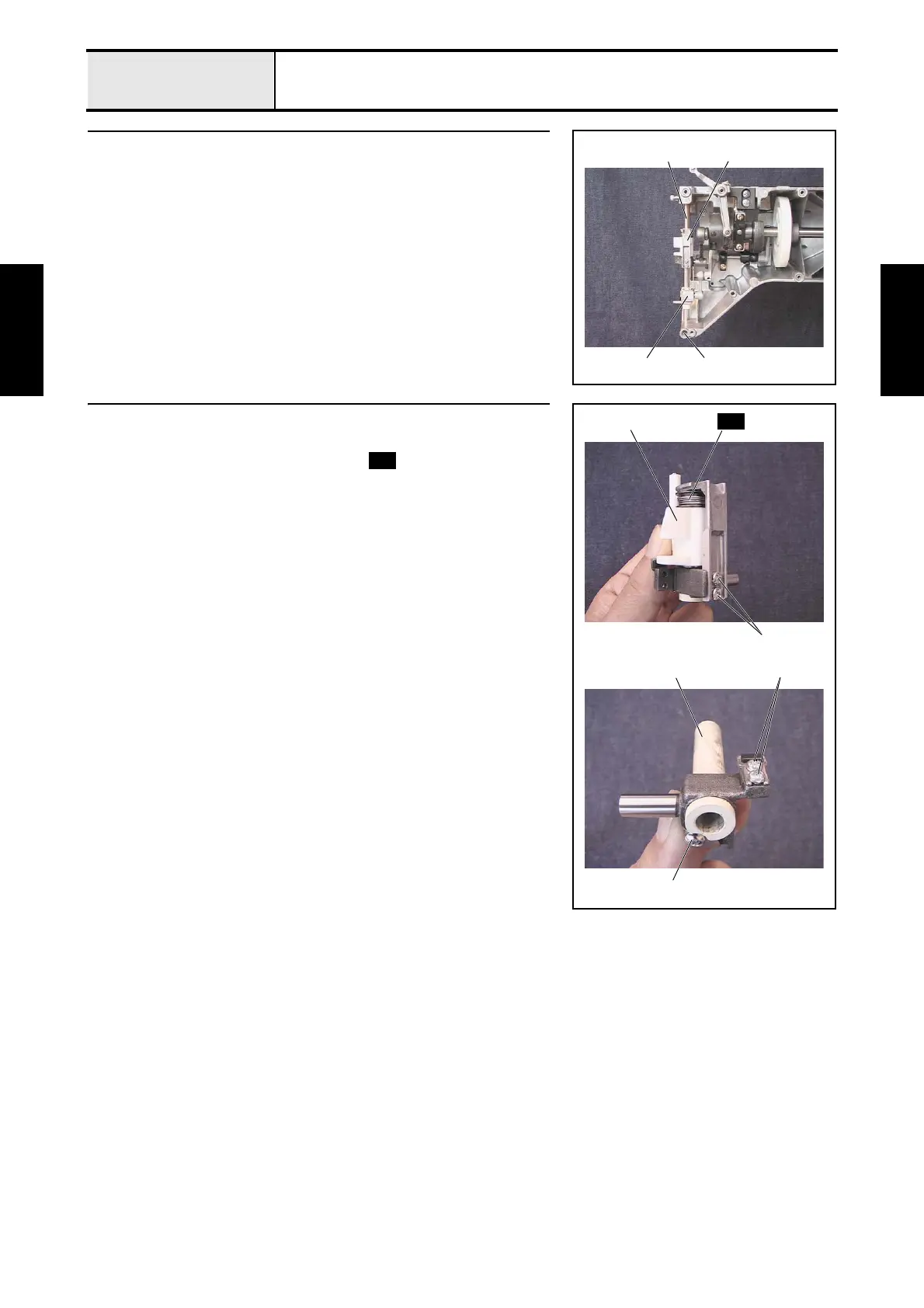

5 Base needle bar removal
1. Remove the screw 1, and then remove the J-clamp final assembly 2 and
the presser foot vertical base assembly 3 while pulling the base needle bar
1 upward.
1
1
2
3
6 J-clamp disassembly
1. Remove the 2 screws 1, and then remove the J-clamp.
2. Remove the J-spring collar and the spring .
3. Remove the thrust washer, jump bracket 1, and thrust washer.
4. Remove the screw 2, and then remove the J vertical bush 2 from the J
bracket assembly.
5. Remove the 2 screws 3, and then remove the J cushion base.
1
1
S45
2
3
2
S45

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
