Brother PR655 Service Manual

3 - 10
Main unit
Operation panel
Assembly Assembly
18 Operation panel lever assembly attachment

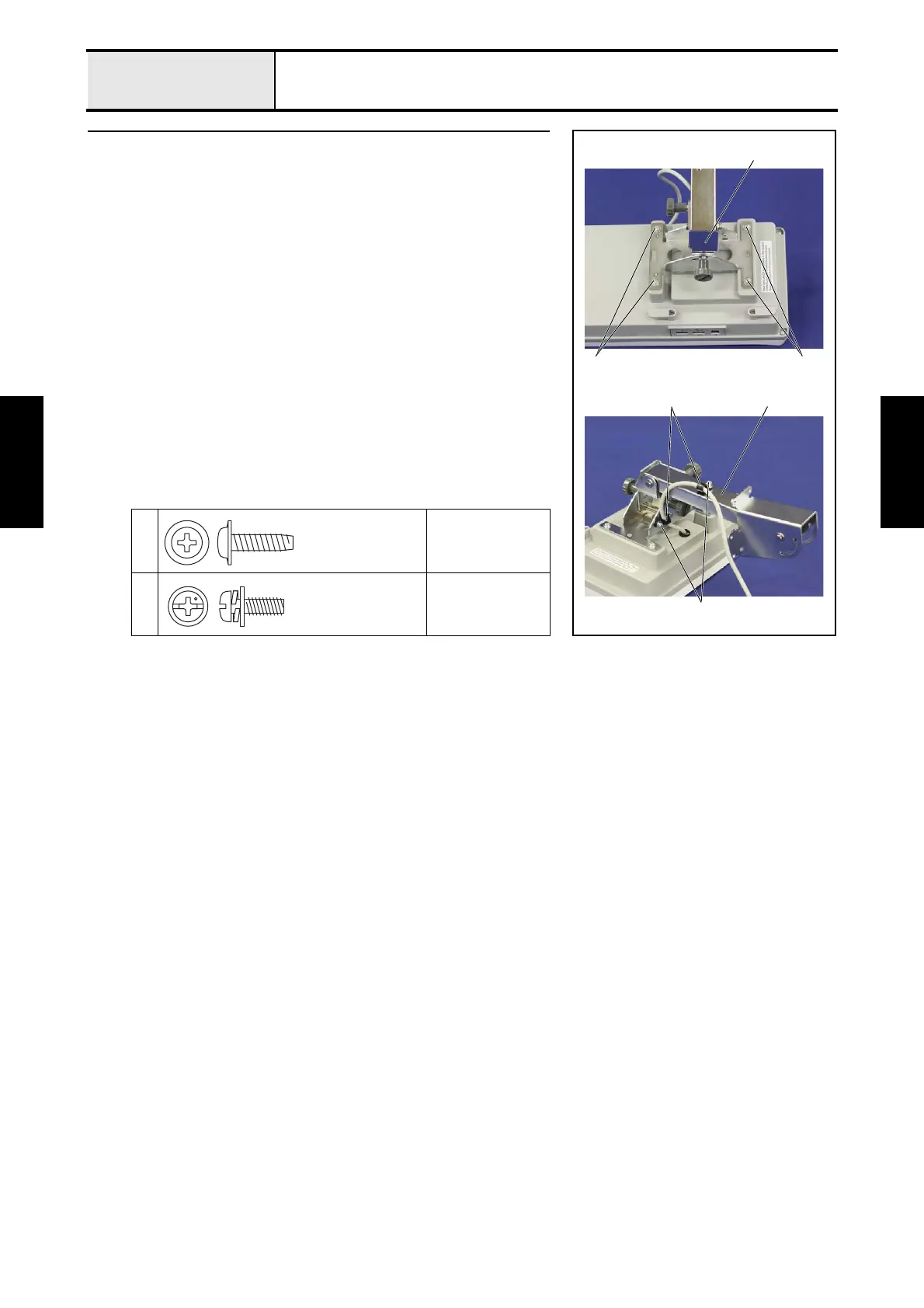

1. Attach the operation panel lever assembly 1 to the panel rear cover with
the 4 screws 1.
2. Set the 2 cord clamp 2 to the cord, and then attach the 2 cord clamp 2 to
the operation panel lever assembly 1 with the 2 screws 2.
1
Torque
0.78 — 1.18 N-m
2
Torque
0.78 — 1.18 N-m
2
2 1
1
1 1
Taptite, Cup B
M4X14
Screw, Pan (S/P washer)
M4X12
