Brother PR655 Service Manual

Failure Investigation
for Electronic Parts
Failure Investigation for Electronic Parts
Failure Investigation
for Electronic Parts
5 - 7

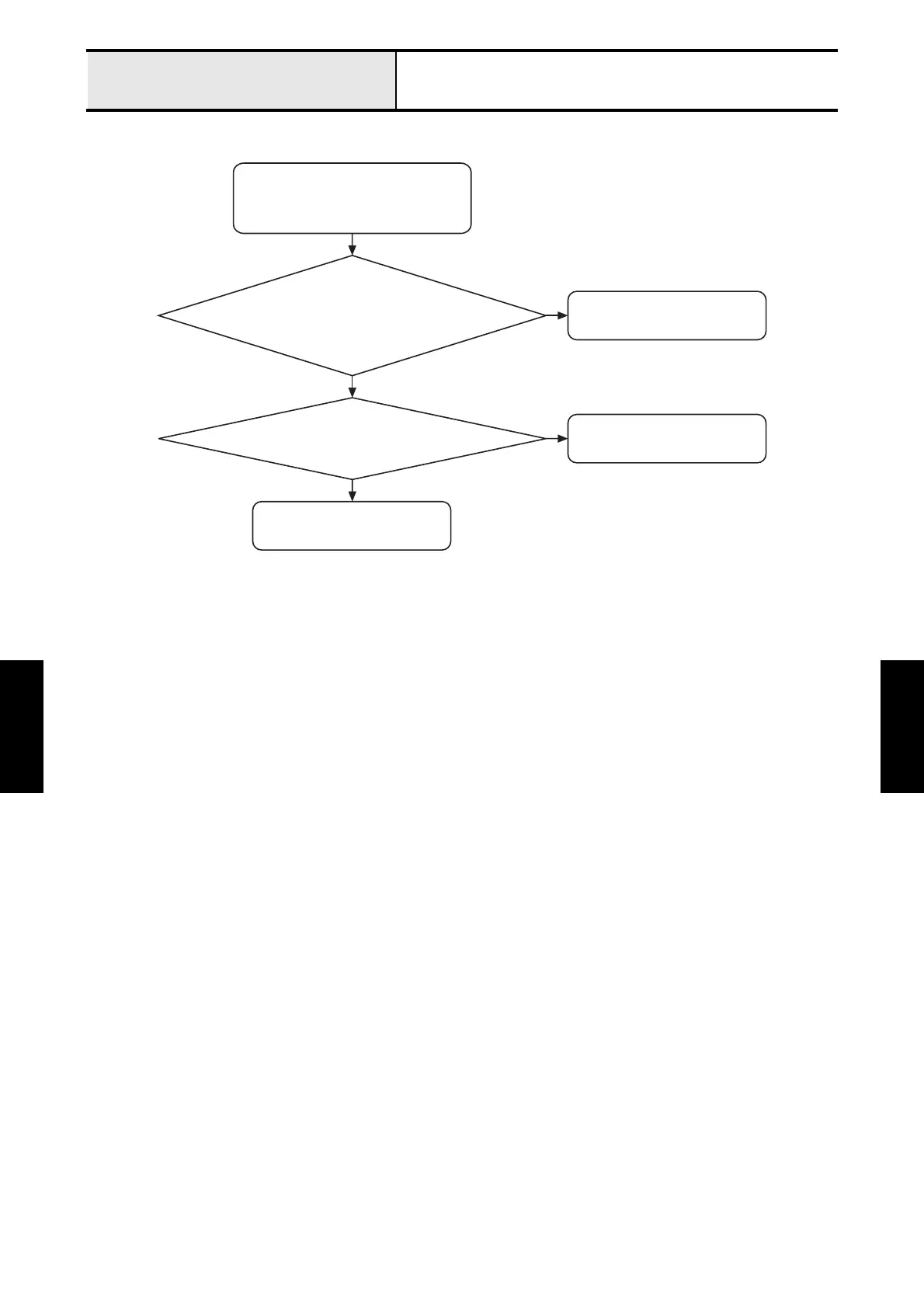

The panel switch does not work.
• The panel switch does not work,
or
• The panel's LED does not light.
Connect it properly.
N
Y
Change the panel PCB.
Does the machine function normally when
the SS PCB is replaced with a reliable one?
N
Y
Is the SS PCB's lead properly
connected to connector CN2 on the
panel PCB?
Change the SS PCB.

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
