Brother PR655 Service Manual

2 - 50
Upper shaft unit
Main unit
Disassembly Disassembly

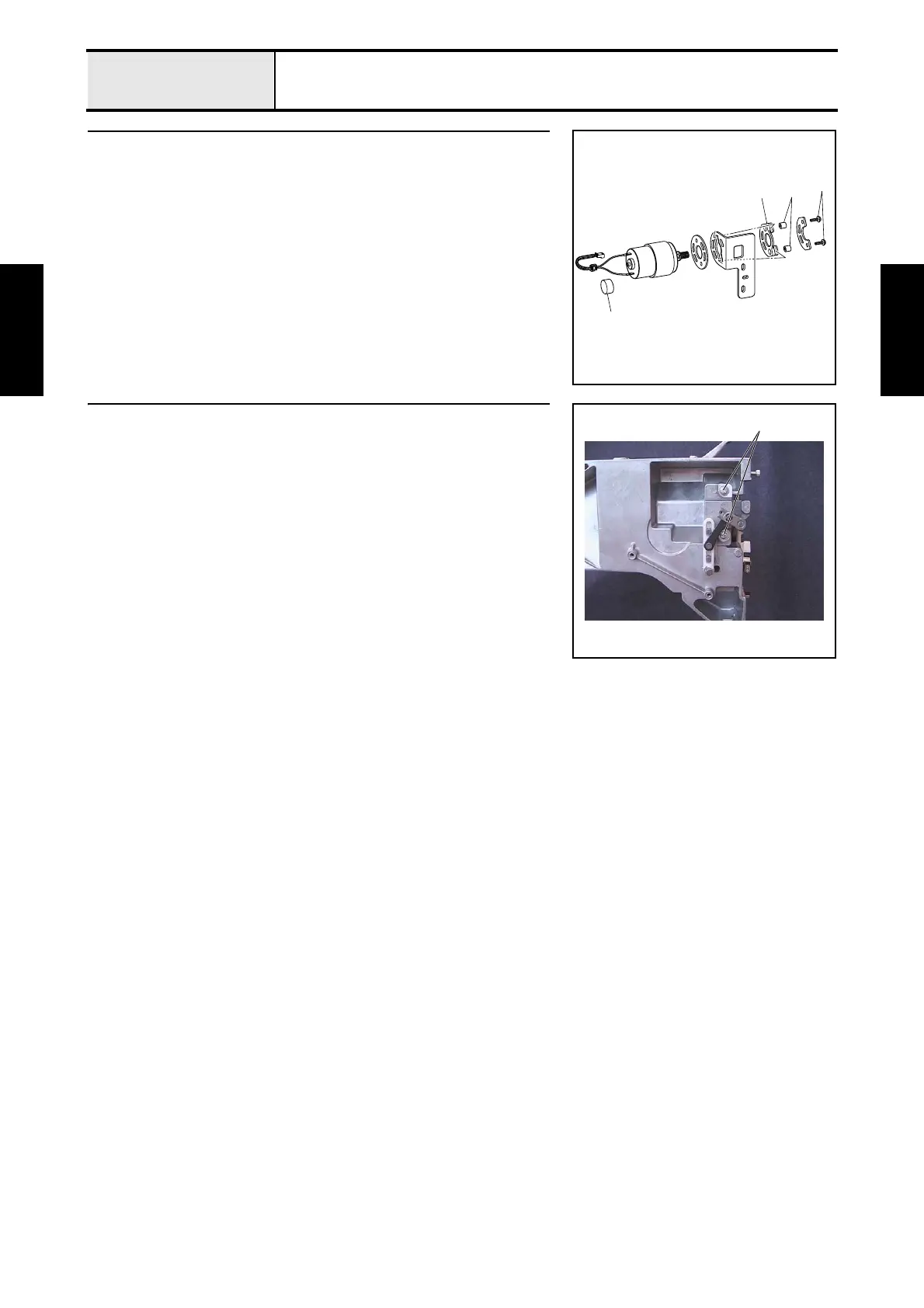

2 Main motor disassembly
1. Remove the 2 screws 1, and then remove the main motor assembly, motor
holder spacer, and motor spacer presser from the motor holder.
2. Remove the fender rubber 1 from the motor holder.
3. Remove the 2 spacers (4 x 7) 2 from the fender rubber.
4. Remove the motor cap 3 from the main motor assembly.
1
1
2
3
3 Driving jump assembly removal
1. Remove the 2 screws 1, and then remove the driving jump assembly.
1

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
