Brother PR655 Service Manual

1 - 5
Outline of Mechanism
Outline of
Mechanism
Outline of
Mechanism

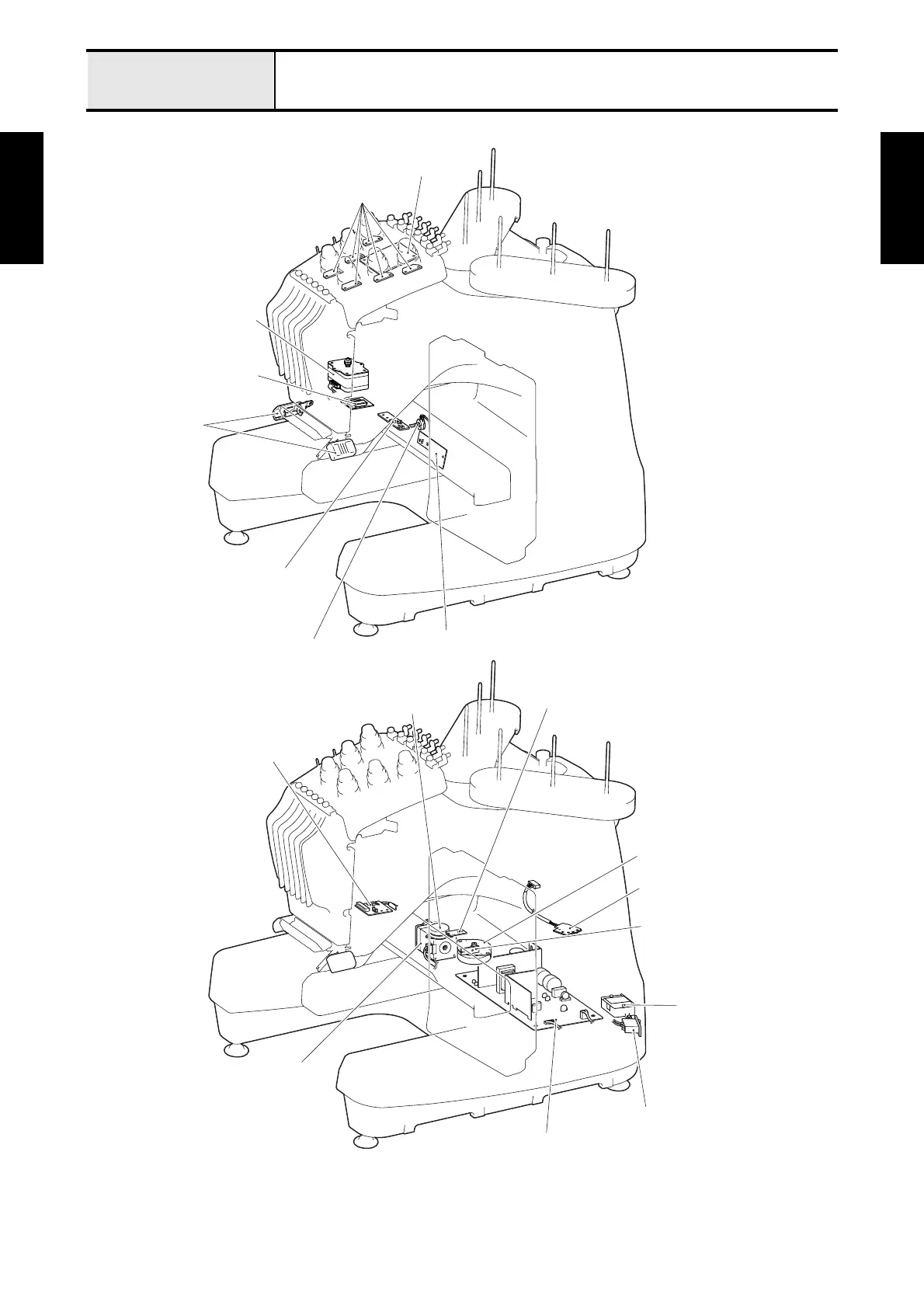

Positions of electronic components
TH sensor
(Thread quantity sensor)
Head PCB
LED light
Hoop sensor
Hoop sensor PCB
X area sensor
Power supply PCB
Power SW
Inlet
Extension IF PCB
TH cutter motor
(Thread cutter motor)
TH cutter sensor
(Thread cutter sensor)
Y area sensor
Picker motor
Picker sensor
Y motor
X motor
Connect PCB

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
