Brother PR655 Service Manual

3 - 84
Main unit
Feed unit
Assembly Assembly

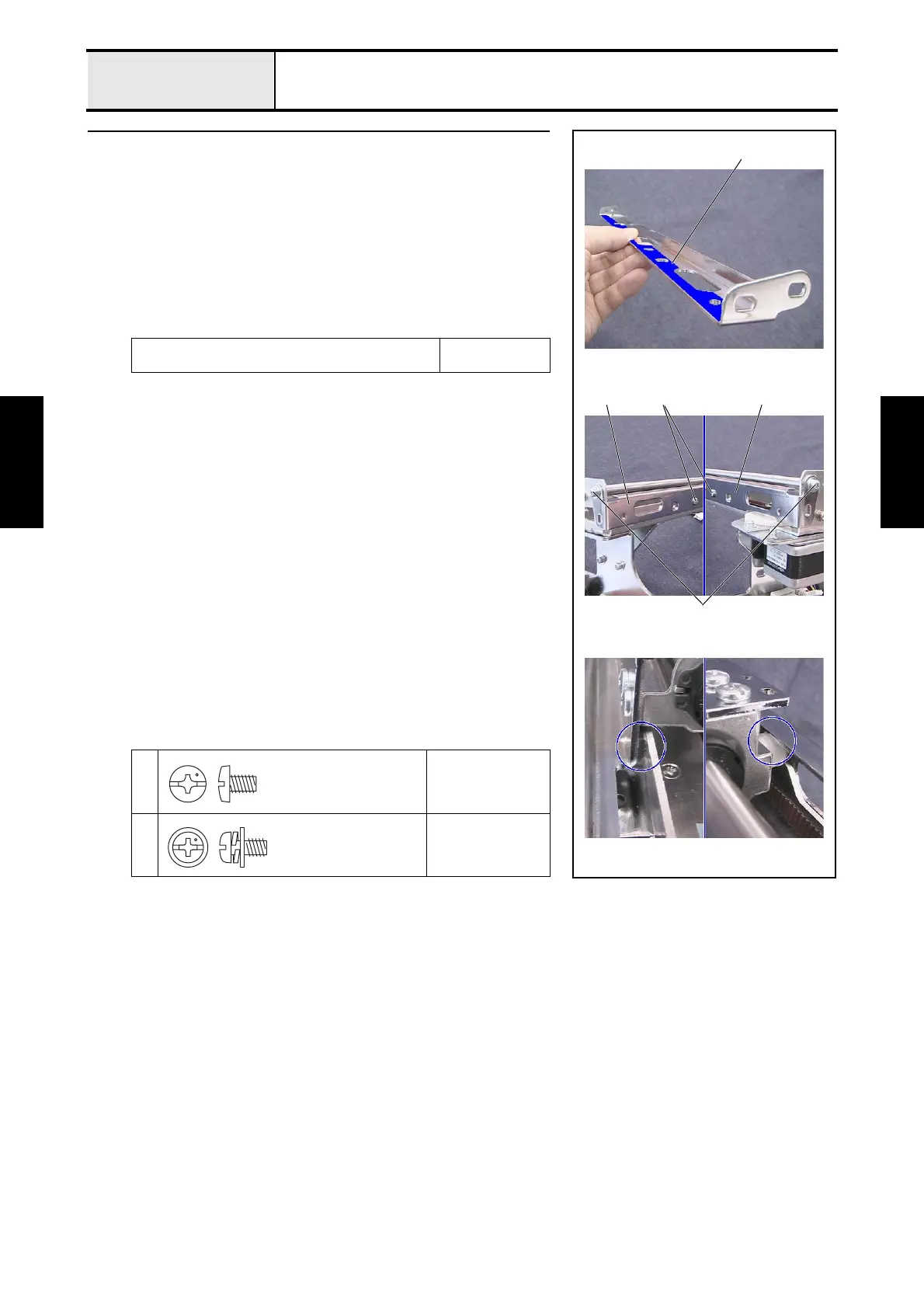

10 X-feed frame B attachment
1. Apply MOLYKOTE EM-30L to the surface 1 where the X-feed frame
contacts the X-roller.
2. Attach the X-feed frame B 2 to the feed frame assembly with the 4 screws
(1 2, 2 each).
*Key point
• No clearance is allowed between X-carriage A and the feed
frame.
• No clearance is allowed between the X-roller and X-feed
frame B.
Apply MOLYKOTE EM-30L to the surface where the X-
feed frame contacts the X-roller.
Size of a bean
1
Torque
1.18 — 1.57 N-m
2
Torque
1.18 — 1.57 N-m
1
2
12 2
Screw, Bind
M4X6
Screw, Pan (S/P washer)
M4X8
