Brother PR655 Service Manual

2 - 65
Main unit
Thread cut unit
Disassembly Disassembly

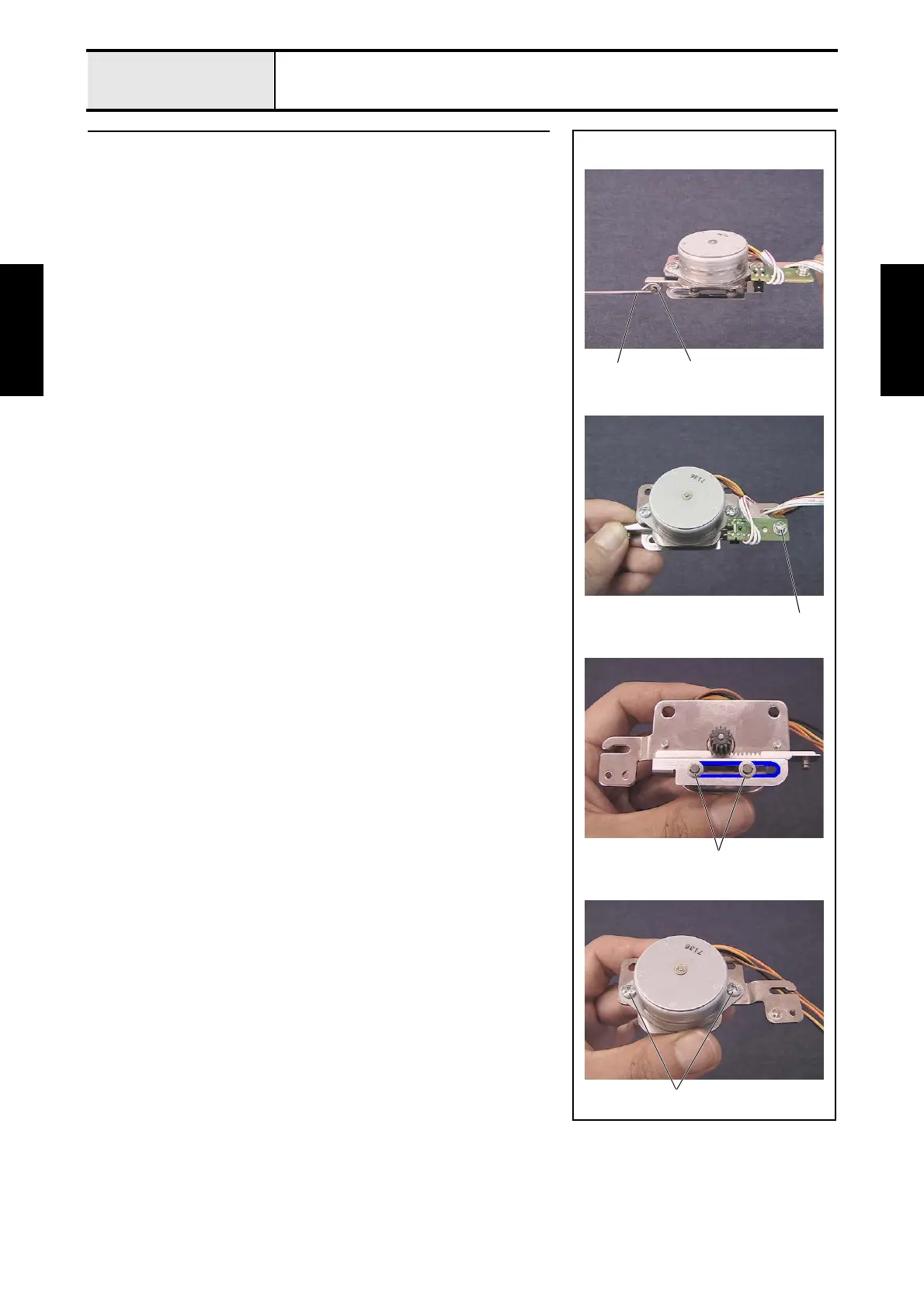

1 Picker disassembly
1. Remove the retaining ring E2, and then remove the washer and the picker
link 1.
2. Remove the screw 1, and then remove the picker sensor assembly.
3. Remove the 2 retaining rings E2, 2 plain washers S3, rack assembly, and 2
plain washers S3.
4. Remove the 2 retaining rings E2.
5. Remove the 2 screws 2, and then remove the picker motor assembly.
1
Retaining ring E2
Retaining ring E2
2
1

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
