Brother PR655 - Adjust Bolt Attachment

3 - 27
Main unit
Power unit
Assembly Assembly
1 Adjust bolt attachment

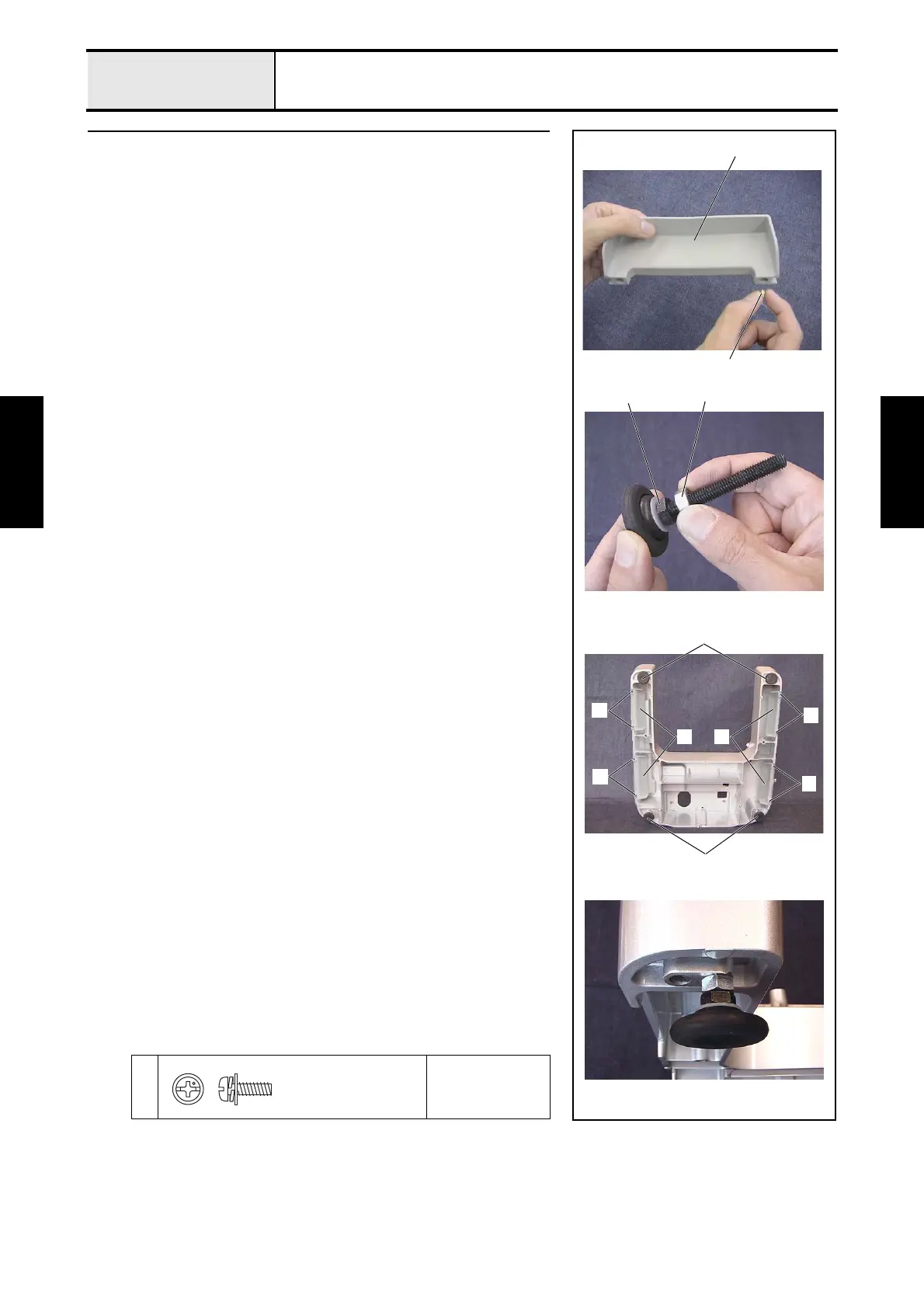

1. Attach the 2 bushes 2 to the handle 1. (4 locations)
2. Attach the handle 1 to the base frame with the 2 screws 1. (4 locations)
3. Attach the 4 nuts (2, M8) 4 to the 4 adjust bolts (M8) 3.
*Key point
• Lightly tighten the nut (2, M8) against the head of the adjust
bolt (M8).
4. Attach the 4 adjust bolt assemblies 5 to the base frame.
*Key point
• Lightly tighten the adjust bolt assembly 5 against the base
frame.
1
Torque
0.59 — 0.78 N-m
43
2
1
5
5
1
1
1
1
1
1
Screw, Pan (S/P washer)
M3X10
