Brother PR655 Service Manual

3 - 82
Main unit
Feed unit
Assembly Assembly

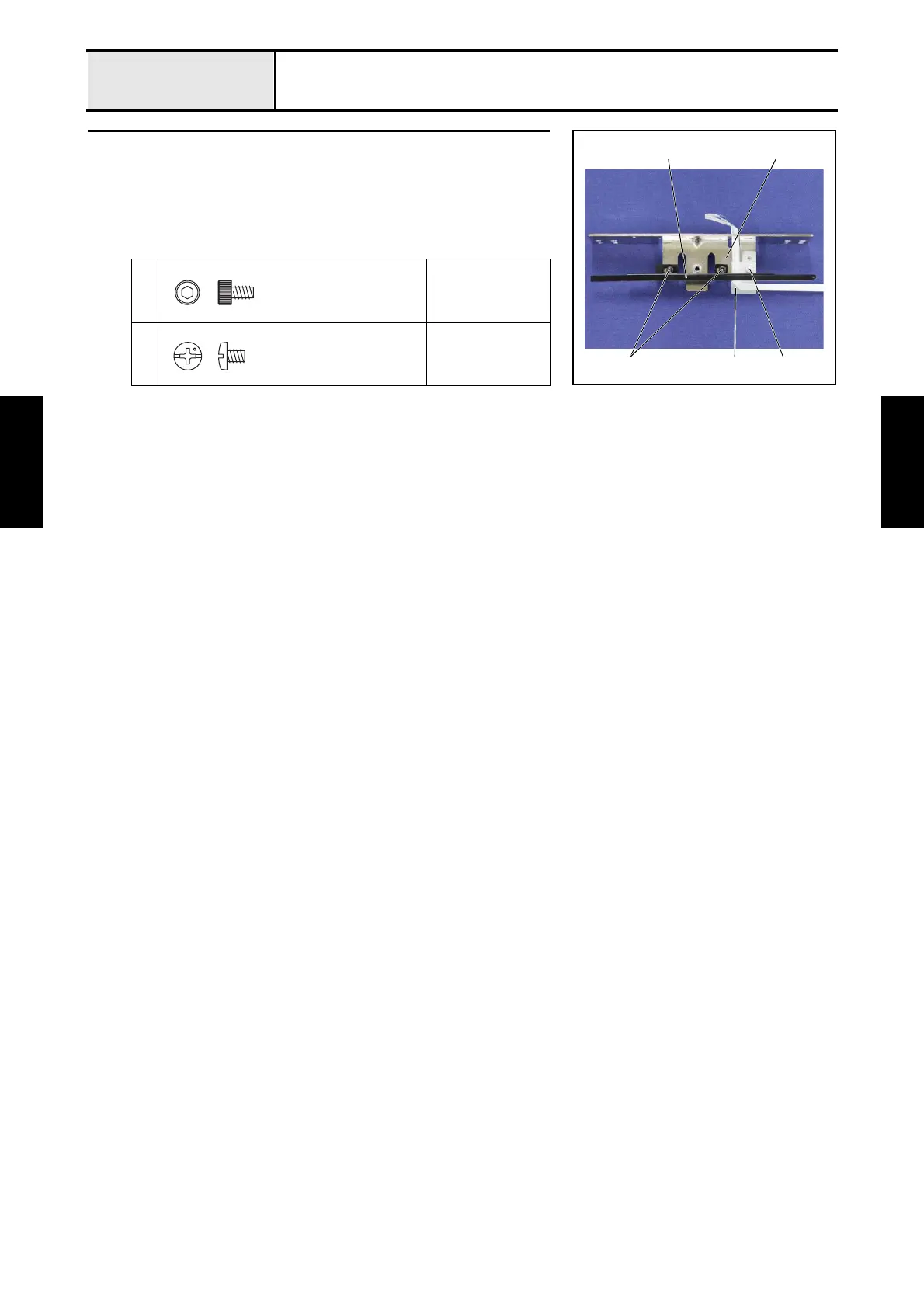

8 X-sensor dog attachment
1. Attach the X-sensor dog 1 to the X-carriage B 2 with the 2 screws 1.
2. Attach the FFC (SML2CD-X) and the sheet 3 to X-carriage B with the
screw 2.
1
Torque
0.59 — 0.78 N-m
2
Torque
0.59 — 0.78 N-m
2
1 3 2
1
Bolt, Socket
M3X5
Screw, Bind
M3X4
