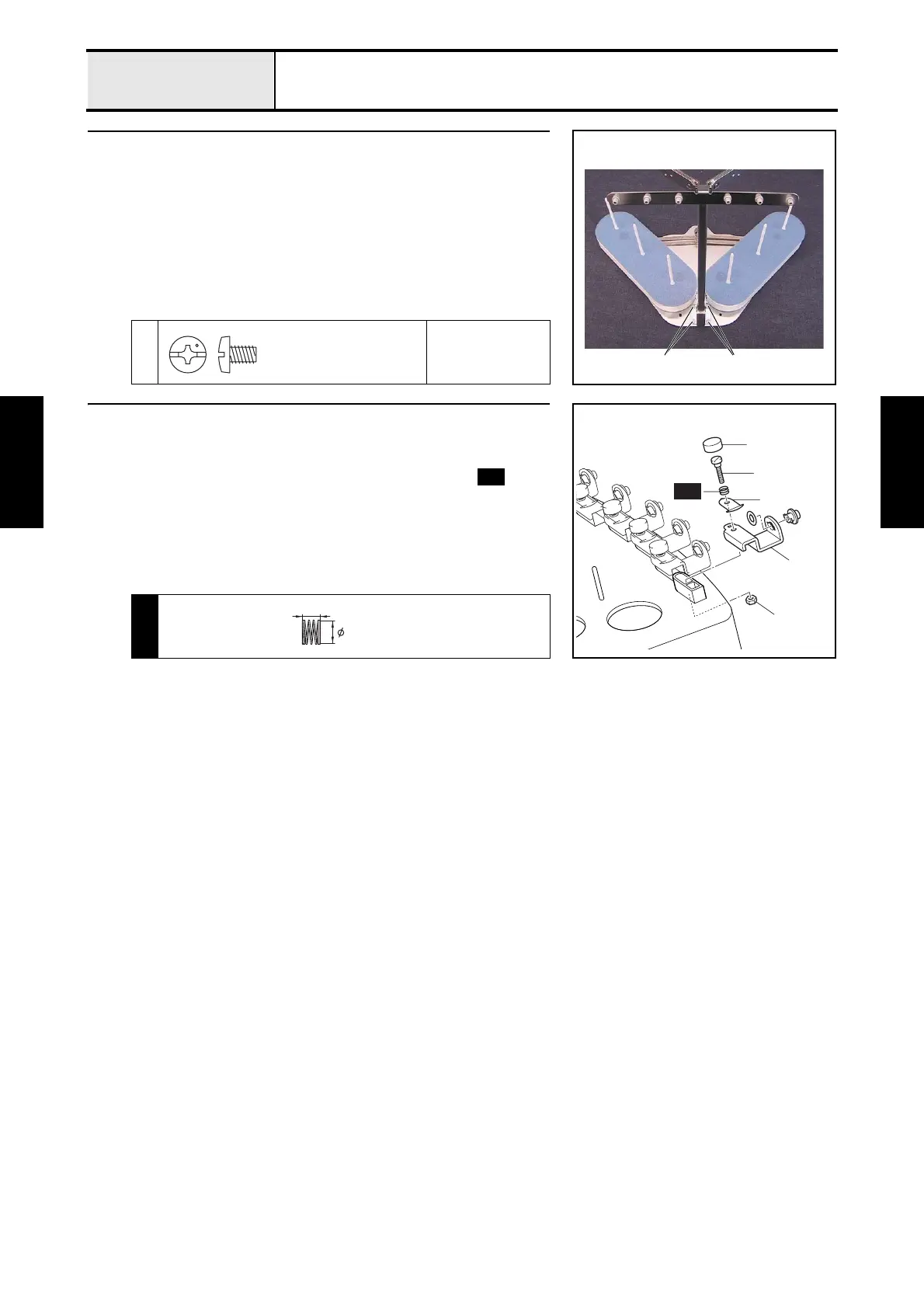

Brother PR655 Service Manual

3 - 17
Thread tension unit
Main unit
Assembly Assembly
8 Antenna assembly attachment
1. Attach the antenna assembly to the thread stand base assembly with the 4
screws 1.
1
Torque
1.18 — 1.57 N-m
11
Screw, Bind
M4X6
9 Upper thread eyelet base attachment
1. Attach the upper thread eyelet base 1 and the thread guide tension plate
2 to the tension base assembly. (6 locations)
2. Thread the thread guide tension screw 3 through the spring , attach
the nut (2, M3) 4 from the rear side of the tension base assembly, and then
tighten the thread guide tension screw 3. (6 locations)
3. Attach the tension axis cap 5 to the thread guide tension screw 3. (6
locations)
S53
5
3
2
1
4
S53
S53
THREAD GUIDE COMPRESSION
XC6231***
5
4.1

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
