Brother PR655 Service Manual

6 - 17
Replacement
Maintenance &
Replacement
Maintenance &
Replacement
Main motor assy
12
34
56
Bed bottom cover
XY carriage
XY carriage
Bed cover
Arm cover R lid
A
Bed cover top

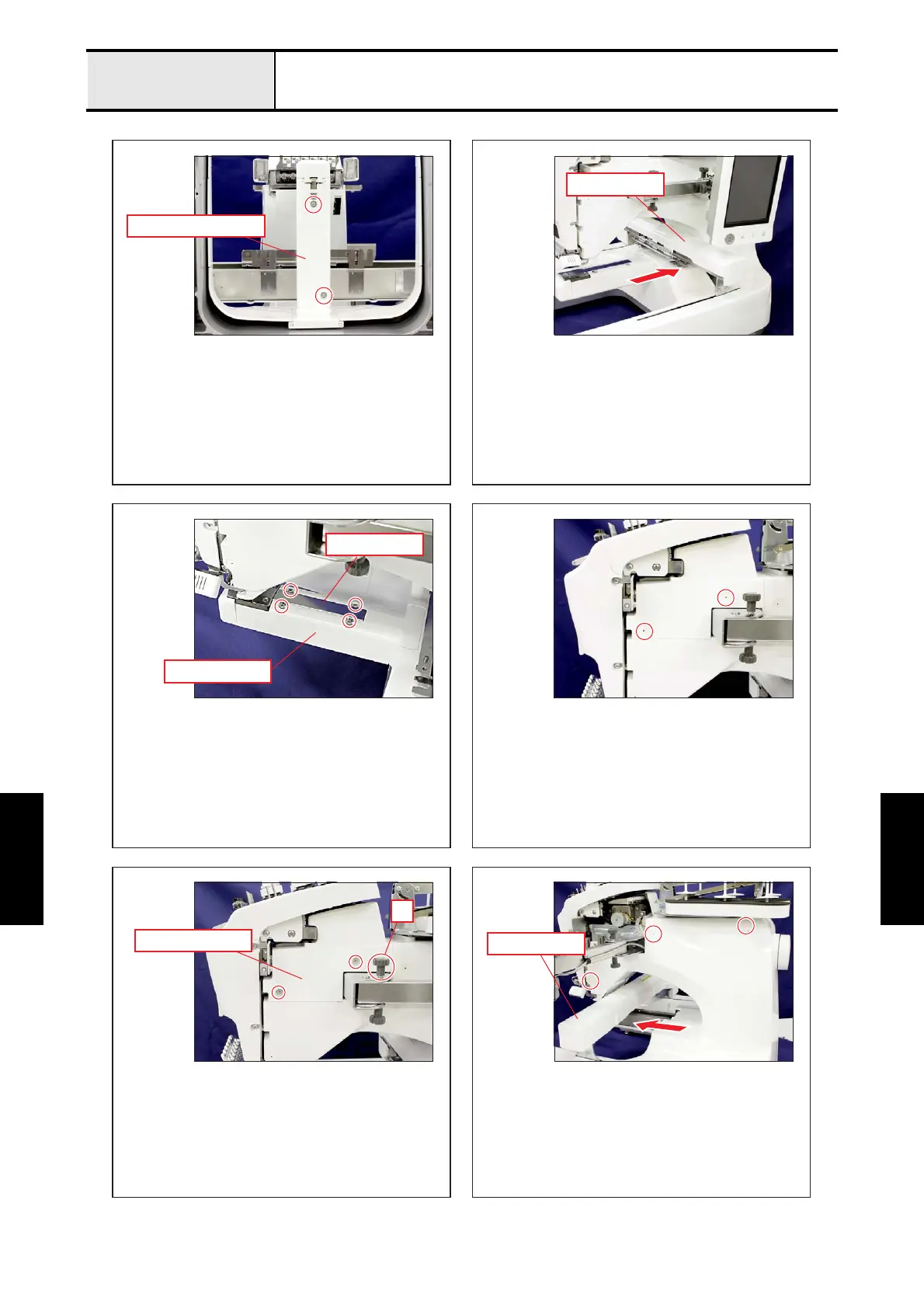

- Check that the power supply cord is disconnected.
- Remove the 2 screws, and then remove the bed
bottom cover.
- Slide the XY carriage to the direction of the arrow.
- Remove the 4 screws, and then remove the bed cover
top and the bed cover.
- Remove the 2 screw covers.
- Remove the thumb bolt, the spring washer and the
plain washer. "A"
- Remove the 2 screws, and then remove the arm cover
R lid.
- Replace the plain washer, the spring washer and the
thumb bolt to the initial position. "A"
- Slide the XY carriage to the direction of the arrow.
- Remove the 3 screw covers.

Brother PR655 Specifications

General

Number of Needles	6
Built-in Designs	25
USB Port	Yes
LCD Display	Yes
Type	Embroidery Machine
Built-in Fonts	28
Maximum Speed	1000 stitches per minute
Embroidery Area	300mm x 200mm
