Brother PR655 - TH Motor Assembly Removal

2 - 31
Needle thread unit
Main unit
Disassembly Disassembly
5 TH motor assembly removal

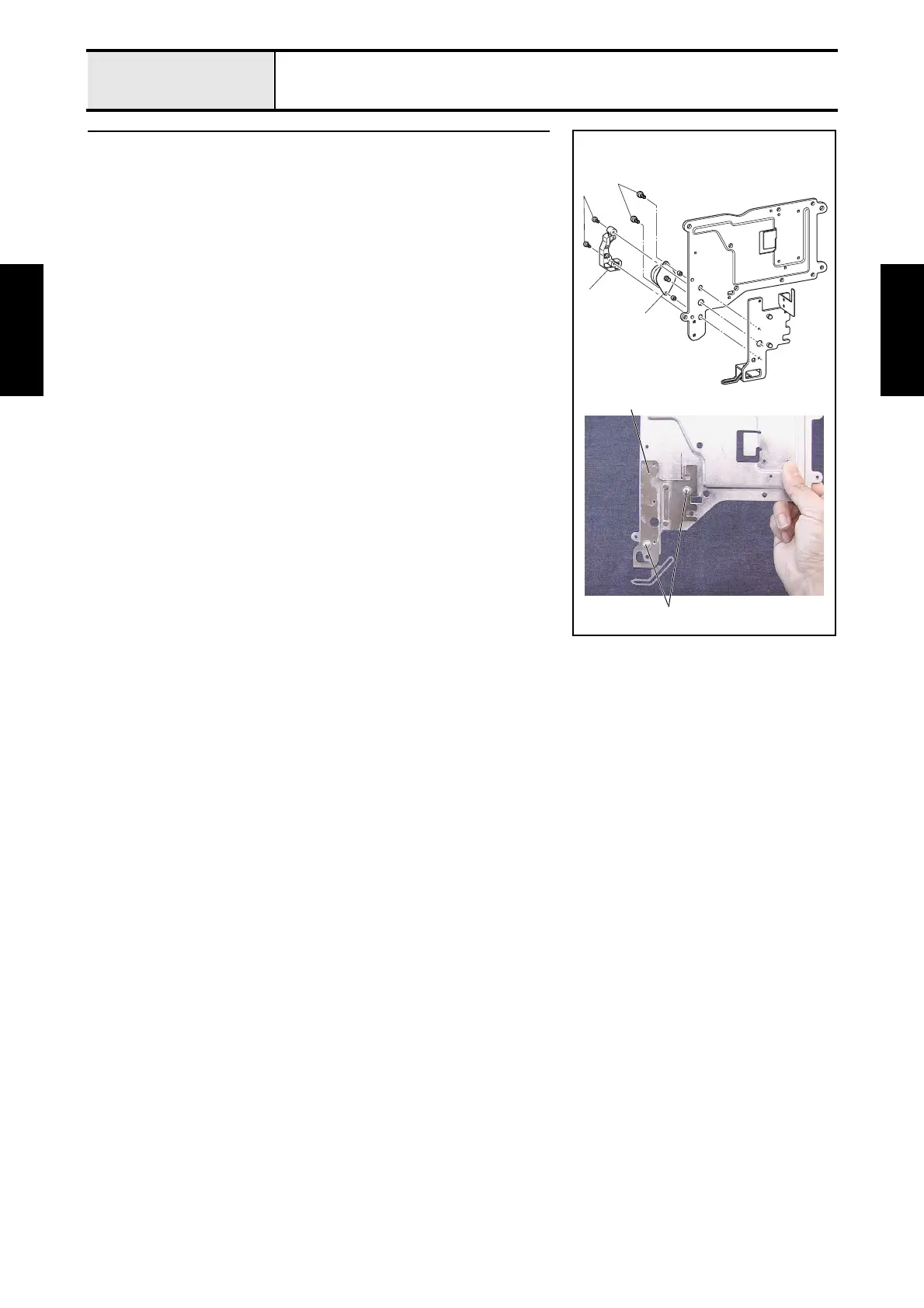

1. Remove the 2 screws 1, and then remove the lead wire guide 1.
2. Remove the 2 screws 2, and then remove the TH motor assembly 2 and 2
spacers.
3. Remove the 2 screws 3, and then remove the base plate assembly 3 from
the thread guide base.
2
1
2
1
3
3
