E.5 ETHERNET CONNECTION (ARM / SCANNER)
Wired connection: to get benefits from the high-speed scanning, an on-board Gigabit
network device is necessary.
E.5.1 ARM SETUP

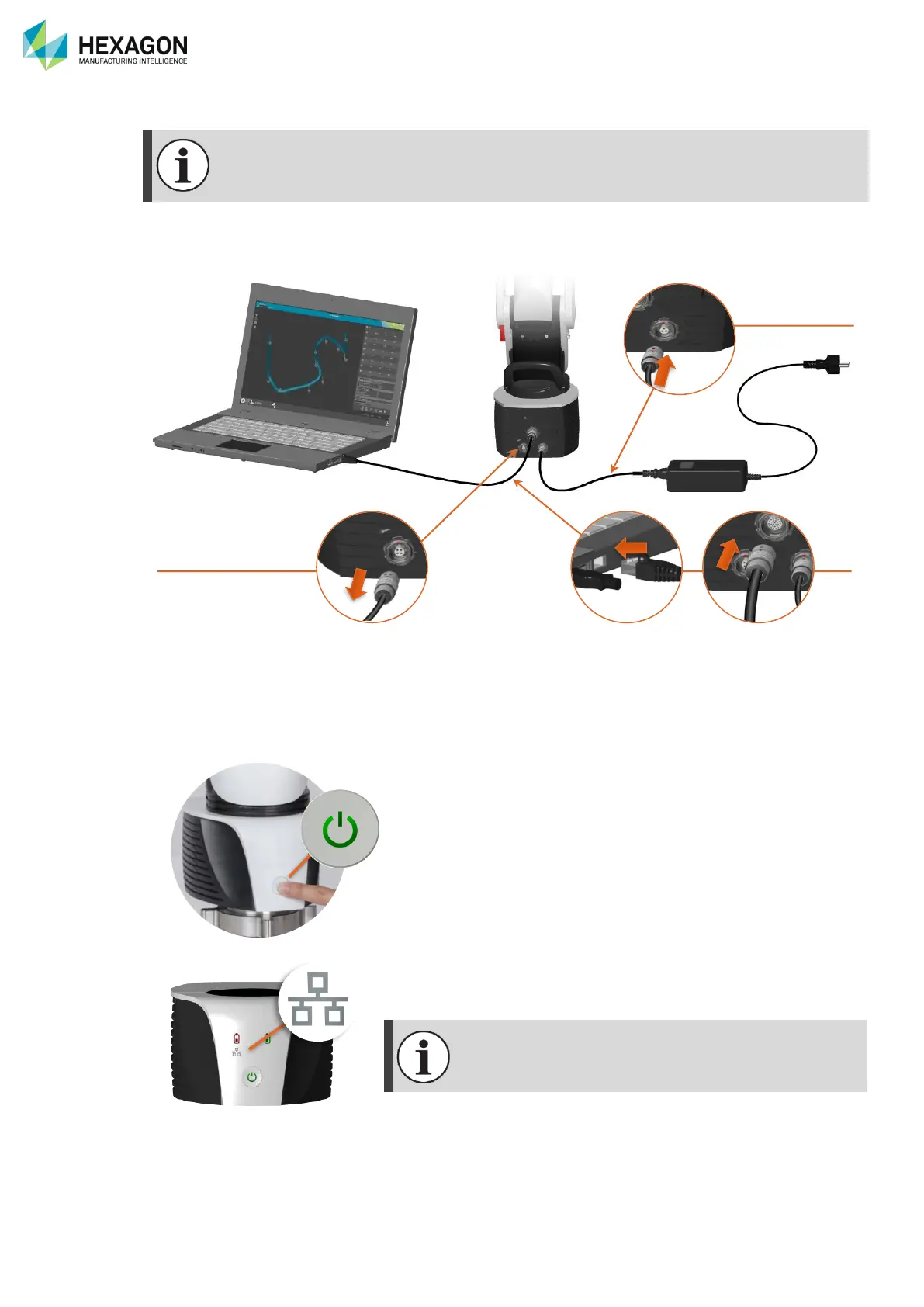

Fig. 36 : USB + Scanner connection
1. Ensure that a Wireless Scanning Pack (CP3) is mounted.
2. Connect the power supply to the arm. (Or use on battery)
3. Connect the Ethernet cable from the arm to the computer
4. Disconnect any USB cable from the Control Pack
5. Power on the arm by holding the power button for at least 1 second.
6. After some seconds, the Ethernet pictogram appears, showing that the Arm is ready to connect.
Ethernet is available only when the USB cable is
unplugged.
3
2
4
