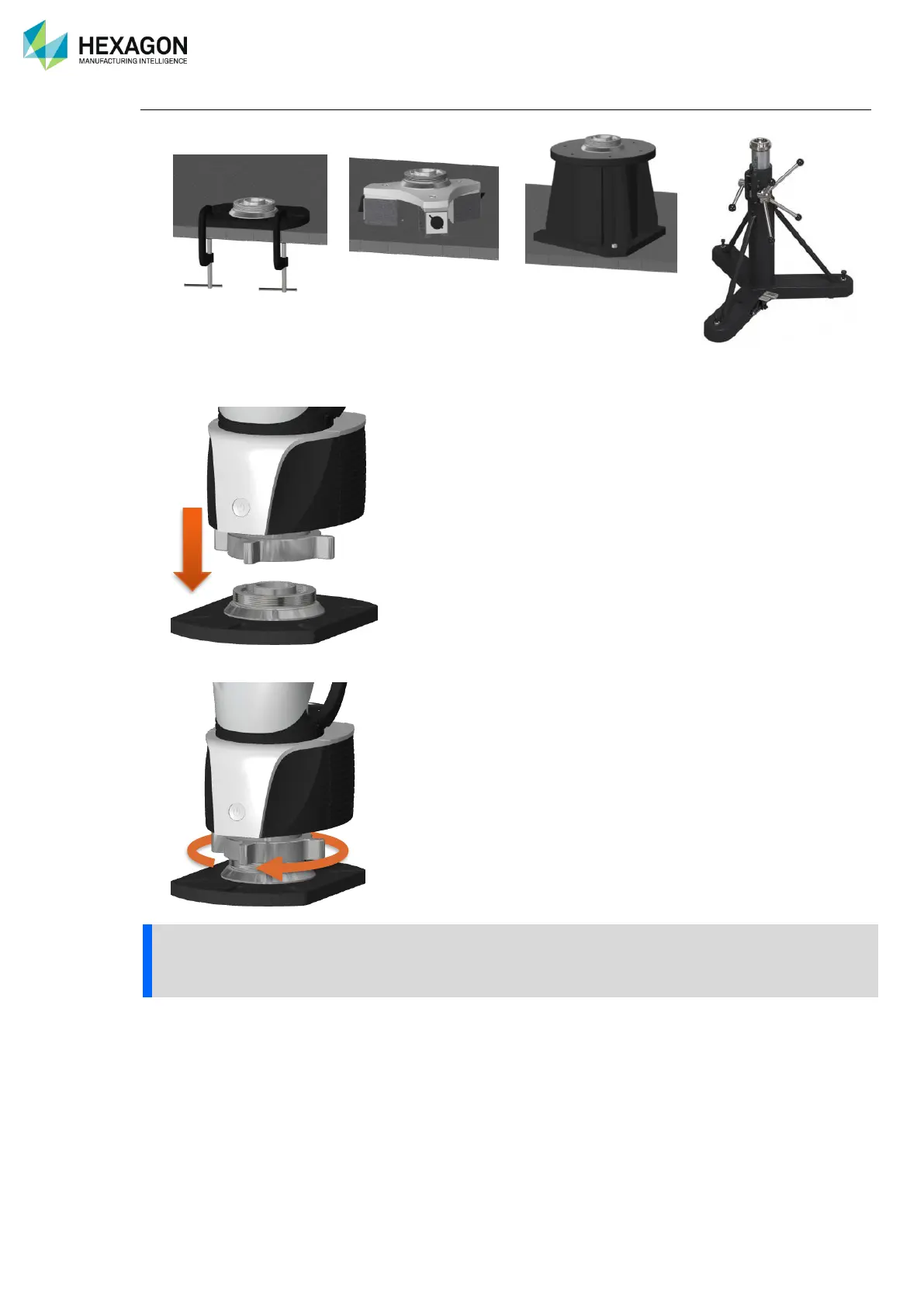

Installation

H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │87

Absolute Arm (2.0 to 4.5)

1. Place and fix the mounting base or the stand

2. Position the arm over the mounting ring

3. Tighten the mounting ring nut

NOTICE

It is very important that the nut is securely tightened to ensure the accuracy and stability of the arm. It is

also important to ensure the 6 screws on the mounting ring are well-tightened.
