Measure with the arm
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │161

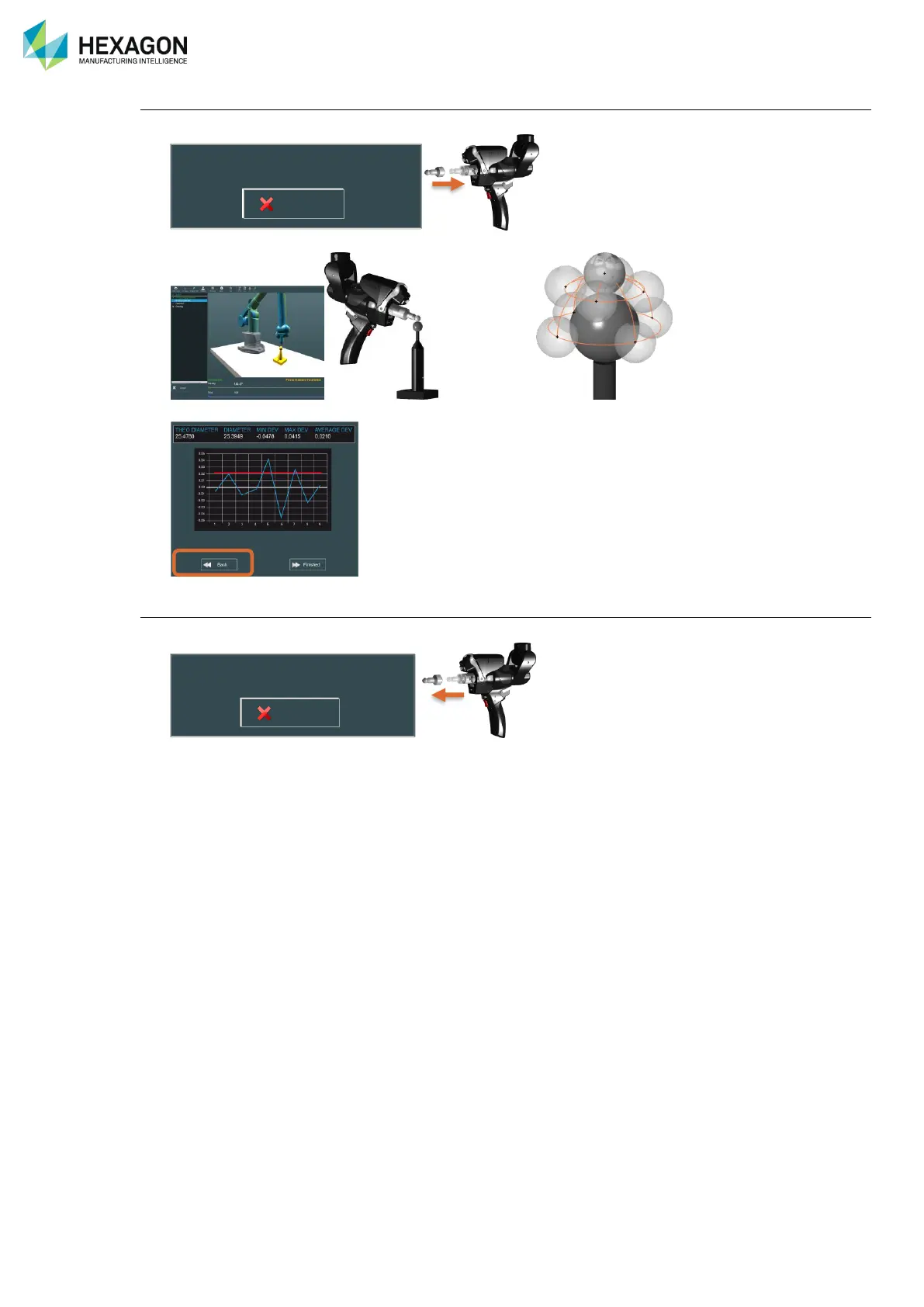

Reference Sphere
5. Insert 15mm Ref Probe
6. Take 9 points on sphere with 15mm probe
7. Check reference sphere results and click on “OK”
Use Scanner
8. Mount the scanner to align (Absolute Arm SE) or simply remove the reference probe (Absolute Arm SI)
9. Wait for the scanner to be ready: RDS automatically select an “Alignment” scanning profile with the
appropriate settings for the scanner sphere artefact.
Please plug in the reference probe
Cancel
Please plug in scanner to align
Cancel
