Hexagon Absolute Arm RS5 User Manual

Components description
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │55

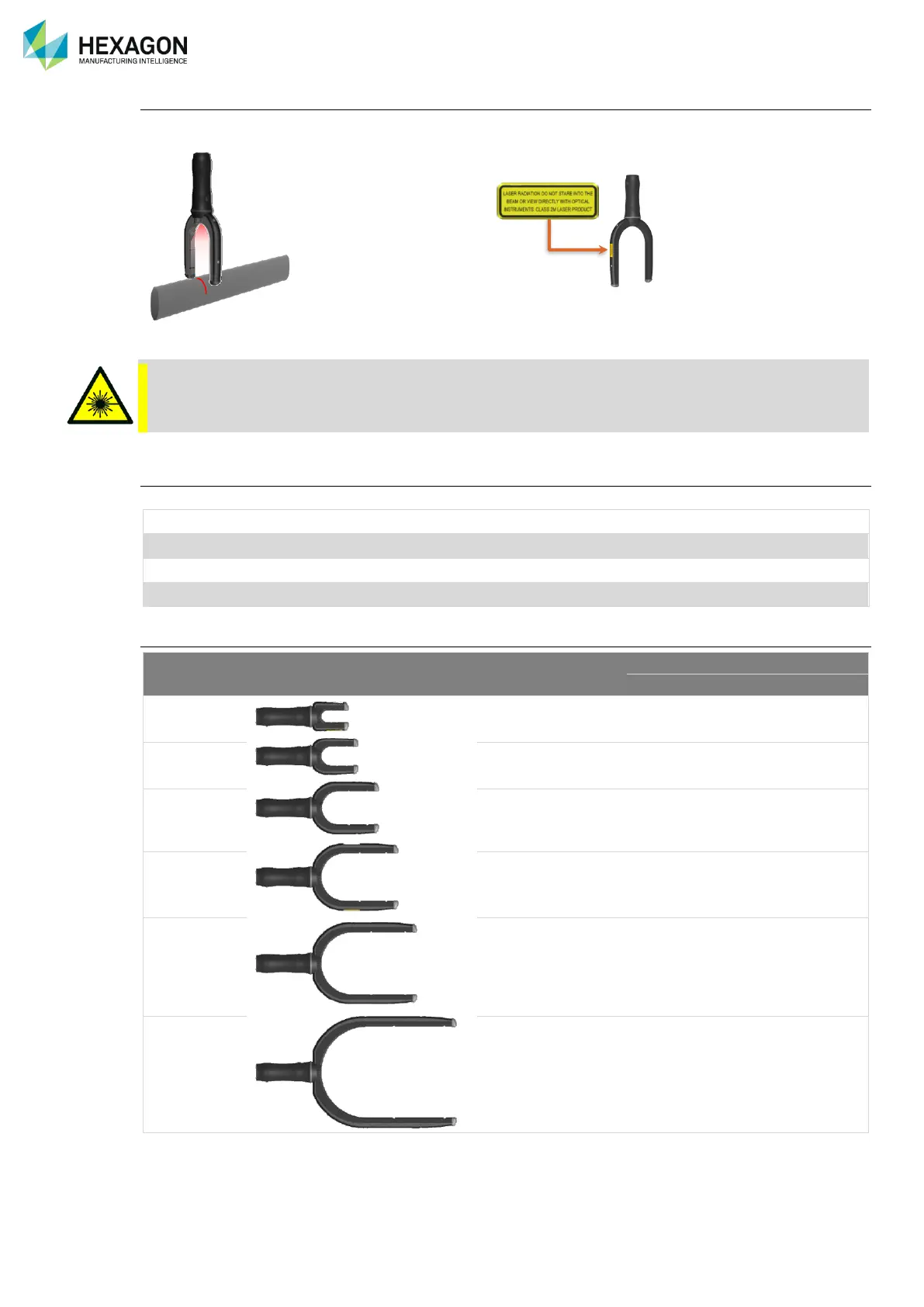

Laser guidance
A laser can be switched on, to guide the user about the location the point will be taken. Press on the laser
button to switch on: a laser is projected on the tube.
CAUTION
Laser Product Class 2M: Exposure toward the eye can result in eye injury
Pay attention not to expose the eye to the laser guide when laser is on.
Sounds:
When the beams are cut, beeps are emitted
• Beam1 is blocked down
• Beam2 is blocked down
• Beam1 is released down
• Beam2 is released down
• Beam1 is blocked up
• Beam2 is blocked up
• Beam1 is released up
• Beam2 is released up
Sizes of probes and tubes
Size
Recommended
tube diameters
Alignment artefact
Ø
Lg
1
12.5 mm
4-13 mm
(0.15-0.5”)
6.35 mm
(1/4”)
100 mm
2
25 mm
6-20 mm
(0.25-0.75”)
6.35 mm
(1/4”)
100 mm
3
50 mm
10-40 mm
(0.40-1.6”)
12.7 mm
(1/2”)
100 mm
4
75 mm
12-65 mm
(0.5-2.5”)
12.7 mm
(1/2”)
100 mm
5
100 mm
20-85 mm
(0.75-3.3”)
25.4 mm
(1”)
100 mm
6
150 mm
30-130 mm
(1.2-5.1”)
25.4 mm
(1”)
100 mm
