Hexagon Absolute Arm RS5 User Manual

Installation
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │88

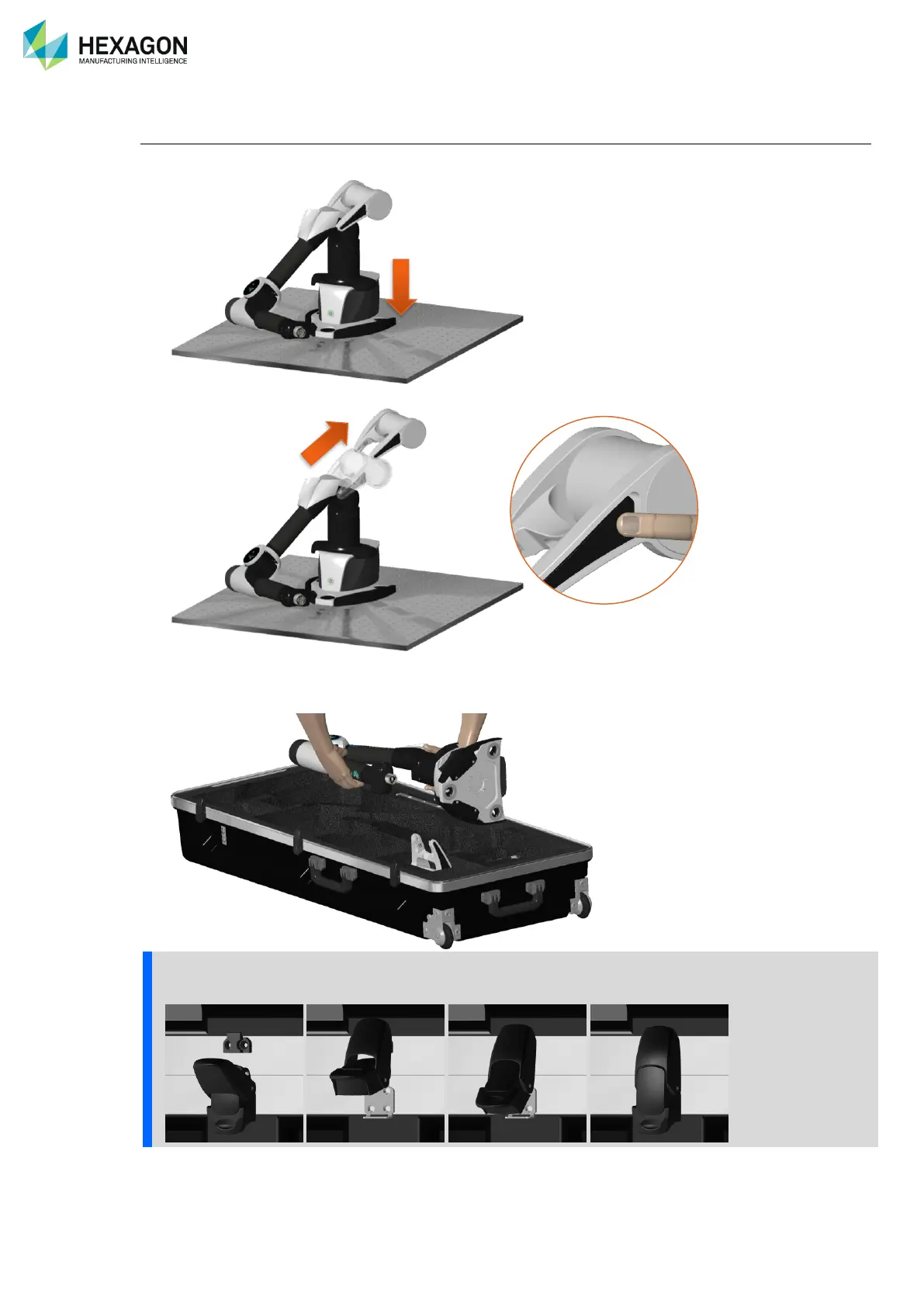

D.2.4 PACK THE ARM
Absolute Arm Compact (1.2)
1. Lay the elbow of the arm carefully on the work plane
2. With both hands, hold the counterweight and press on the Unlock button to release the counterweight
3. Place back correctly the counterweight in the case
4. Carefully hold the arm with both hands to place it in the case.
NOTICE
Don’t forget to close all the locks of the suitcase.
