Global sphere measurement

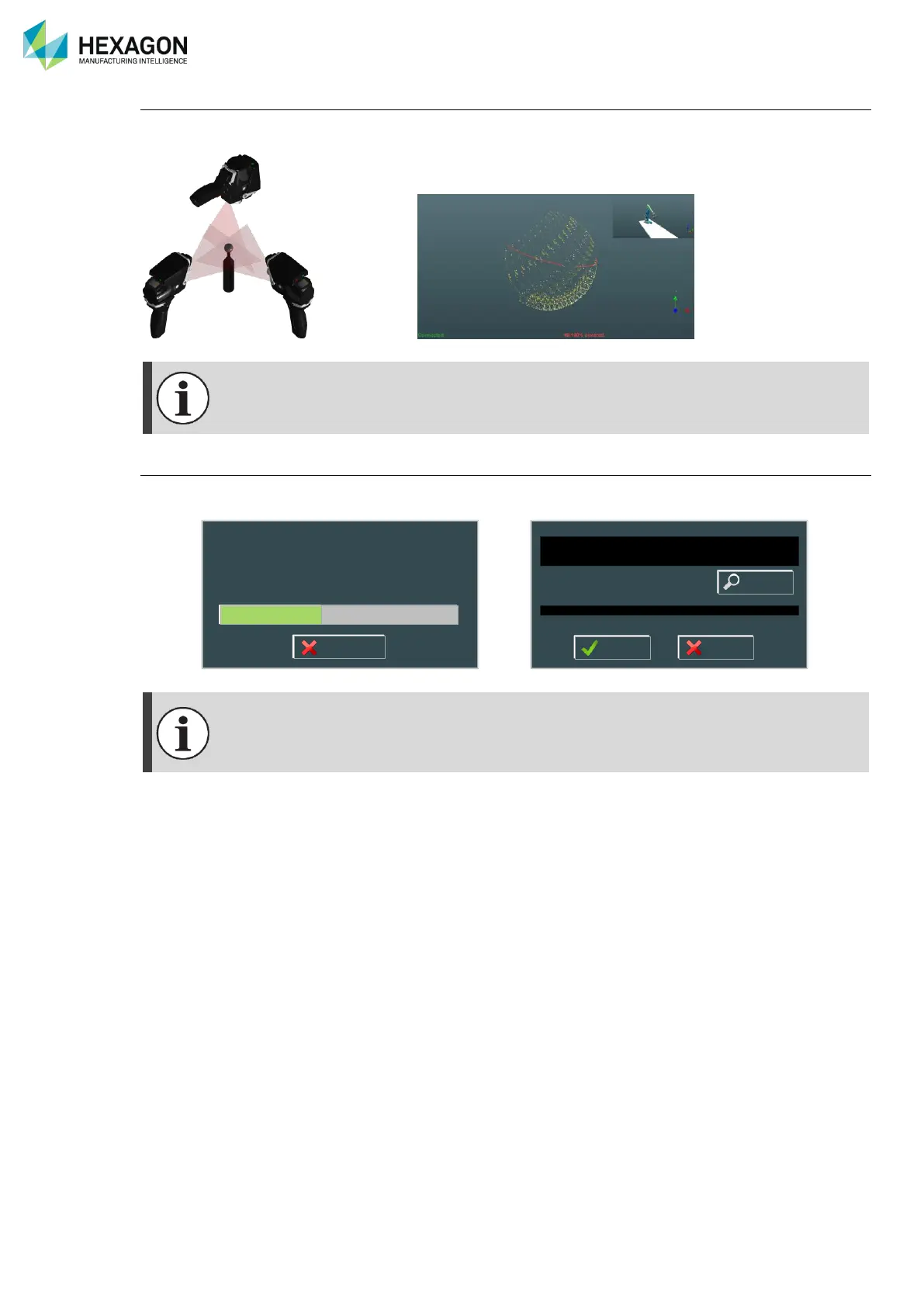

14. Digitize the whole sphere with the scanner: wait for the 85 % coverage at least to stop digitizing.
Validate by pressing on BP2 (right button).
It is still possible to continue scanning even once the covered is completed, to enhance the
quality of alignment, however, the calculation may be longer.
Calculation
15. After all the measurements, the calculation automatically starts.
At the end of calculation, click on yes.
The residual error is Least Squares value of distances divided by data set amount of points
(to have a comparable value independent of amount of points)
The report details are memorized in a “Probe Calibration Report.txt” file on
C:\Users\Public\Documents\Romer\RDS\CalibData.
Probe calibration is finished.
Residual deviation=0.019797
Do you wish to use calculated calibration ?
Please wait.
Step=9, Residual error=0.019797, Improvement=0.005339%
Cancel
Yes No
Report
