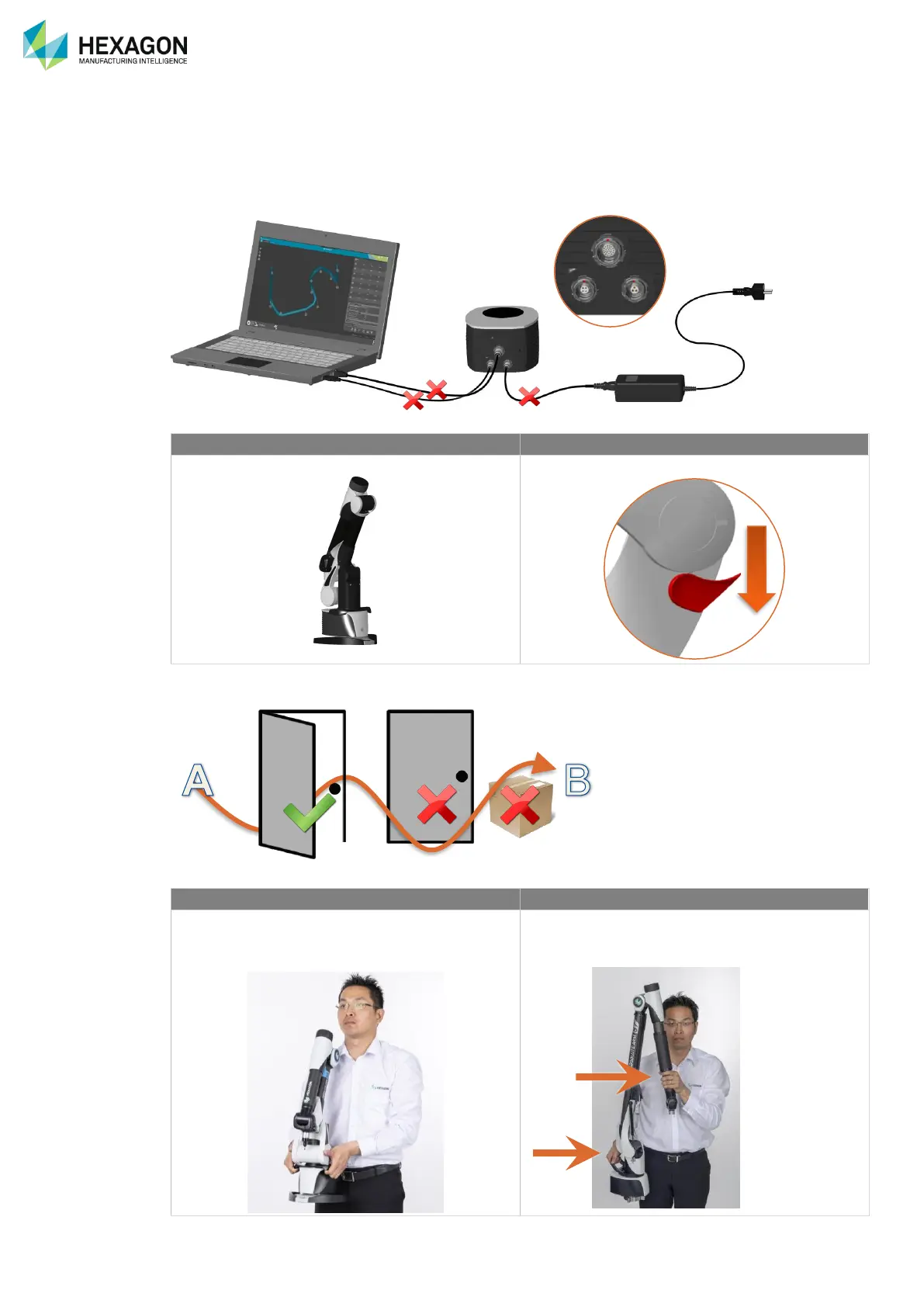

F.1.5 CARRYING THE ARM
When the arm needs to be moved from one place to another one, it is advised to place the arm in its carrying
case; however, for short distance displacements, the arm can be simply carried by hand.
1. Disconnect all the cables
2. Ensure that the arm is in the secured rest position
1.2 Compact arm
2.0 to 4.5 arms
Back rest position
SmartLock locked
3. Ensure that the way to the destination is clear (open doors, no obstruction…).
4. Hold the arm, respecting the same recommendations as for the installation.
1.2 Compact arm
2.0 to 4.5 arms
Hold the skirt of the arm with both hands.
Both hands must be used: one holding the base
handle, the other one holding the E tube of the
arm.
