Measure with the arm
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │148

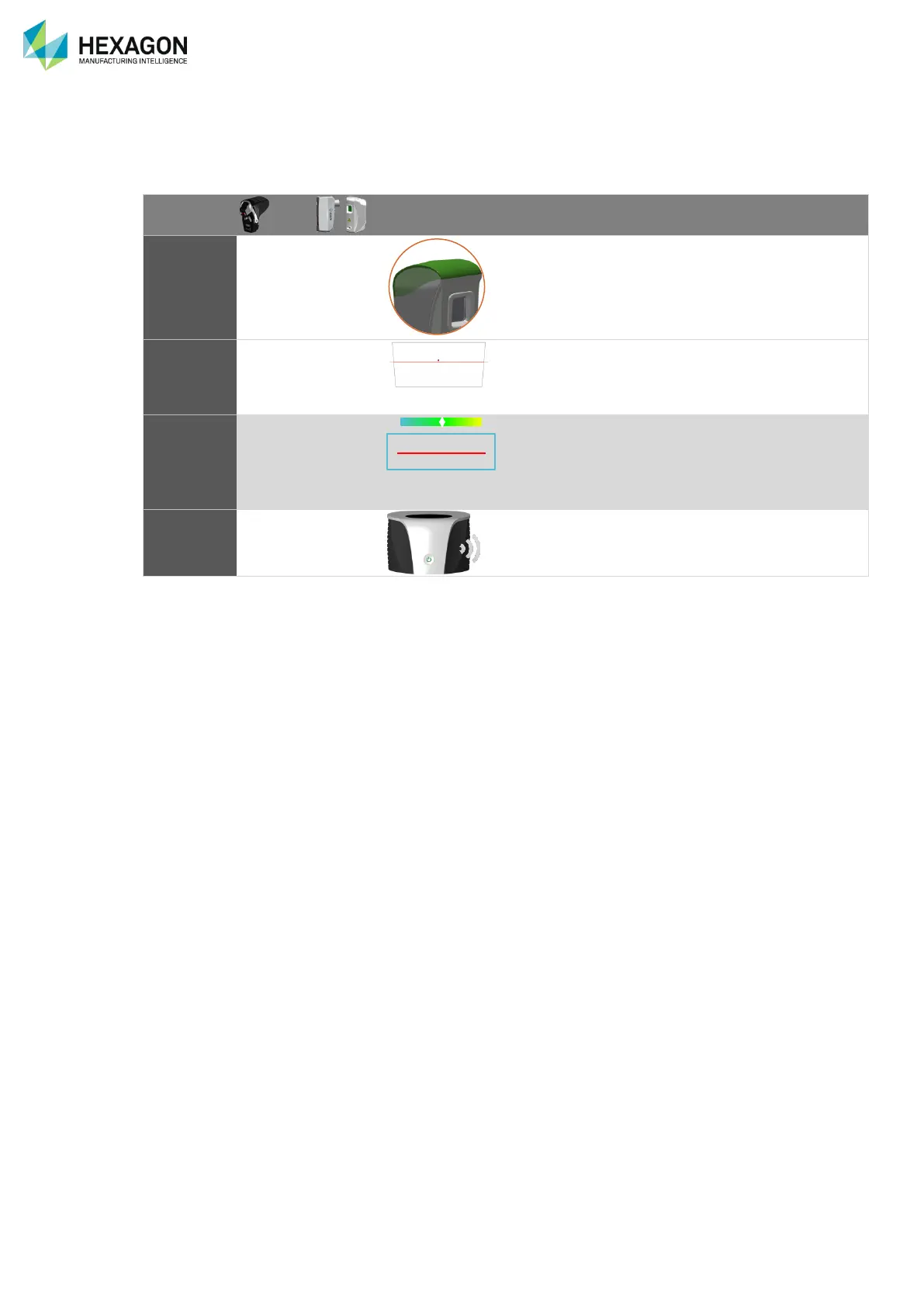

F.6.5 CAMERA DISTANCE
The scanners have a certain field if view inside which scan lines are visible; outside the camera doesn’t
see the laser line.
Several tools help to keep the best distance:
Description
Tip
Colour
indicator

A colour indicator on the
scanner
Keep it green
Centre
projection


A projected point or line
representing the centre
of the field of view onto
the surface
Align the laser line with
the point (or line)
RDS Bar
graph



A Bar Graph in RDS
Agent with the
representation of the
laser line
Keep the cursor in the
green area
Sound



The arm emits a sound
depending on the
distance
Keep a high-pitched
sound.
