H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │208

Circular magnetic base

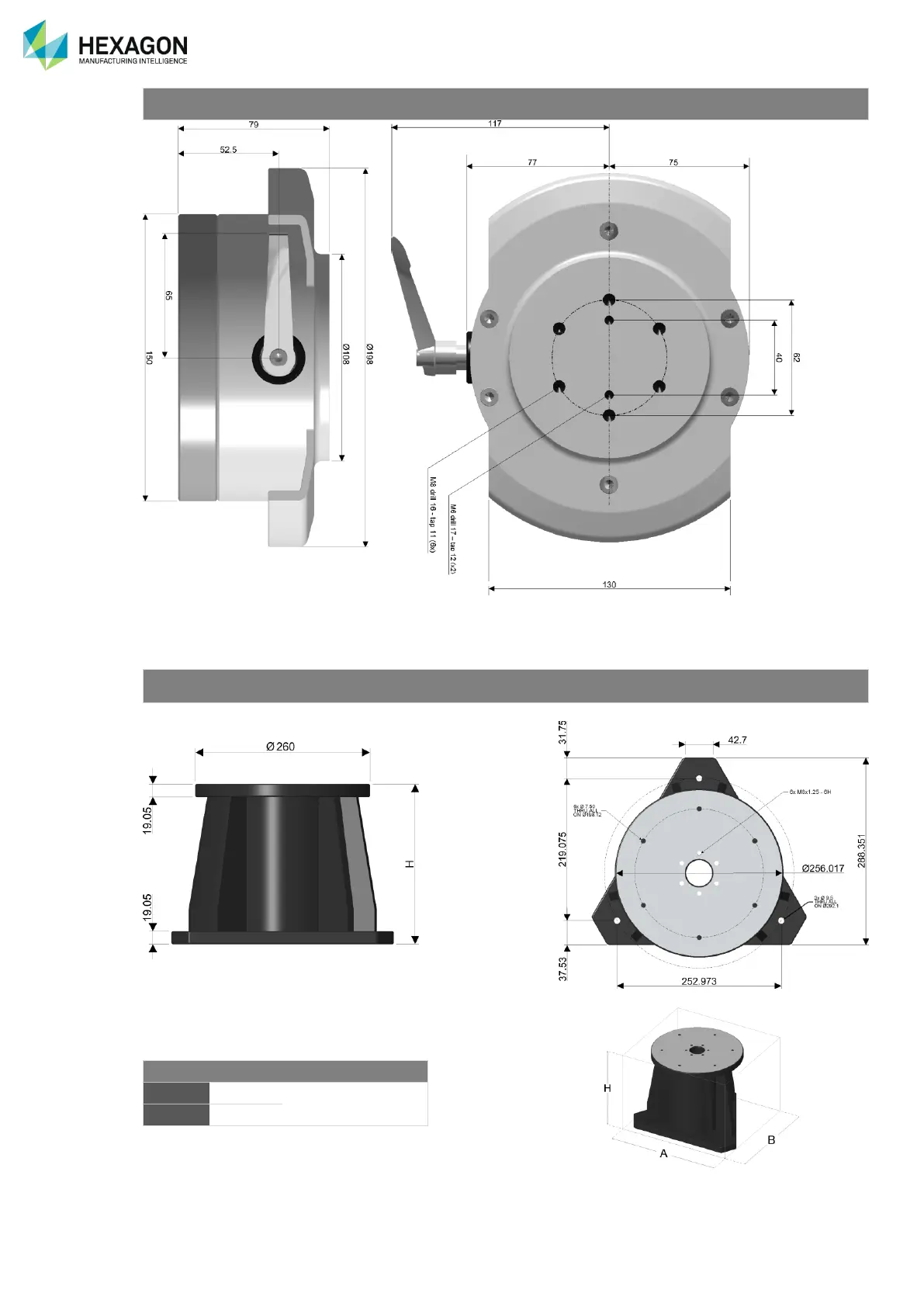

Fig. 51 : Circular magnetic base dimensions

Tube inspection arm raiser

Raiser

Small

237.3

331

308

Tall

487.30

Fig. 52 : Tube inspection arm raiser dimensions
