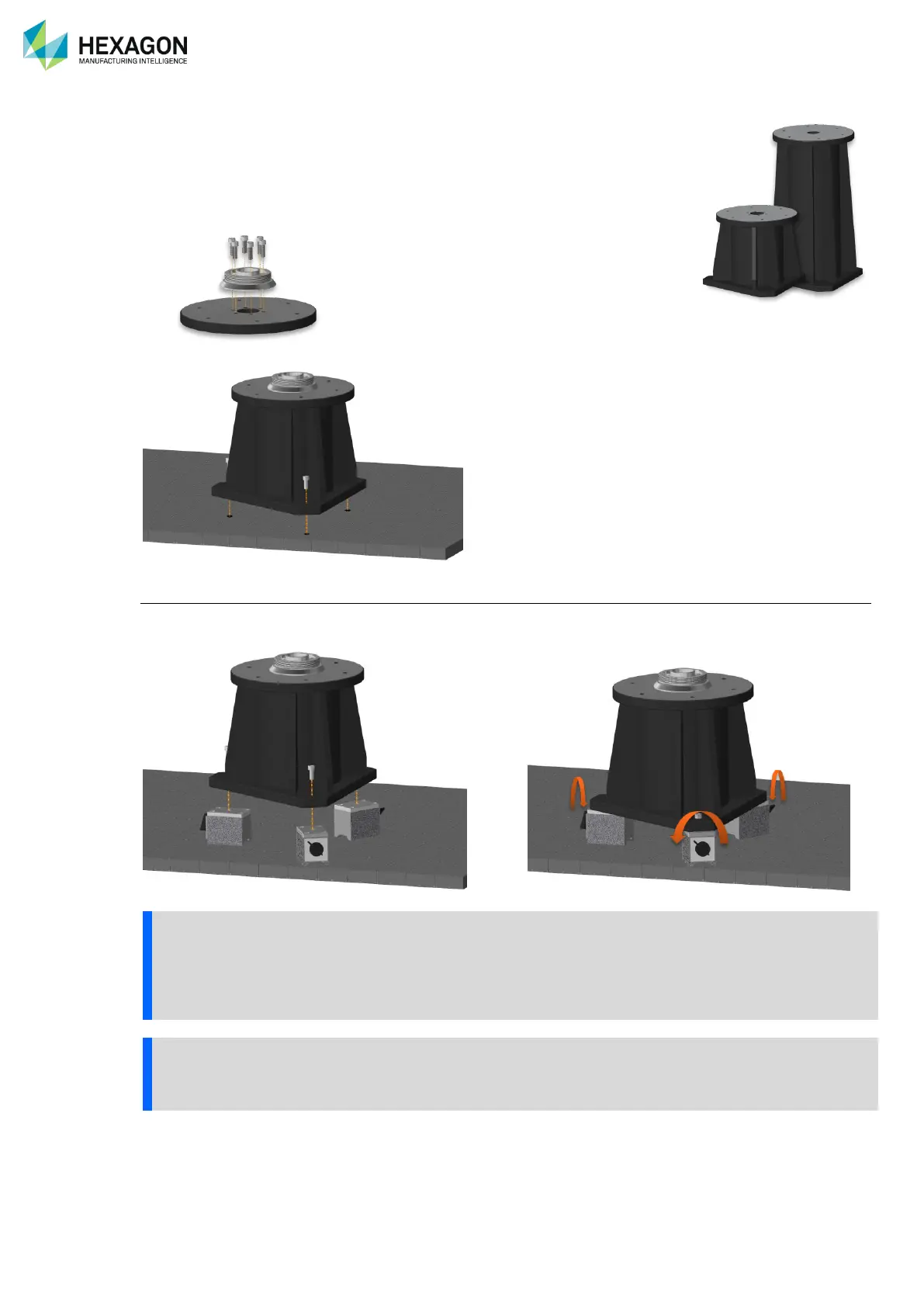

D.1.7 SPECIAL RAISERS
The Mounting ring can be installed on a height extension, to get the arm on a higher place.
Those raisers are available in 2 sizes (250mm and 500mm):
1. Fix the mounting ring on the raiser
2. Fix the raiser on the work plane through the 3 holes at the base of the raiser
Raisers on magnets
Three magnets can be fixed on the base of the raiser, to be able to place and lock it on a magnetic
worktable.
Low quality steel work floor: Loss of accuracy
A low-quality steel support (bad flatness) or any support that may result in a bad quality magnetism can
result in instability of the arm, and inaccurate measurement
Always ensure that the support or surface on which the raiser is fixed can guarantee a good stability.
When fixing, the Mounting nut, the steel plate or the magnets, ensure that all the screws are tightened
securely.
