Measure with the arm

H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │119

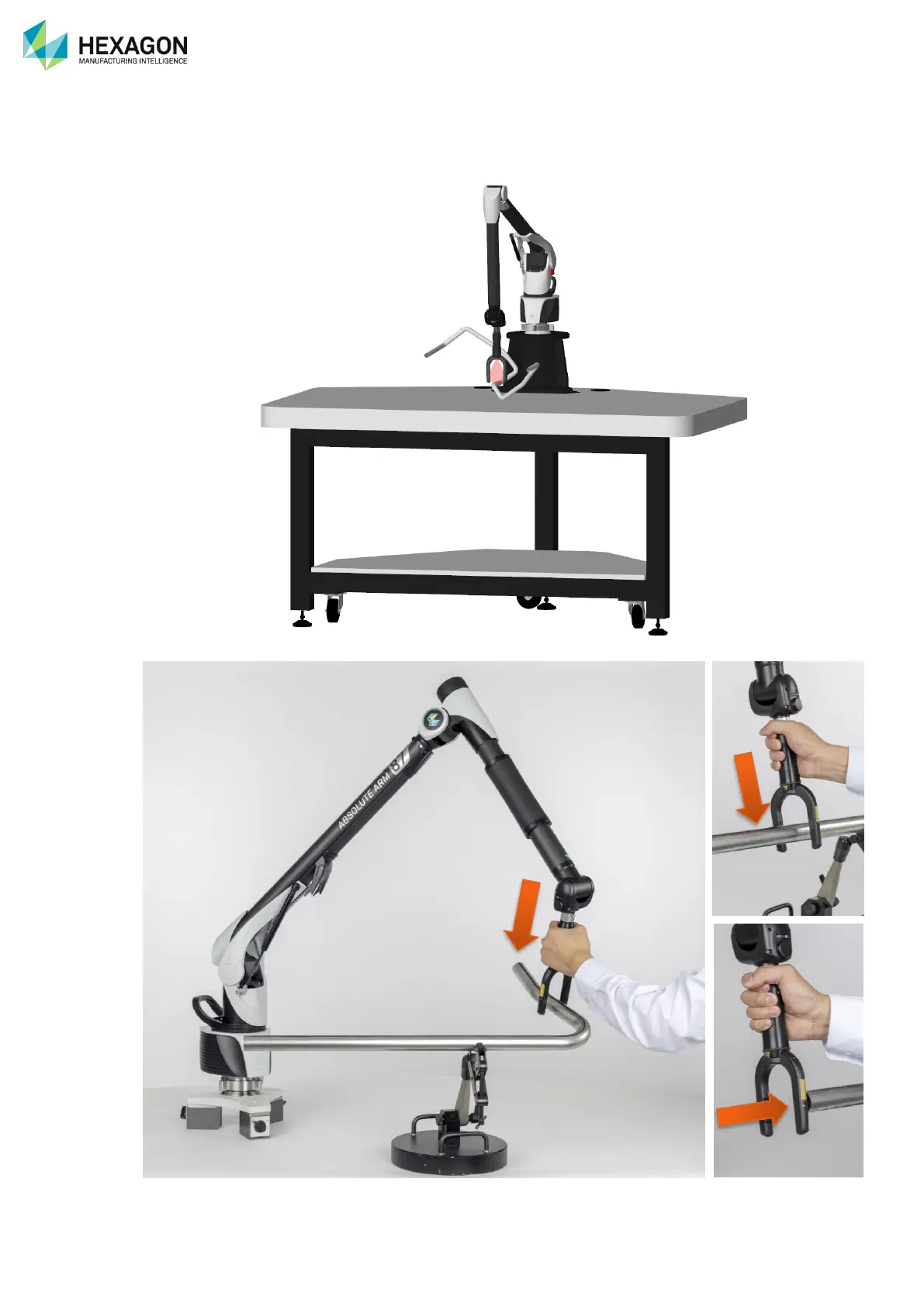

F.1.4 TUBE INSPECTION ARM HANDLING

The tube inspection configuration is designed to keep the elbow up, then facilitate the measurement of the

tube following easily the orientation of the axis of the tube. Simply hold the tube probe itself and move it

down onto the tube.
