Hexagon Absolute Arm RS5 User Manual

Components description
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │25
Machine reference

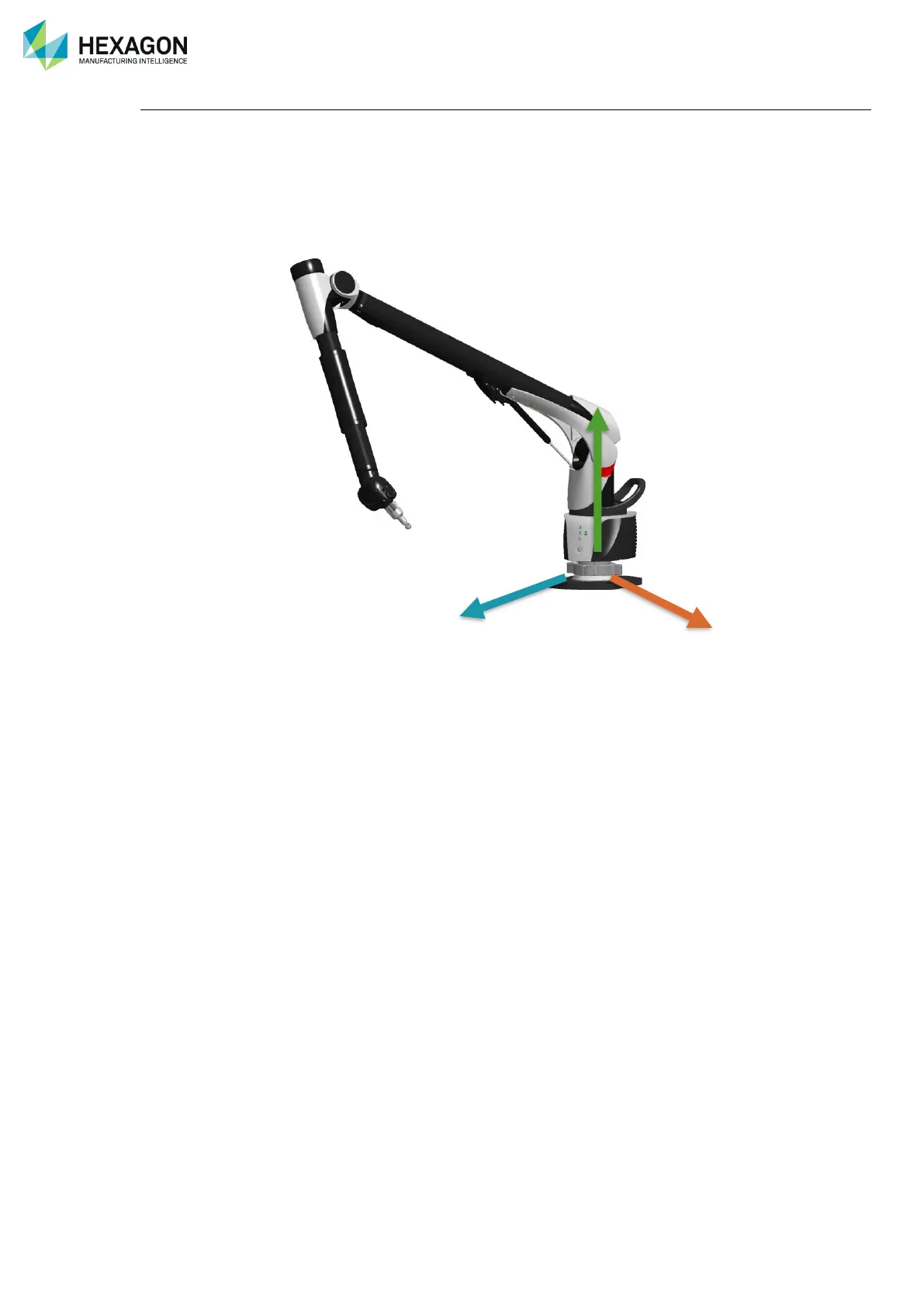

The arm sends points (for touch probing, tube measurement or laser scanning) with 3D coordinates which
are based on its own coordinate system. The reference origin and axes are the following:
• Origin: located on the A axis of the arm, at the table level.
• X axis is pointing toward the front of the arm (on/off button)
• Y axis is pointing toward the left side of the arm
• Z axis is pointing toward the top of the arm (along the A axis of the arm)
X
Y
Z
