Measure with the arm
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │123
Activate / deactivate the remote mouse:
• Put and keep F axis at its mechanical stop
• Rotate E axis about 90°.
The arm remote mouse settings (buttons and switch on/off mouse) can be configured. Please
refer to RDS User manual.

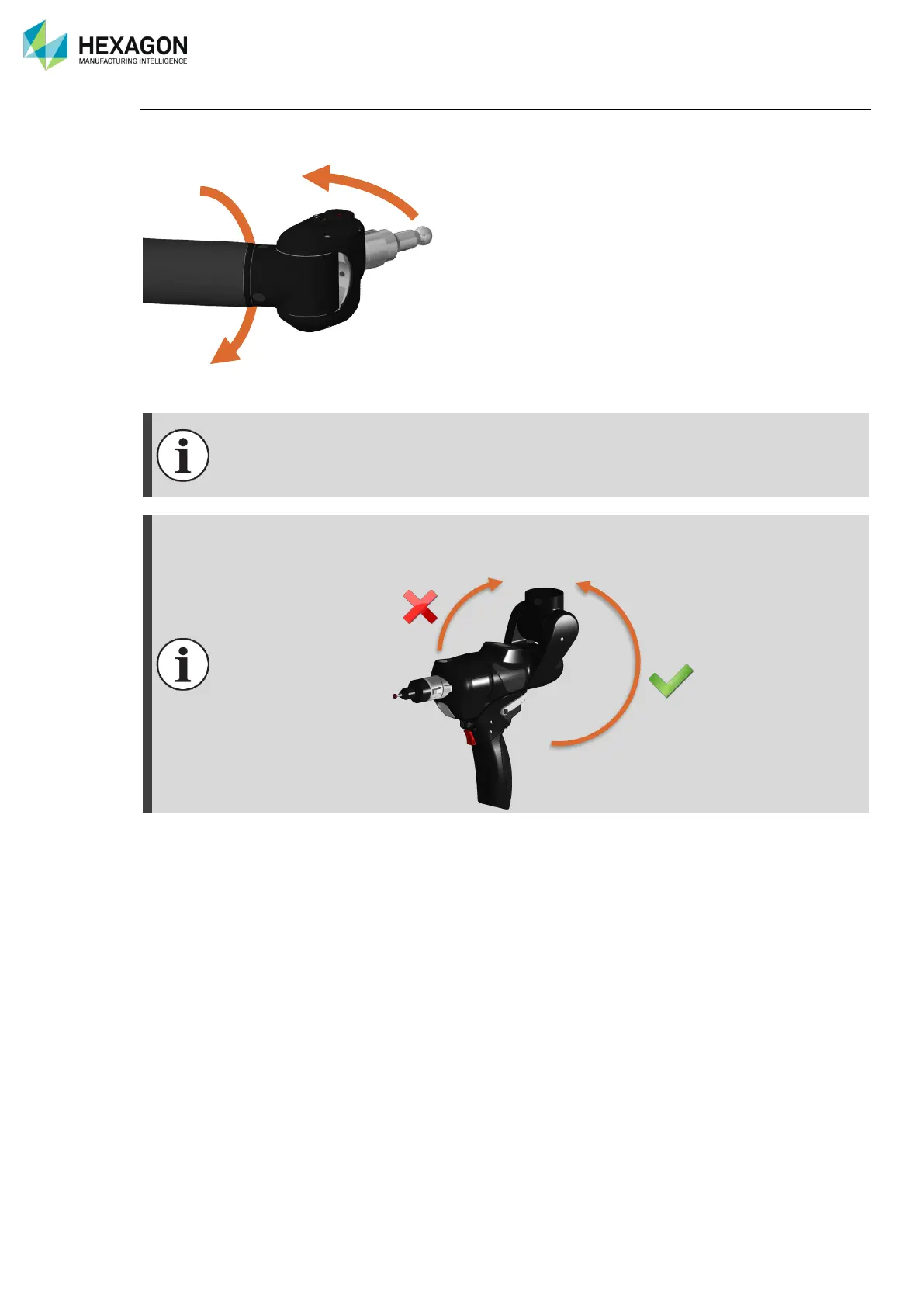

On 7-axes arms, as for the 6 axes, to reactivate the remote mouse, the F axis must reach its
mechanical stop. Due to the 7-axes wrist, the mechanical stop of F axis can be reached only
one side from the back:
