Hexagon Absolute Arm RS5 User Manual

Measure with the arm
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │162
Field measurement

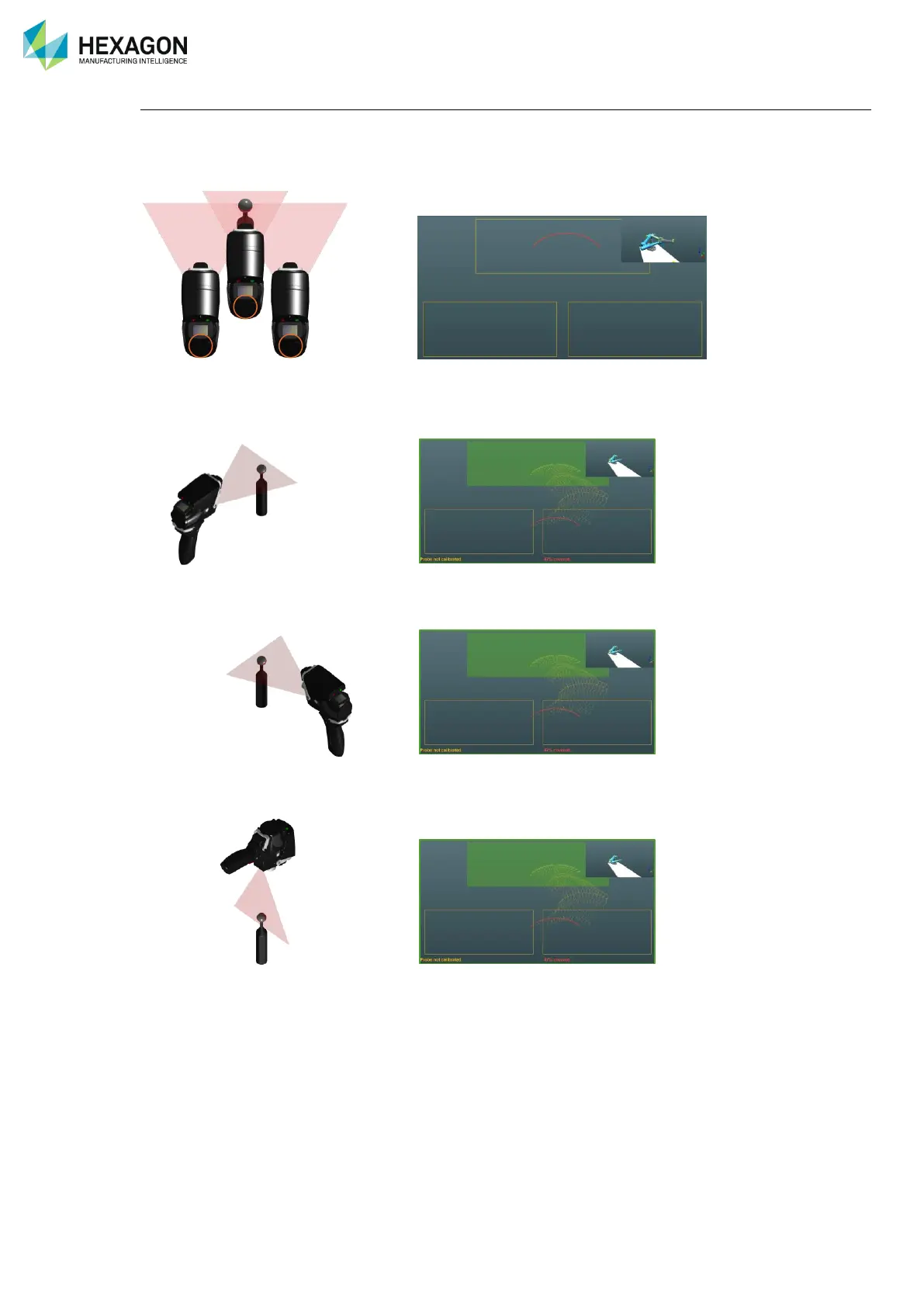

10. For each of the 3 orientations of the scanner, scan the sphere to cover the 3 target squares:
• 1 near centred position (#1)
• 1 far left position (#2)
• 1 far right position (#3).
11. Position the scanner horizontally, at 0°, and scan, covering the 3 target squares.
Validate by pressing stopping the scan (right button).
12. Position the scanner horizontally, at 90°, and scan, covering the 3 target squares.
Validate by pressing stopping the scan (right button).
13. Position the scanner vertically, at 0°, and scan, covering the 3 target squares.
Validate by pressing stopping the scan (right button).
1
3
2
1
2
3
