G.3 MOUNTING RING KIT (1.2 SERIES - OPTION)
The Mounting Ring kit allows to change the standard fixed plate of the 1.2 series arms by a standard
Mounting nut and thus to install the arm on any support containing a Mounting Ring.
NOTICE
The operations to install the Mounting Ring kit, must be done with precautions, avoiding any damage
on the arm.

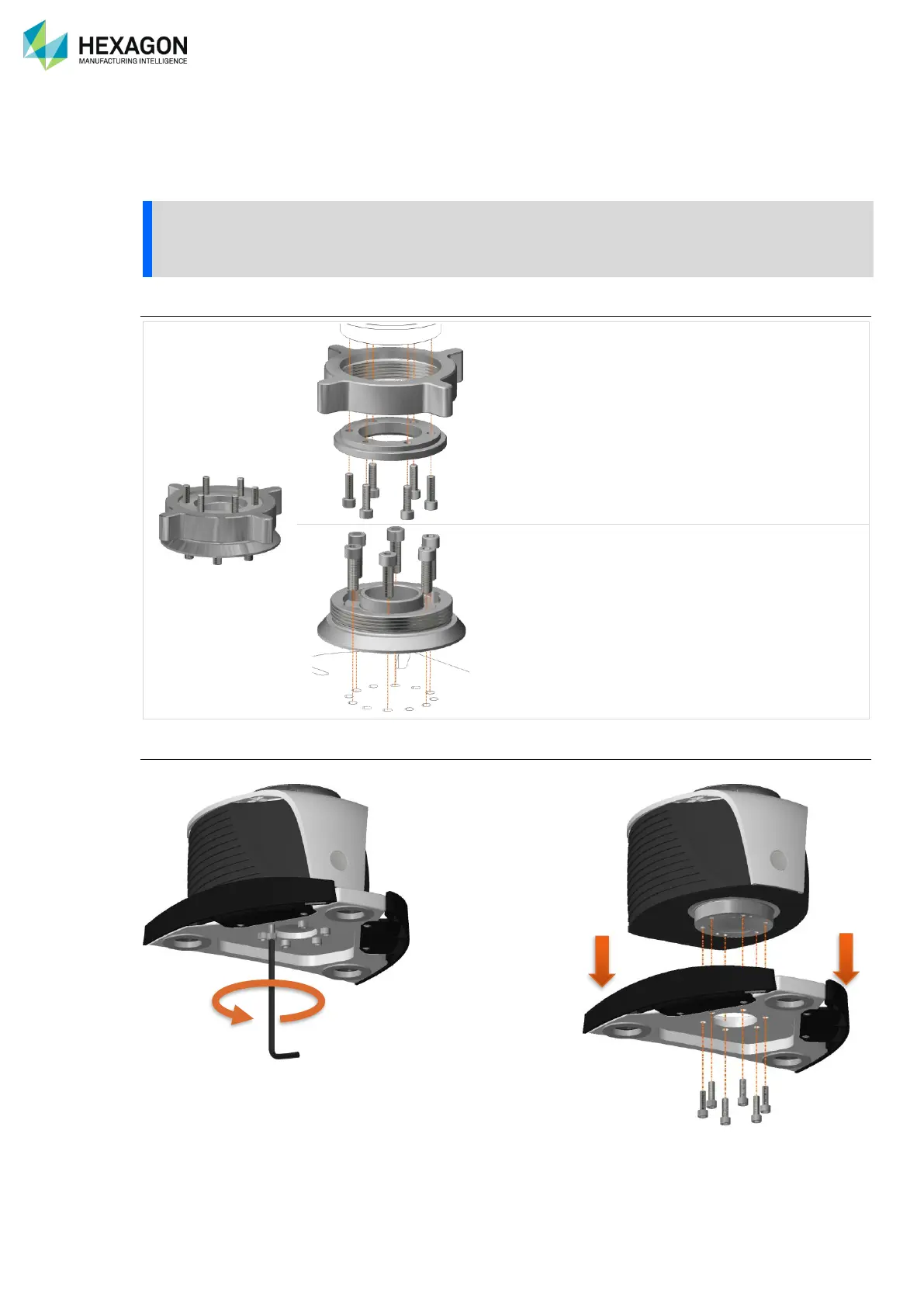

Description of the Kit
Mounting Nut: the upper side to install under the arm
at the place of the fixed plate
Mounting Ring: the lower side to install on the support
Setup
1. Remove the 6 M6-BTR screws under the plate to remove it
