Hexagon Absolute Arm RS5 - Mount the Probe on the Arm

Components description
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │56

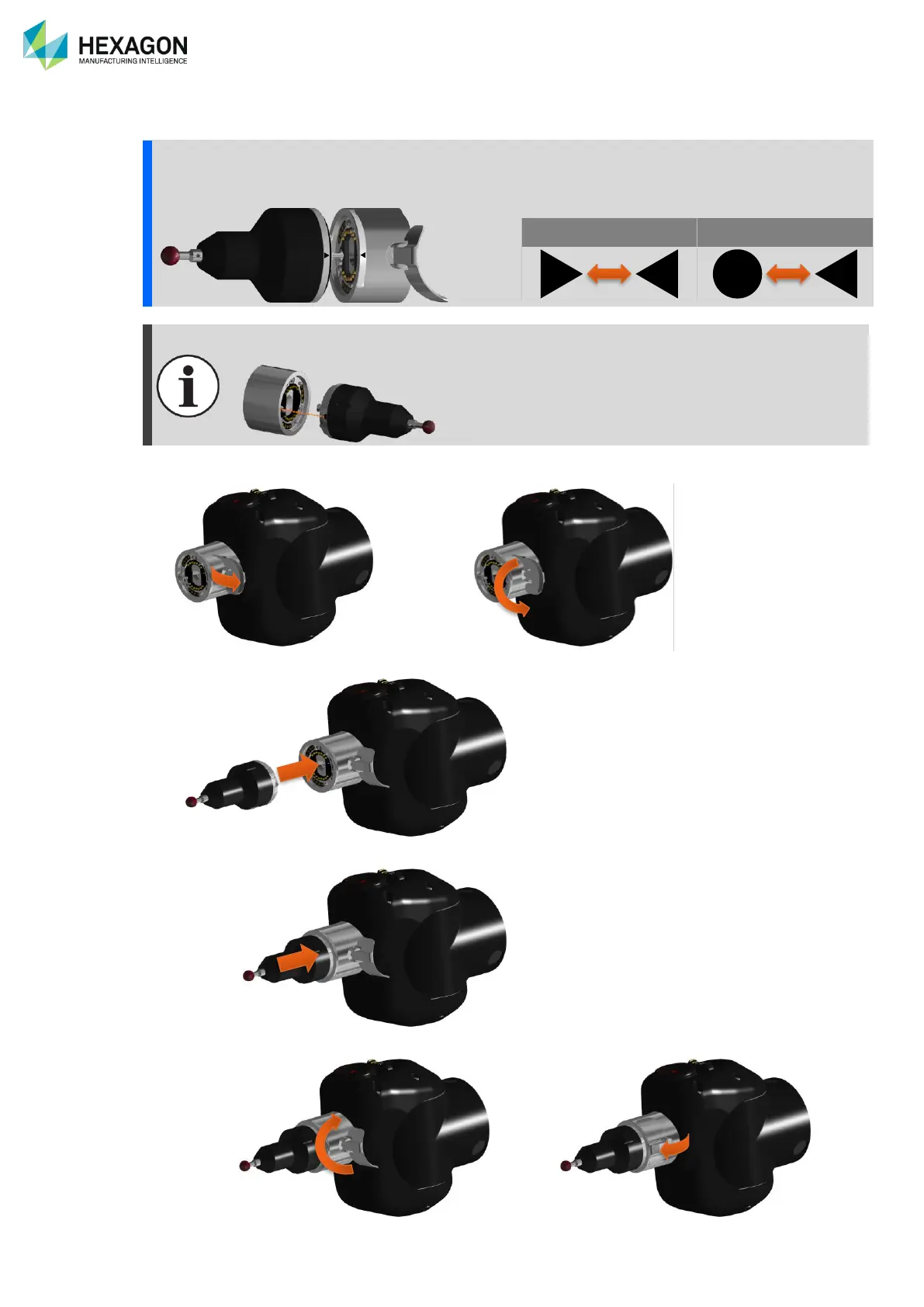

B.6.3 MOUNT THE PROBE ON THE ARM
NOTICE
The probe must be mounted with the correct orientation: align the symbols of the probe and the TKJ
connector.


Legacy probes may not have the shaped symbols. In such case, align the semicircle notch
at the opposite of the triangle shaped symbol on the TKJ connector.
1. Release the lever and unlock the TKJ connector
2. Approach the probe and check the orientation
3. Install the probe in the socket
4. Lock the probe and close the lever
