Hexagon Absolute Arm RS5 User Manual

Measure with the arm
H00007091 - Absolute Arm User Manual │Version 5.2.0 (2019-03-07) │144

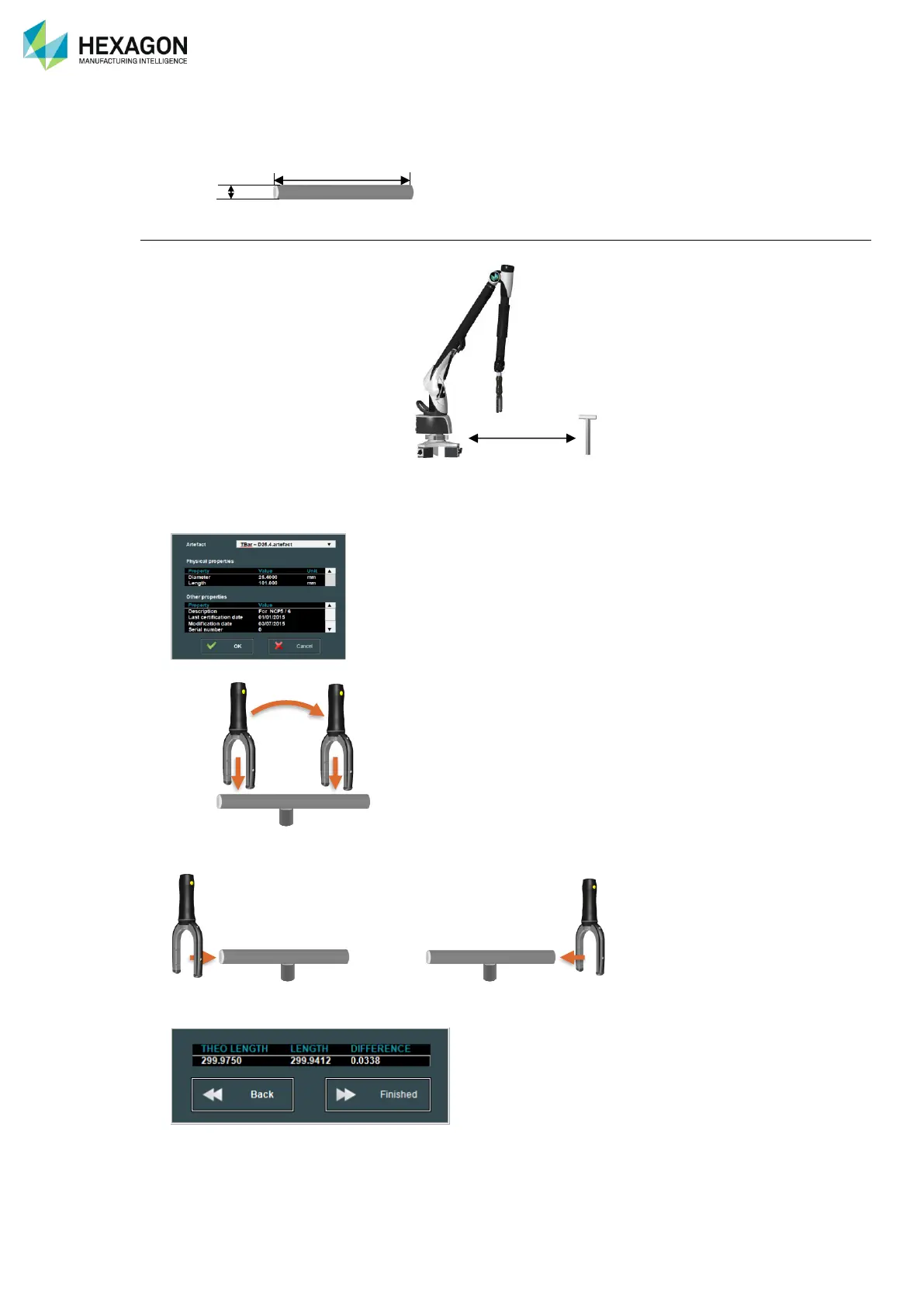

F.5.3 TUBE PROBE VERIFICATION
Tube probes (NCP) should be checked on a straight tube artefact, with a constant and known diameter,
with ends perfectly perpendicular to the axis of the cylinder, and with a known horizontal length.
Preparation
1. Place and fix the tube artefact in front of the arm.
2. Run RDS Data collector, in the Diagnostic scripts, select “NonContact probe - Quick Check - Double
mode”.
3. Select the artefact and / or enter the diameter and length of the T-bar.
4. Measure the 1
st
side of the straight then the 2
nd
side
5. Measure the 1
st
end of the tube then the 2
nd
one.
6. RDS displays the measured length: check the deviations according to the specifications.
Ø
L
